Ignition Input, Door Locks and Exterior Lamps Output

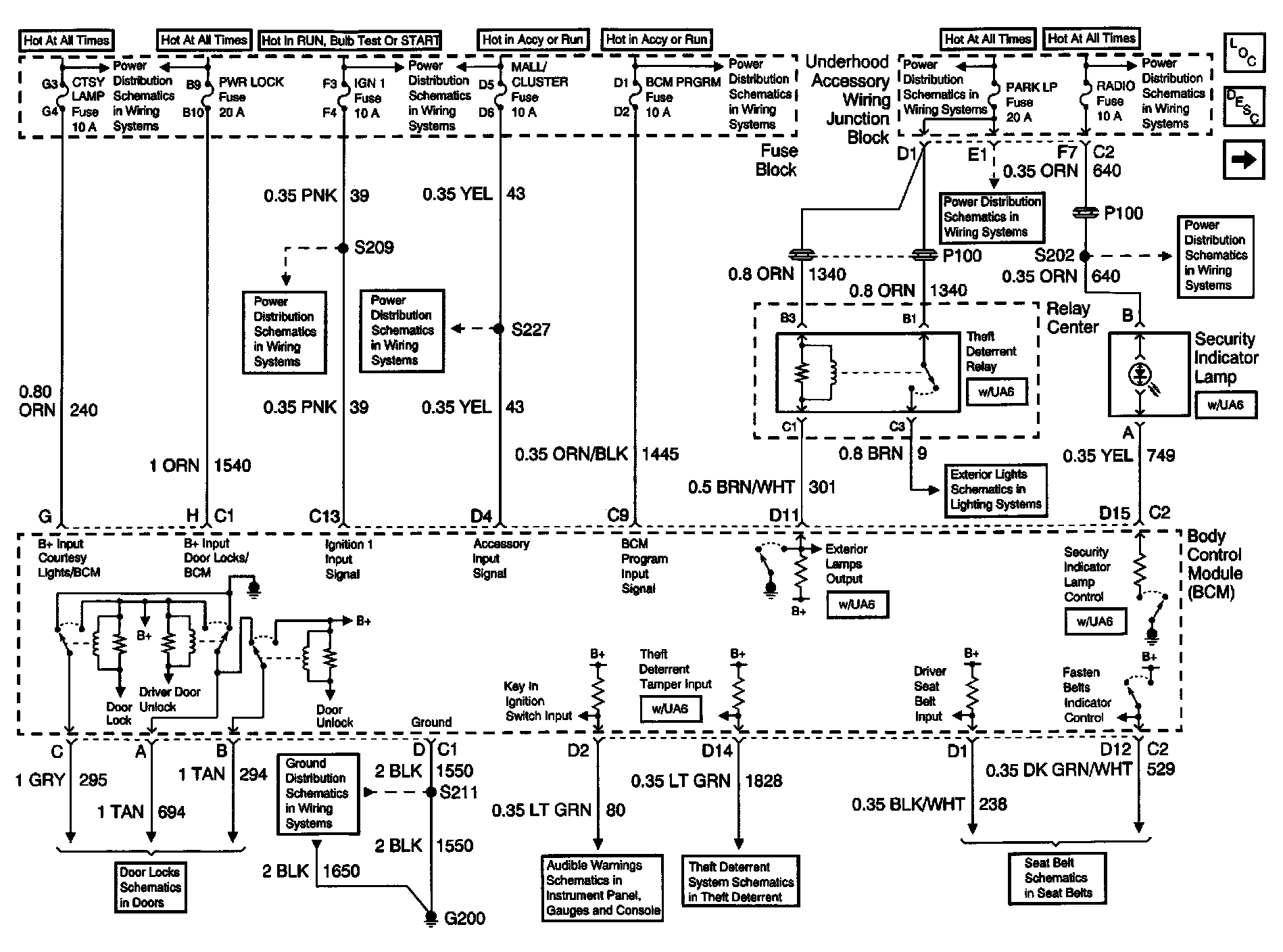

Body Control Module Schematics (BCM: Ignition Input, Door Locks, Exterior Lamps Output):
