A/C Pressure Switch, TPS, MAP, ECT and IAT Sensors

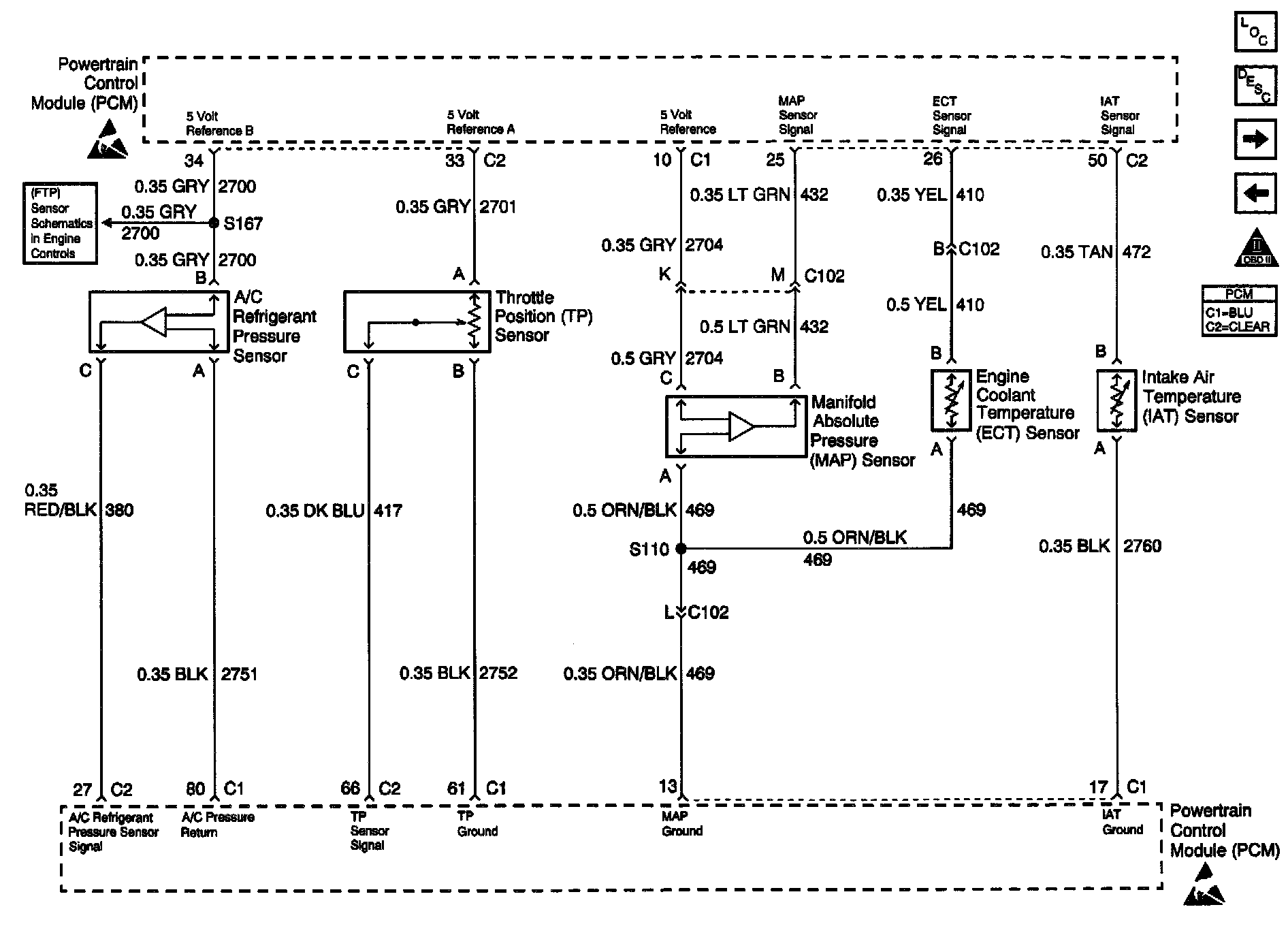

Engine Controls Schematics: Engine Data Sensors, A/C Refrig Press, TP, MAP, ECT, IAT:
