Heated Oxygen Sensor 1 (HO2S 1)

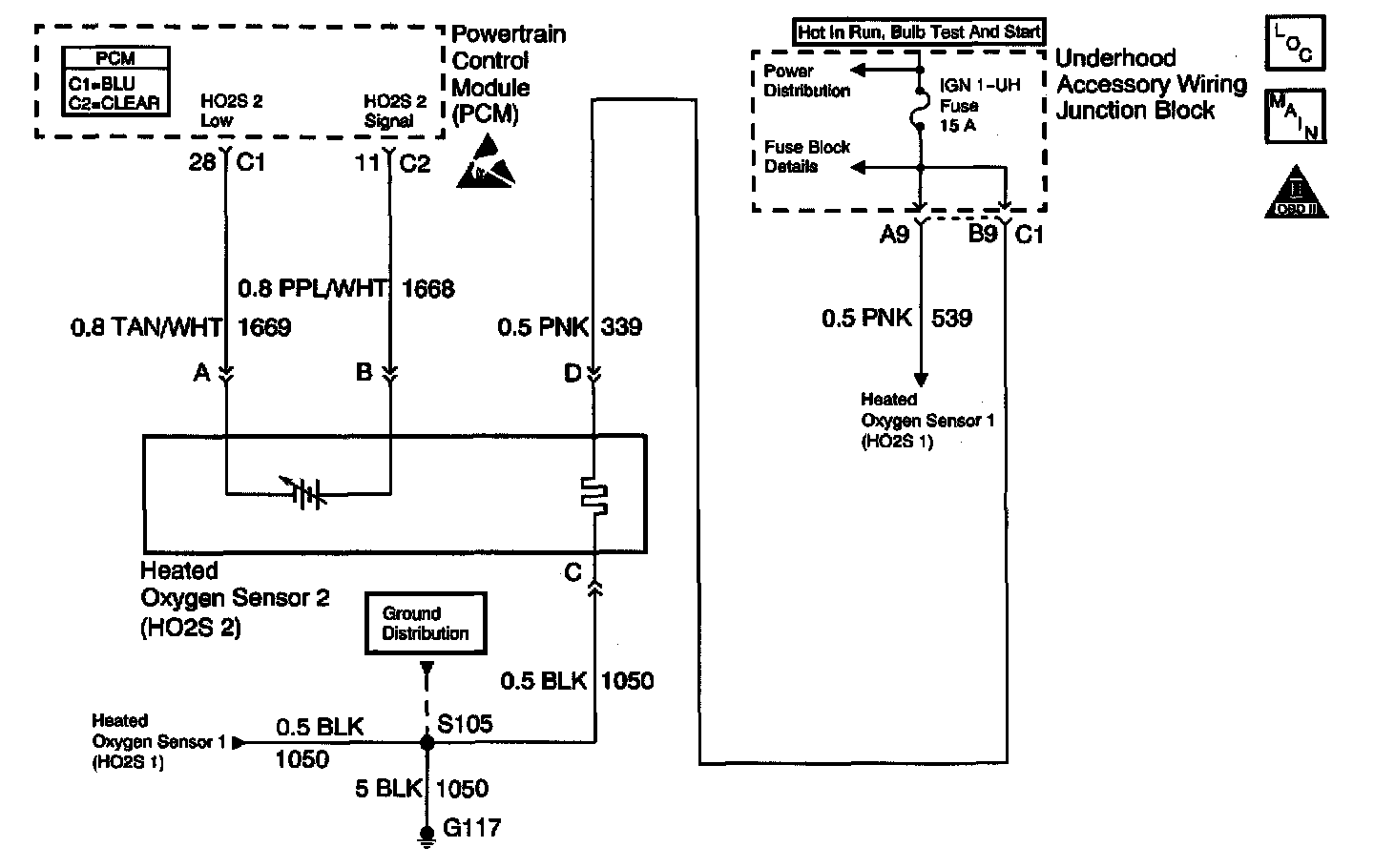

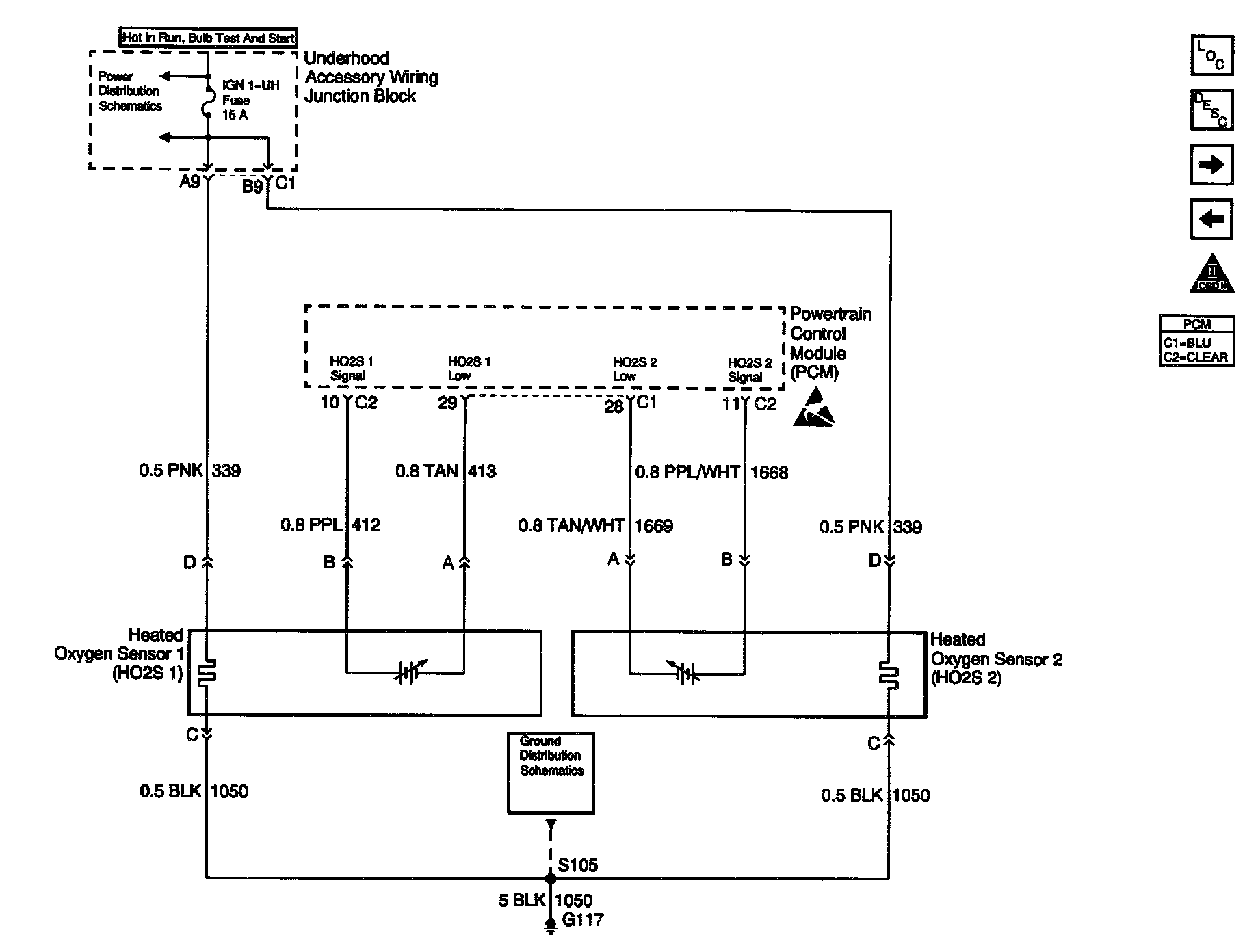

Engine Controls Schematics: Engine Data Sensors, MAF, HO2S1, HO2S2:



Schematic:
