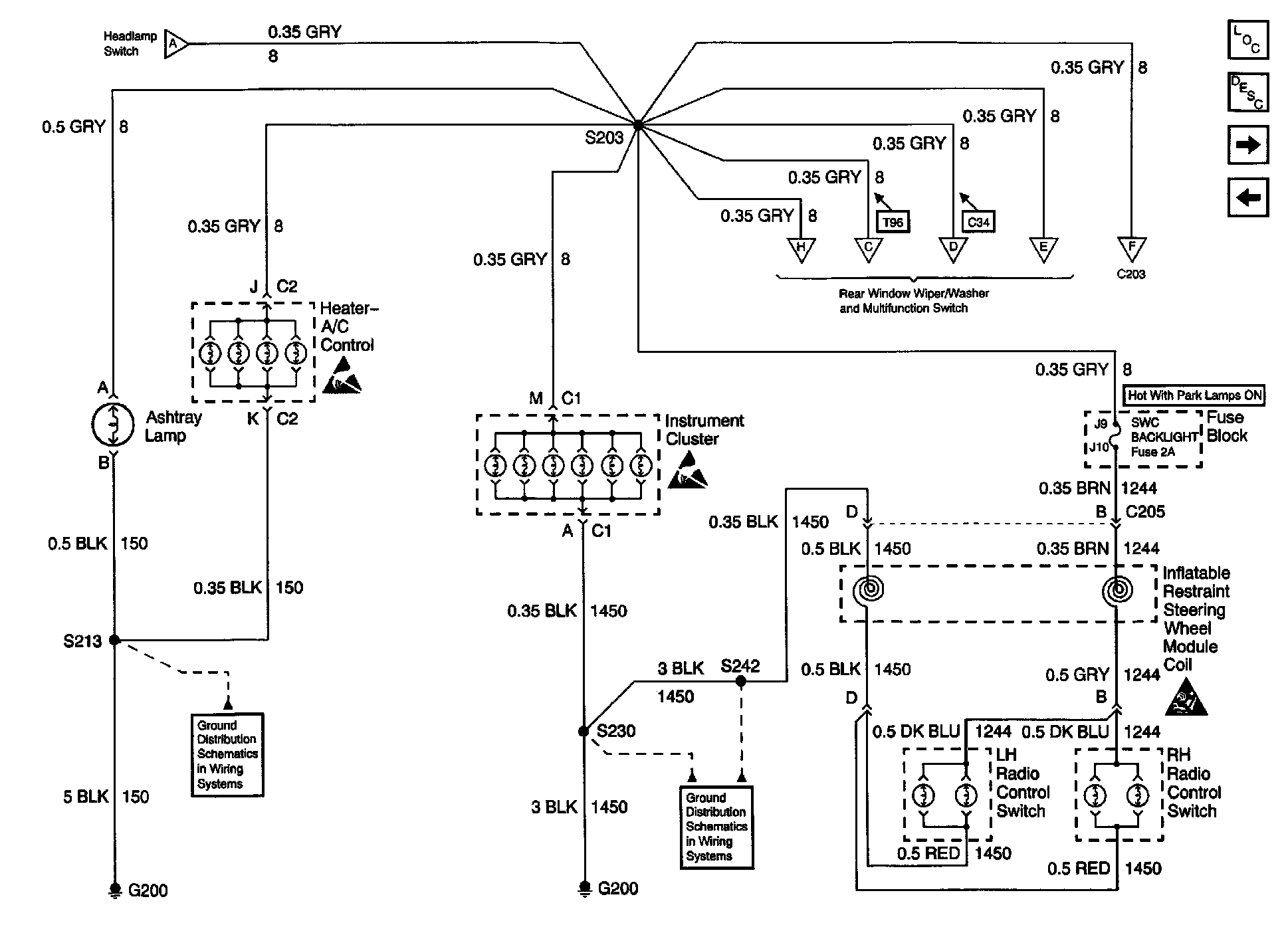

Heater-A/C Control Switches and Instrument Cluster

Interior Lights Dimming Schematics: Heater-A/C Control Switches And Instrument Cluster:
