Stoplamp Switch, Center High Mounted Stop Lamp

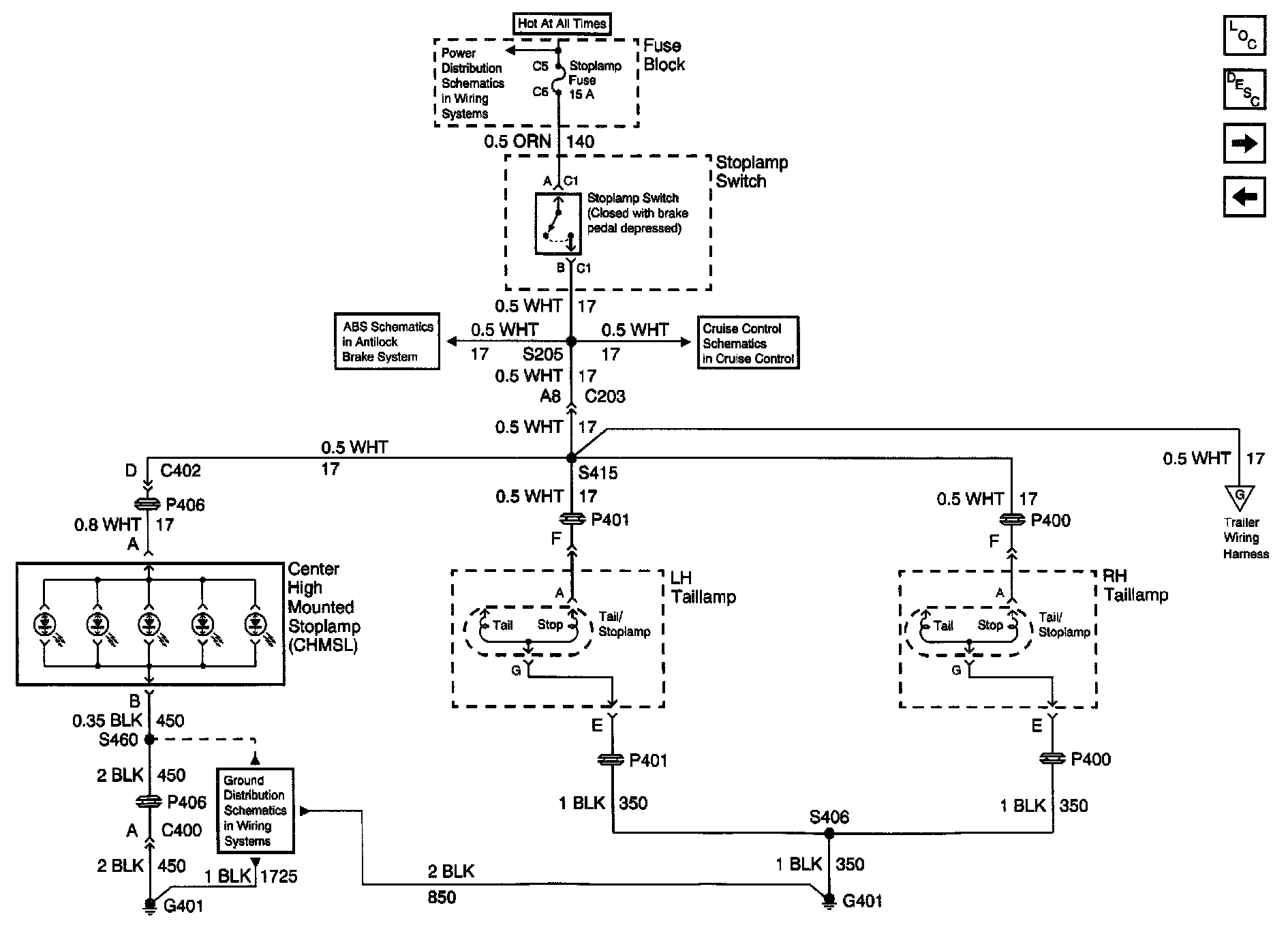

Exterior Lights Schematics (Domestic): Stoplamp Switch, Center High Mounted Stop Lamp:
