Hazard Lamp/Turn Signal Flasher, Turn Signal Switch
Hazard Lamp/Turn Signal Flasher, Turn Signal Switch

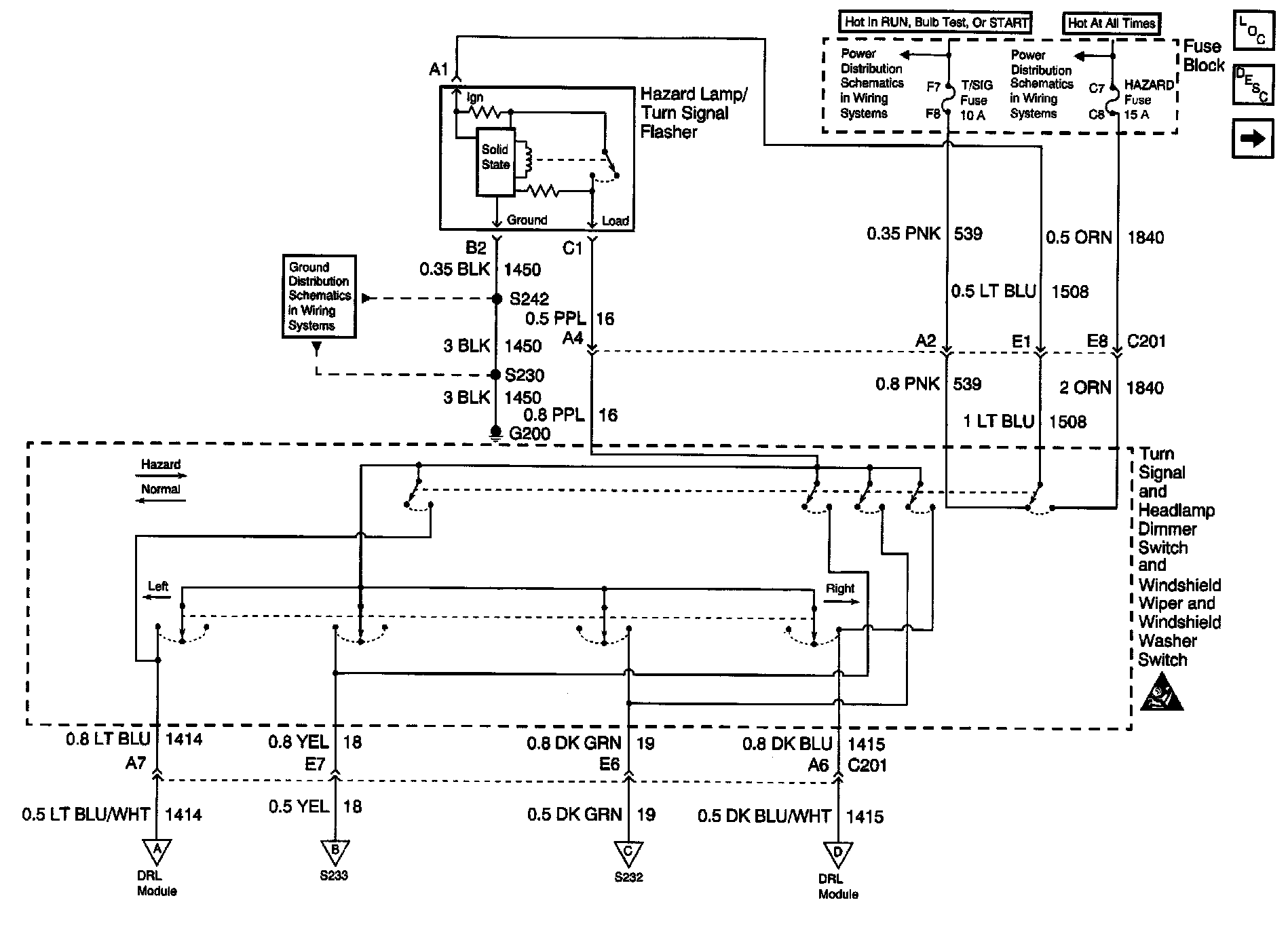

Exterior Lights Schematics (Domestic) (Hazard Lamp/Turn Signal Flasher, Turn Signal Switch):
