DRL Ambient Light Sensor, DRL Control Module

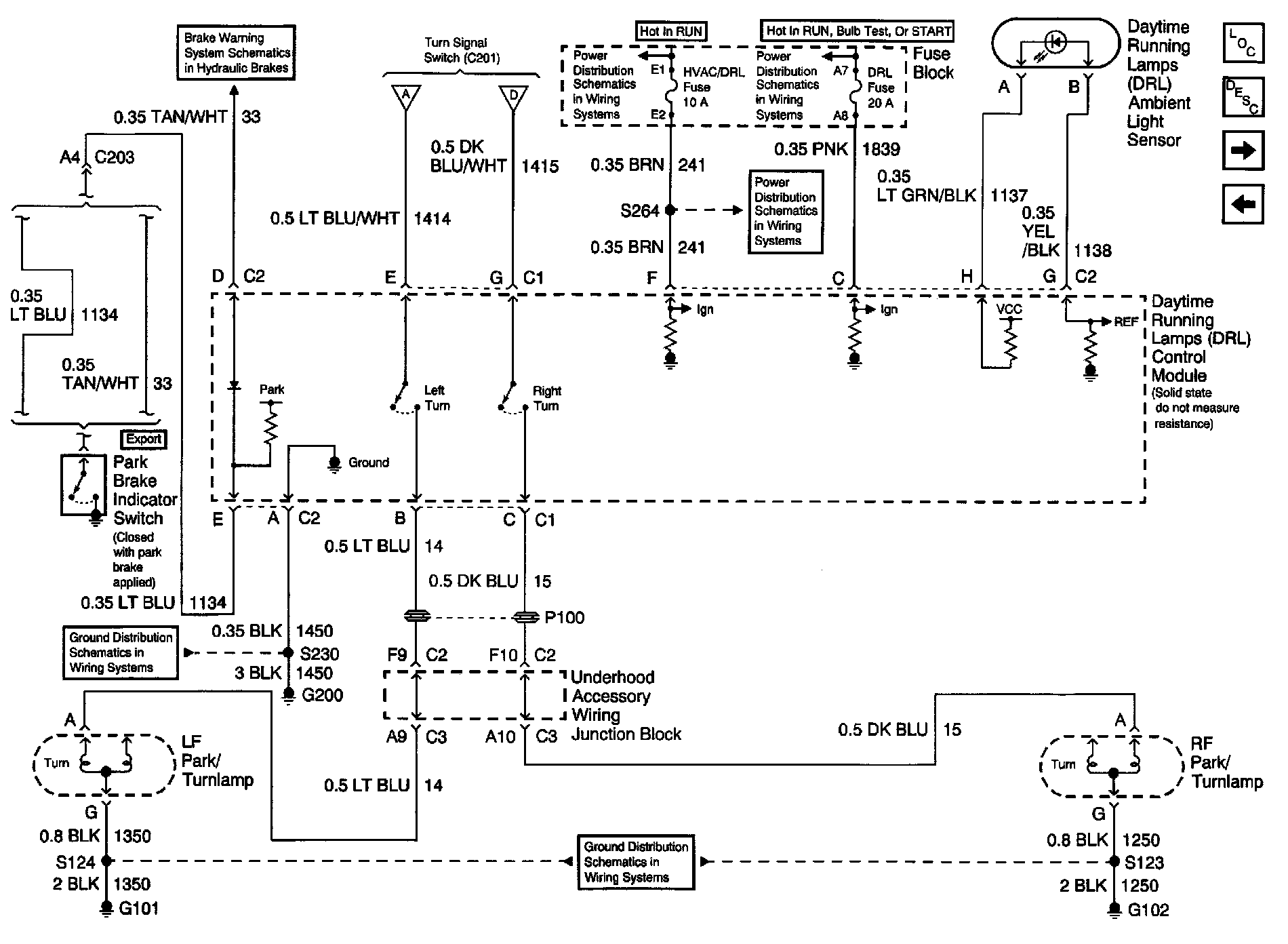

Exterior Lights Schematics (Domestic): DRL Ambient Light Sensor, DRL Control Module:
