Power, Ground Class 2 Data Line, Gauges

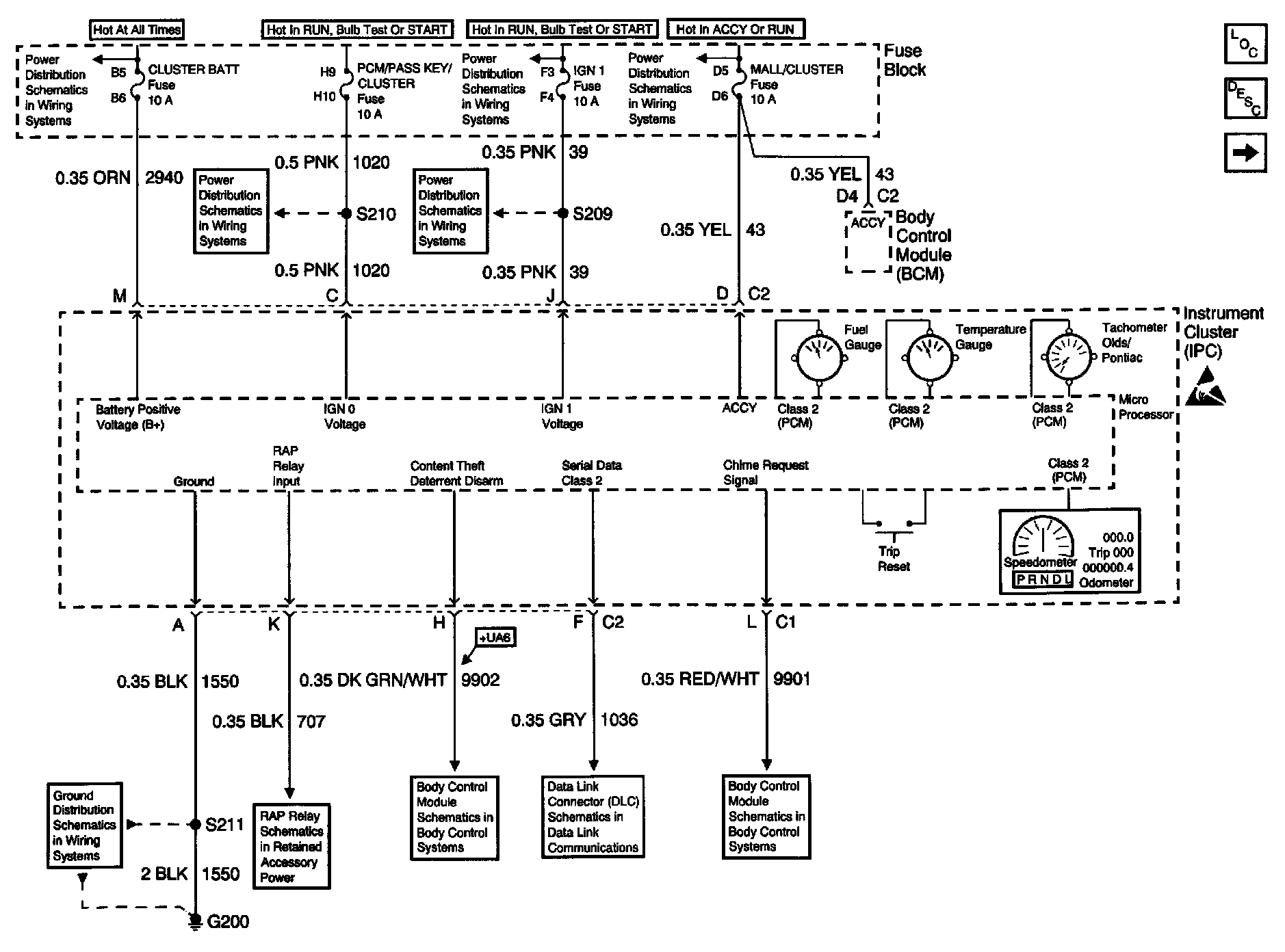

Instrument Cluster: Analog Schematics (Power, Ground Class 2 Data Line, Gauges):
