Home >> Chevrolet >> 2000 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> Torque Converter Clutch, A/T

Torque Converter Clutch, A/T

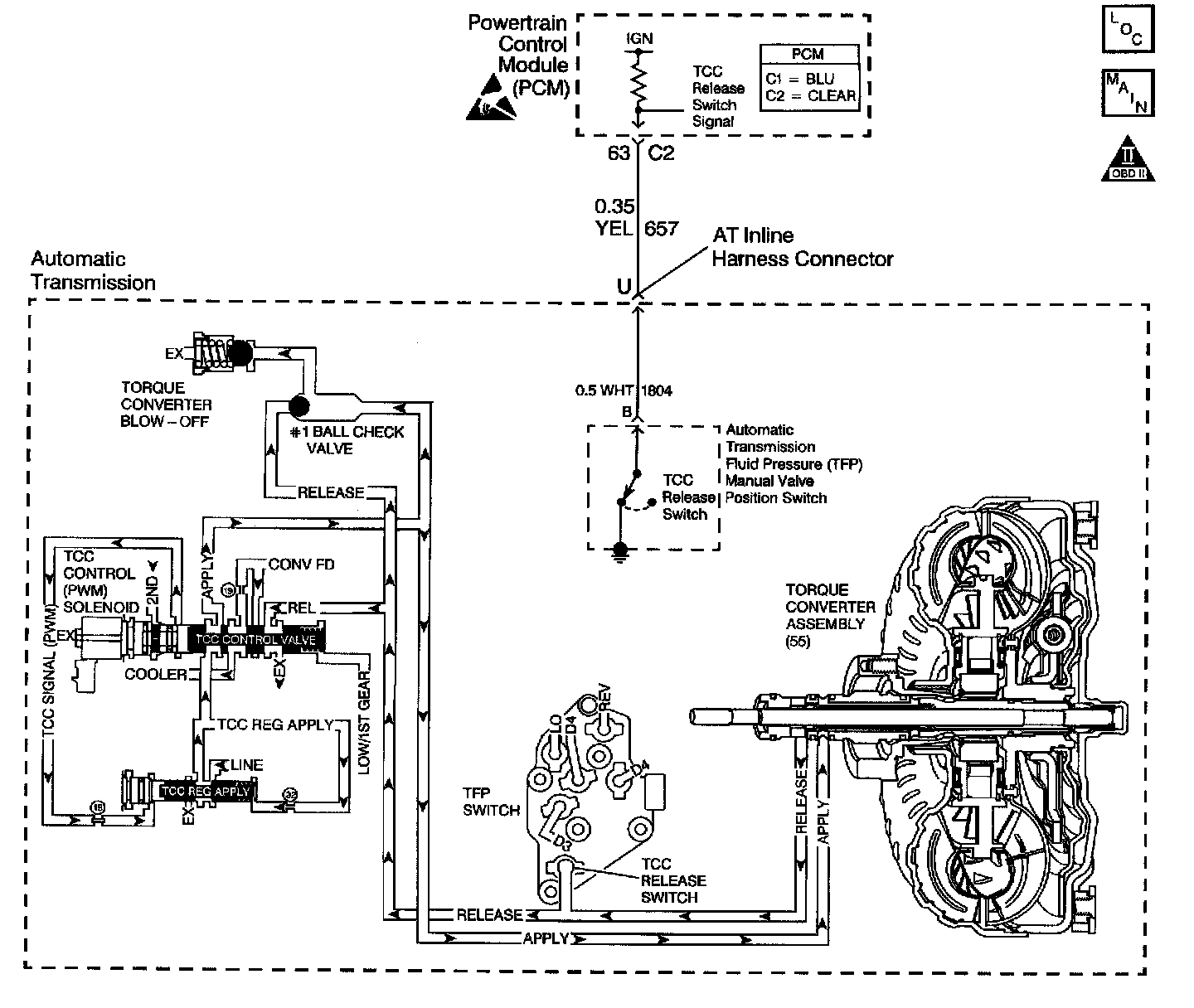

Schematic:
