Shift Solenoid, A/T

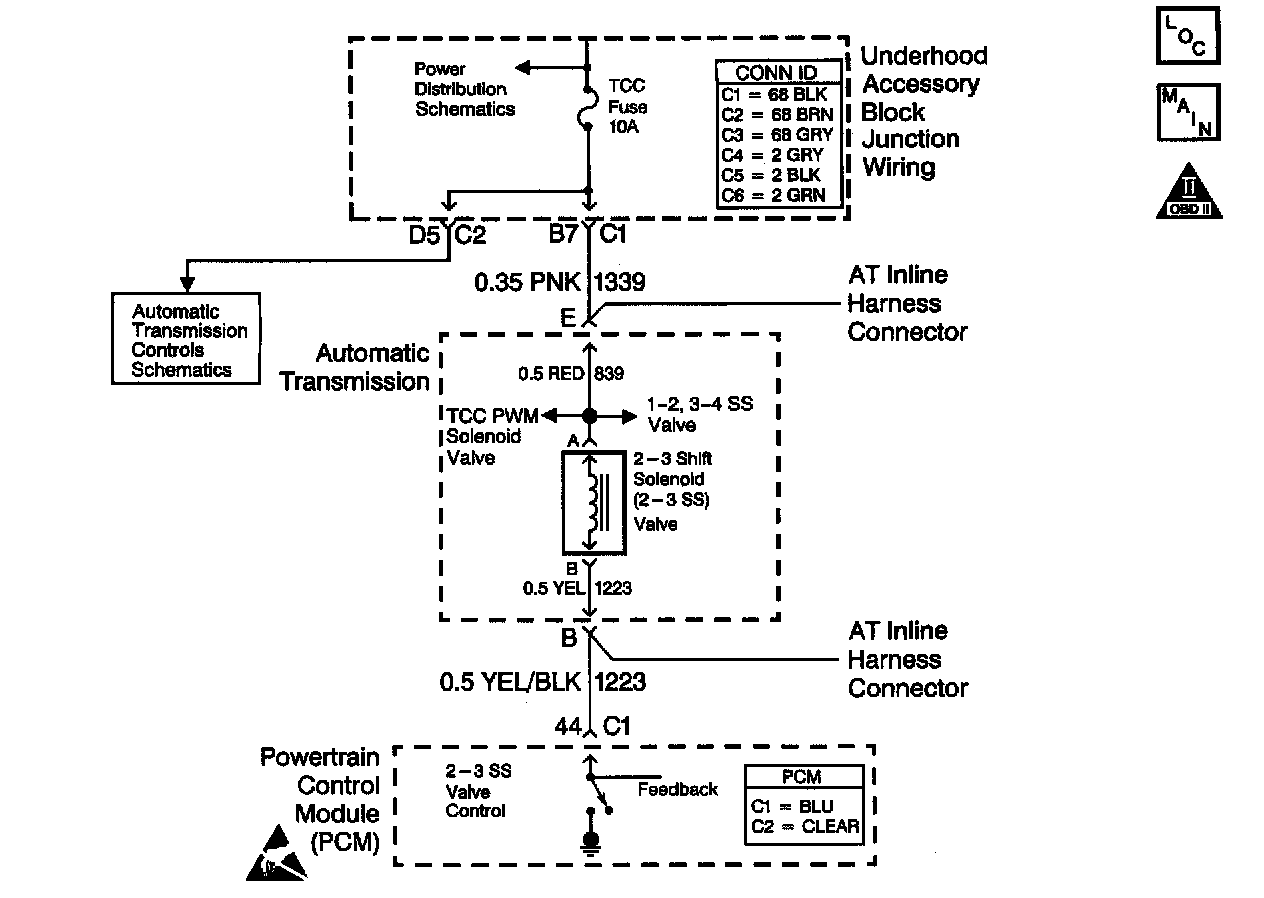

Schematic:

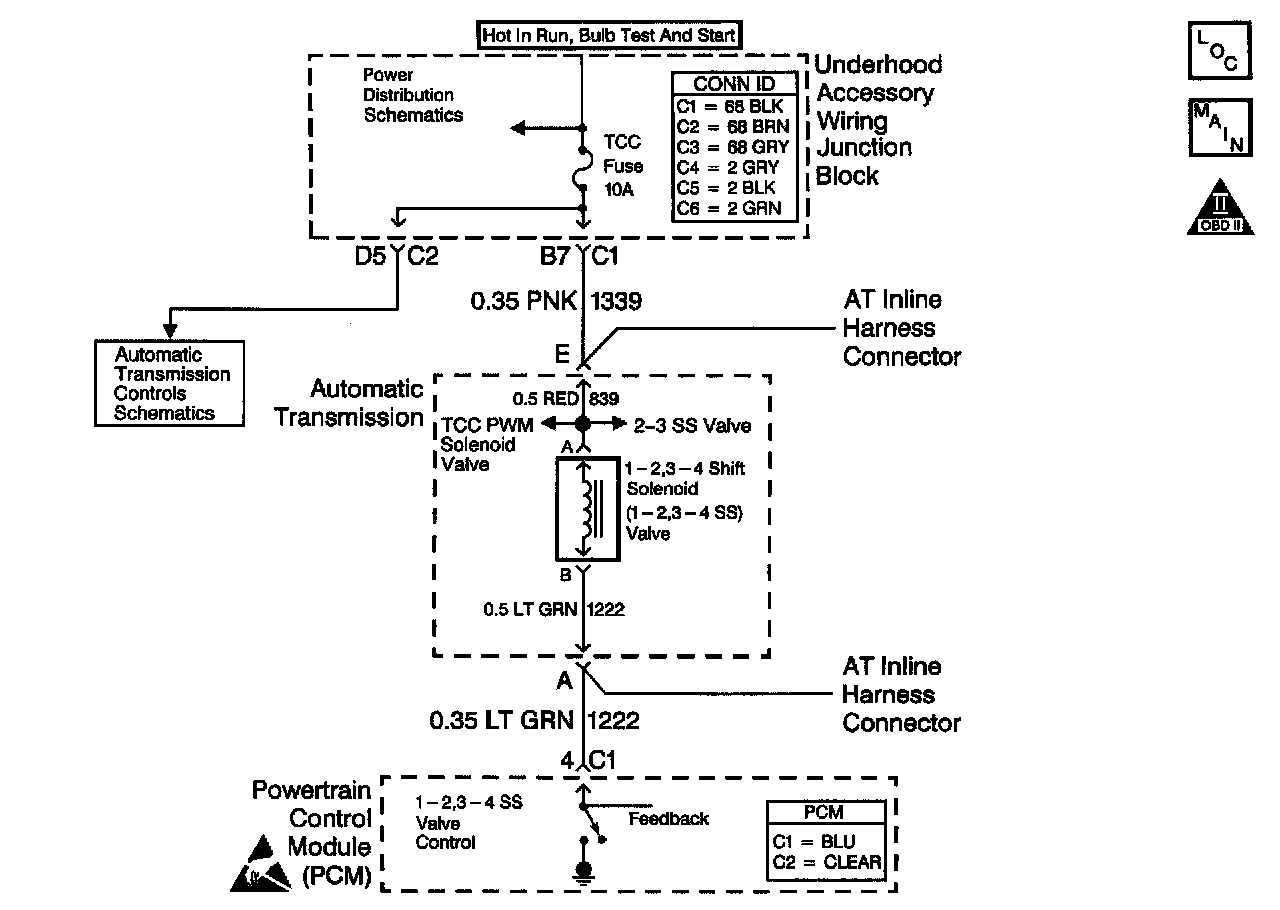

Schematic:

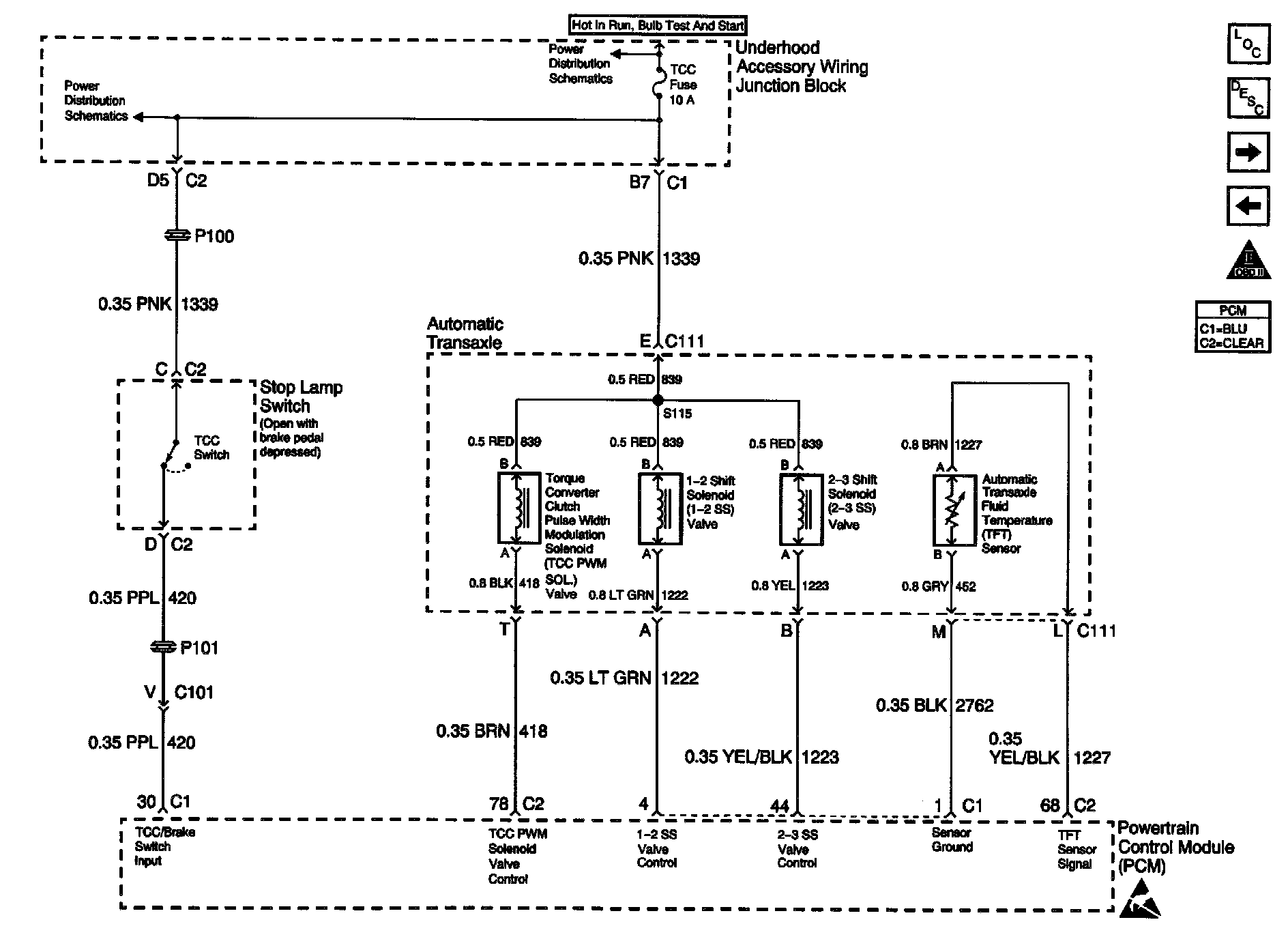

Engine Controls Schematics: Automatic Transaxle (Part 2 Of 2):
