Pressure Regulating Solenoid, A/T

Schematic:

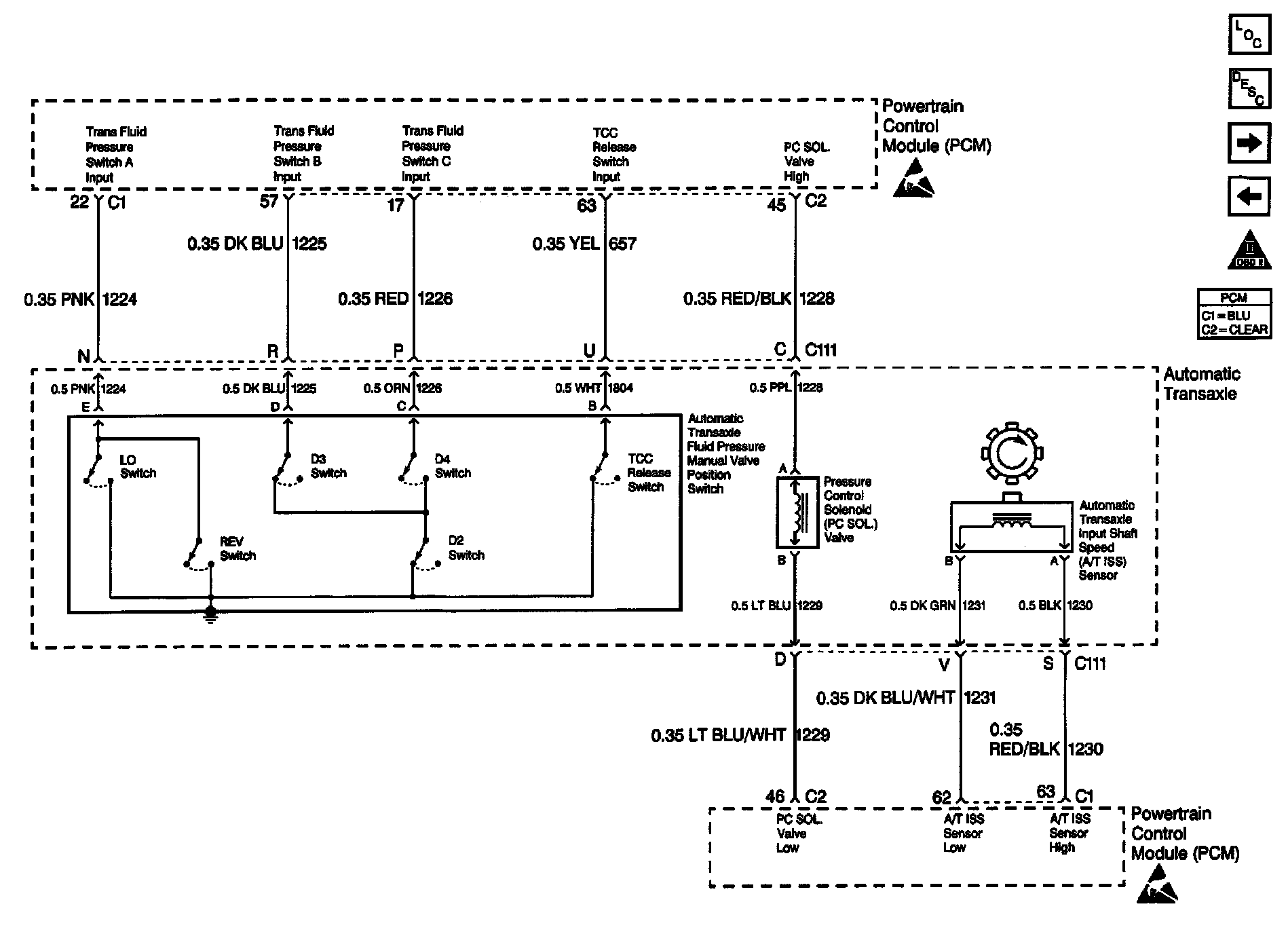

Engine Controls Schematics: Automatic Transaxle (Part 1 Of 2):
