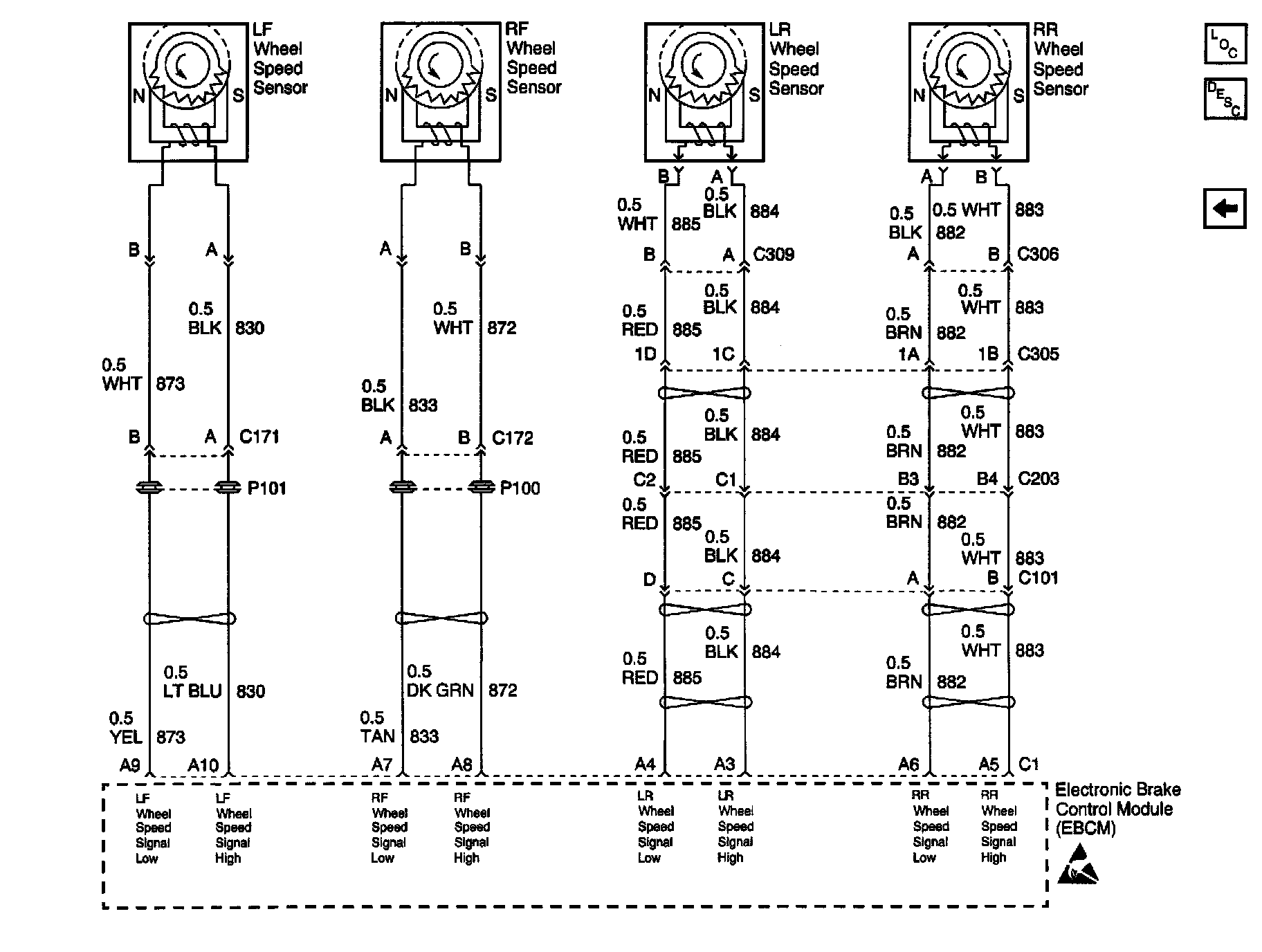

ABS Module, Wheel Speed Sensors

ABS Schematics (ABS/TCS Schematics): ABS Module, Wheel Speed Sensors:
