Sensors, Pretensioners, and Side Air Bags

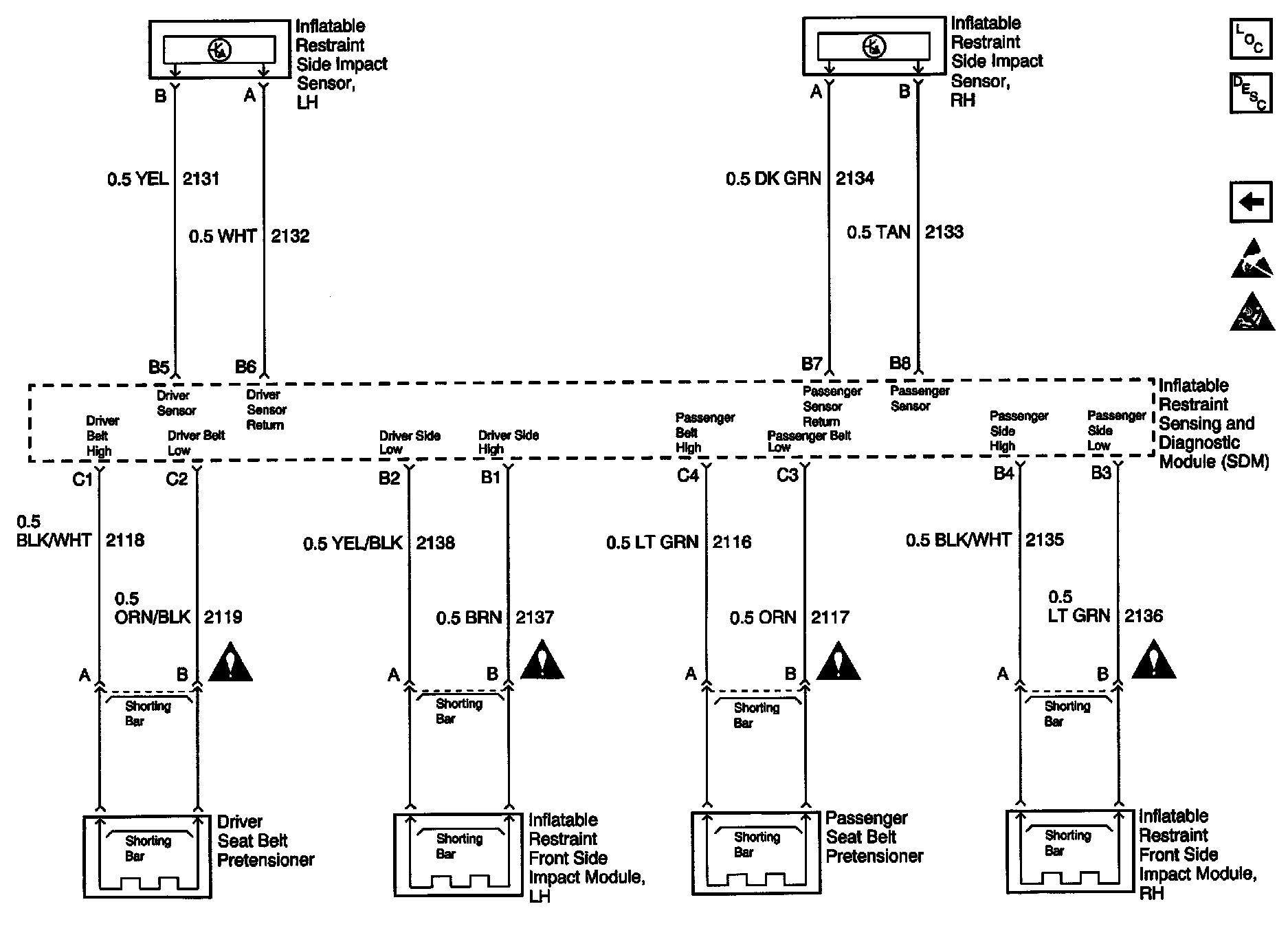

SIR Schematics: Sensors, Practitioners, And Side Air Bags:
