Data Link Connector (DLC)
Data Link Connector (DLC)

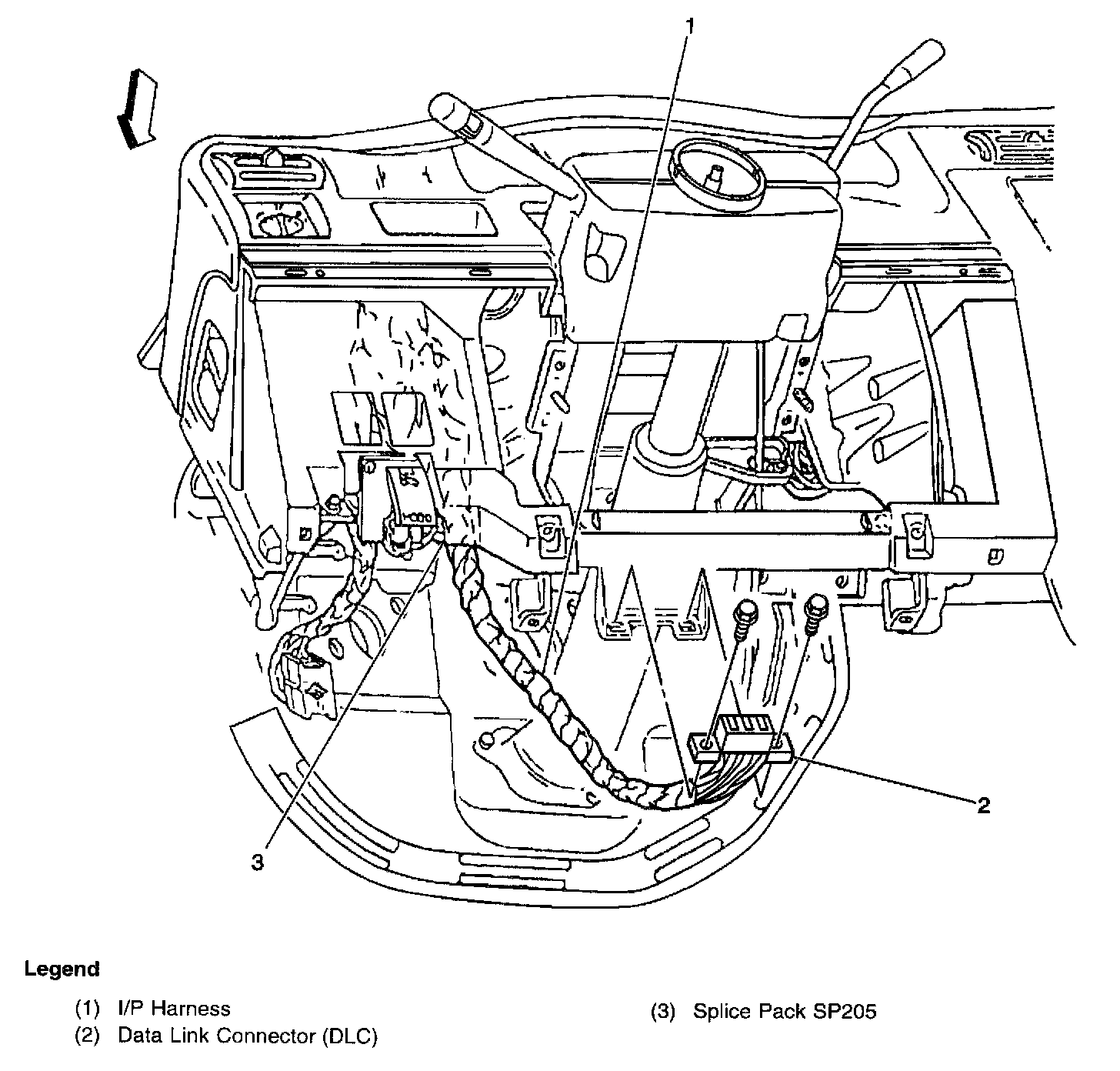

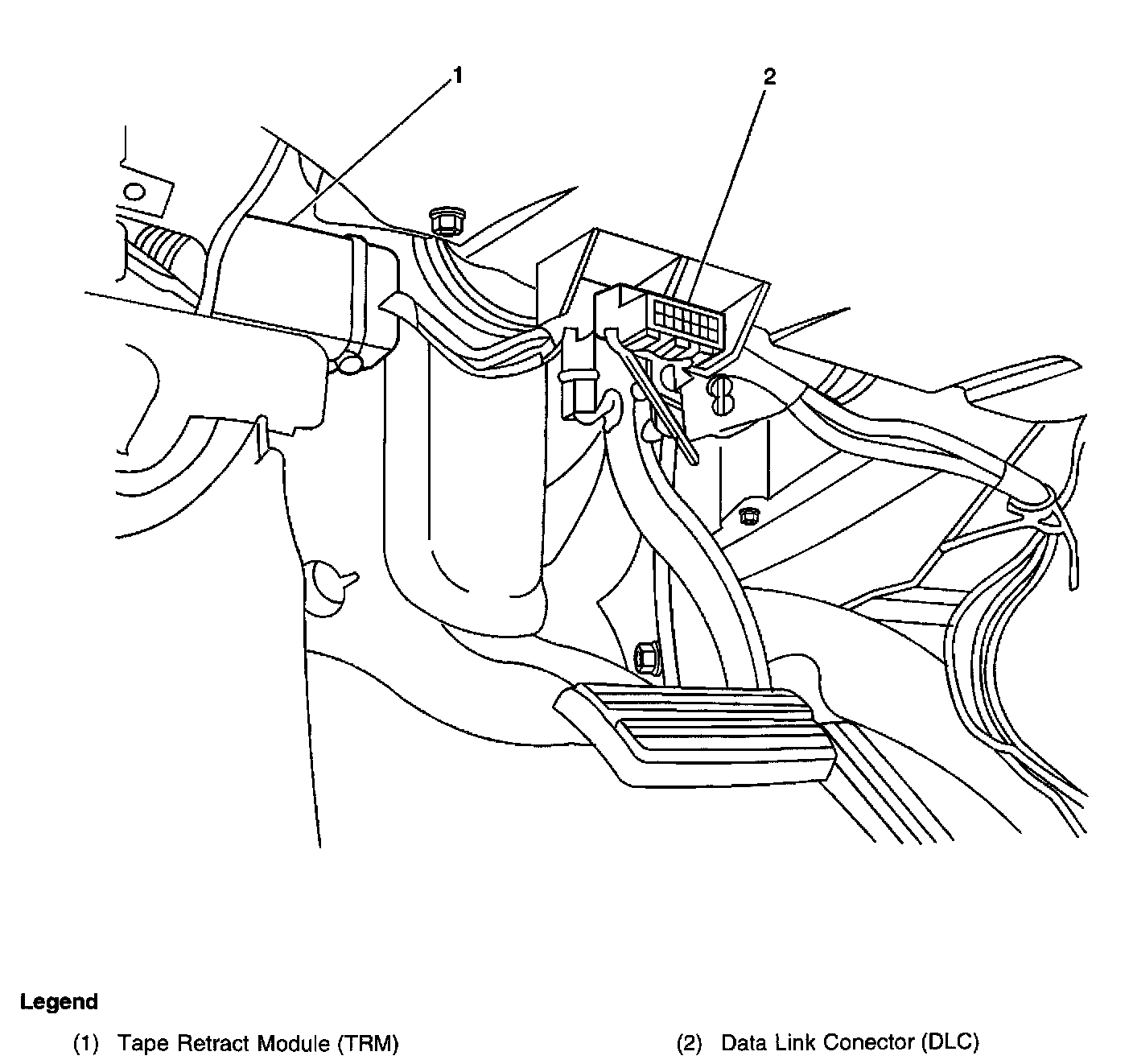

Locations View:
Locations View:
Below the steering column, bottom of the knee bolster.
