Heater-A/C Control Conn C2(Compressor & Air Delivery Control)
Heater-A/C Control Conn C2(Compressor & Air Delivery Control)

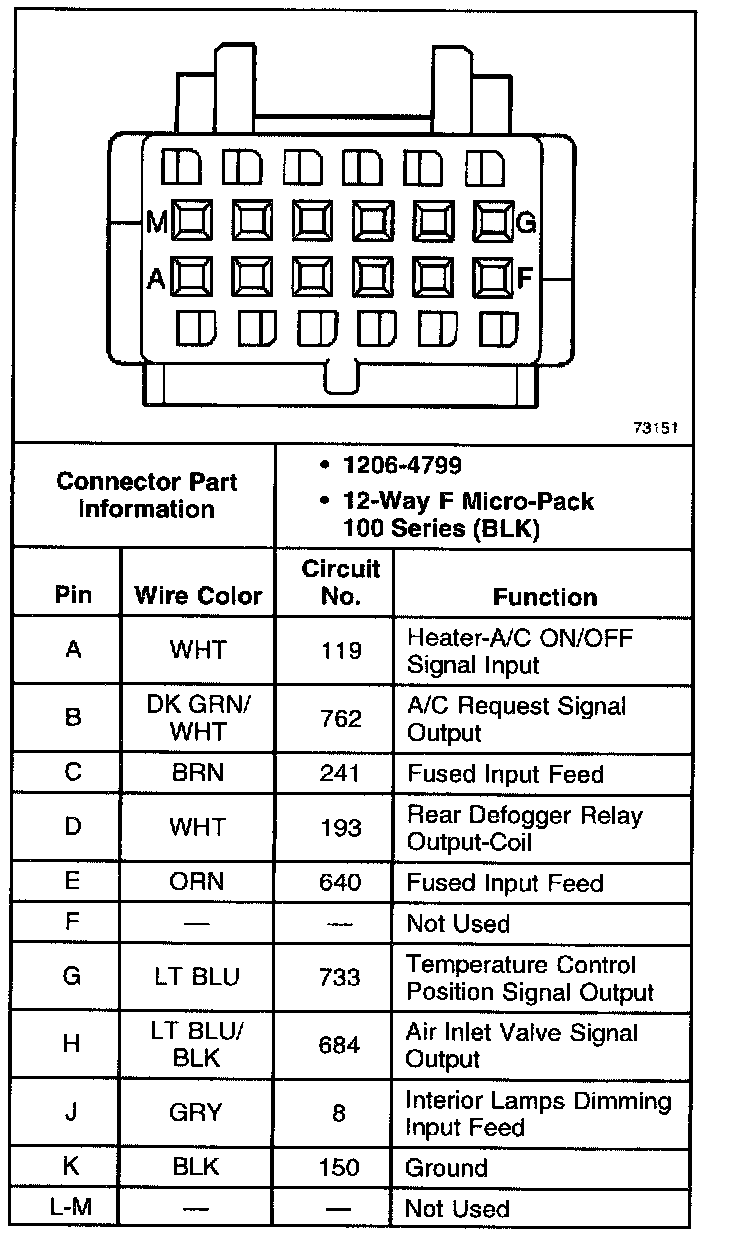

Heater - A/C Control Connector C2 (Compressor And Air Delivery Control):
