Home >> Chevrolet >> 2000 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> C306

C306

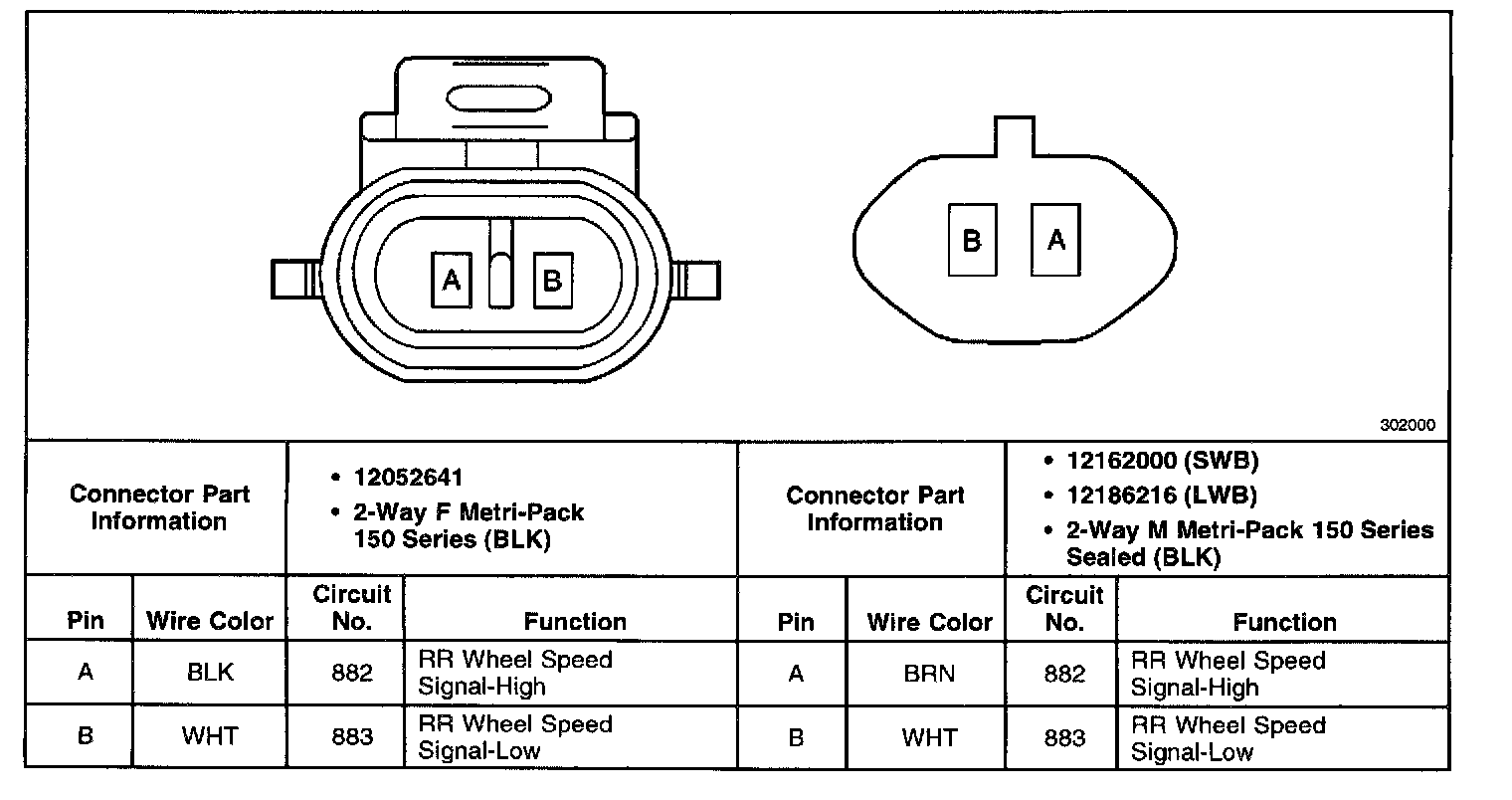

In-line Connector C306:
