C203
C203

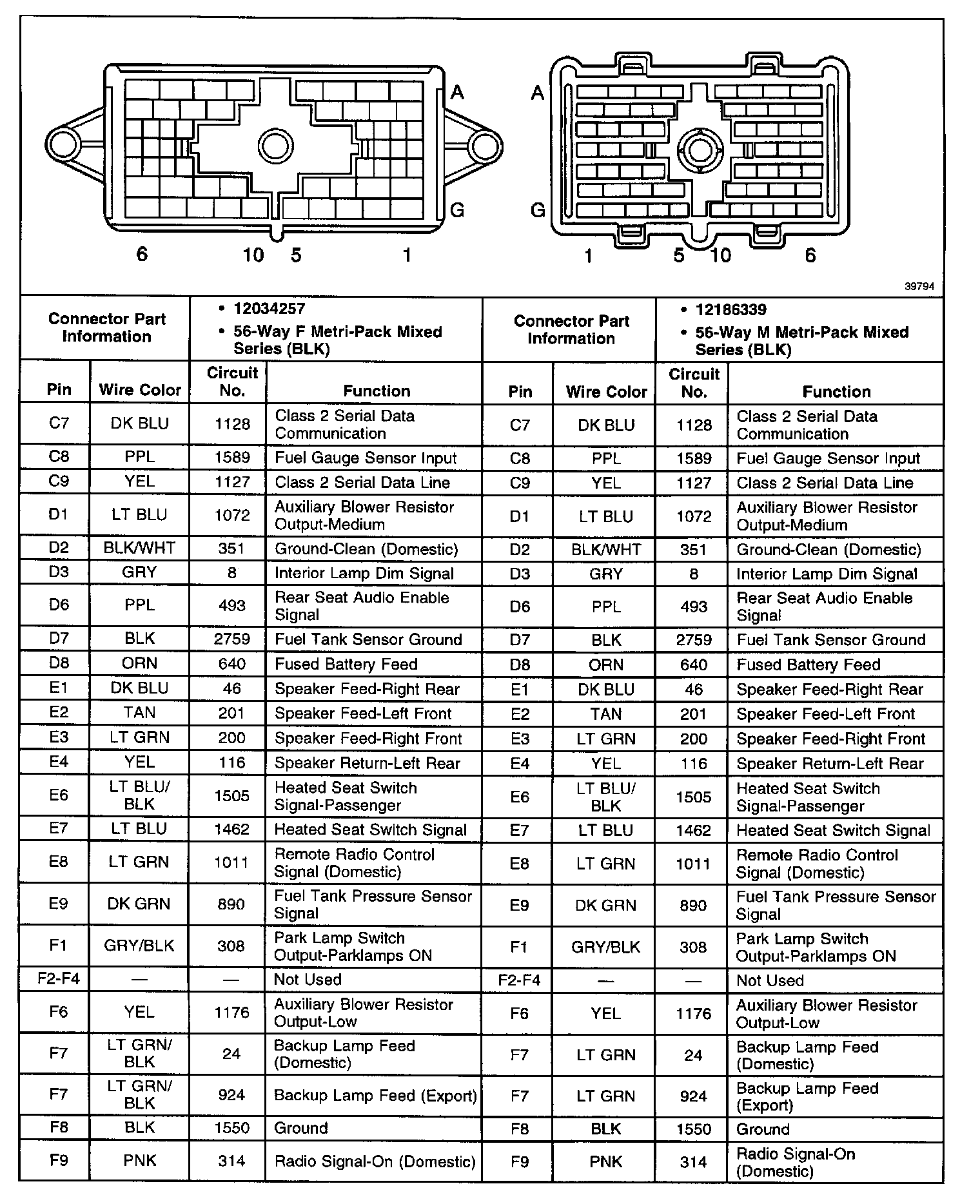

In-line Connector C203 (Part 1 Of 3):

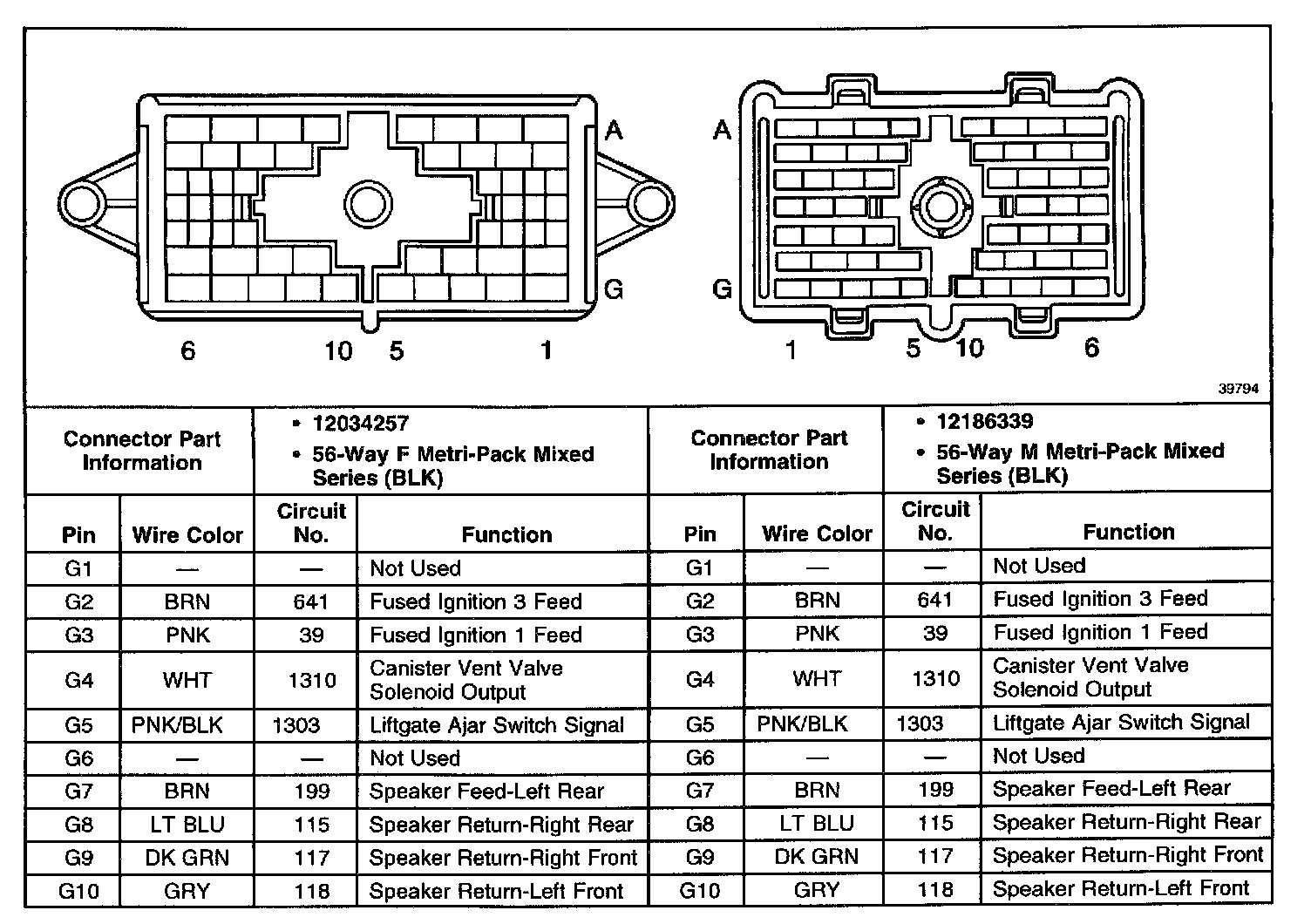

In-line Connector C203 (Part 2 Of 3):

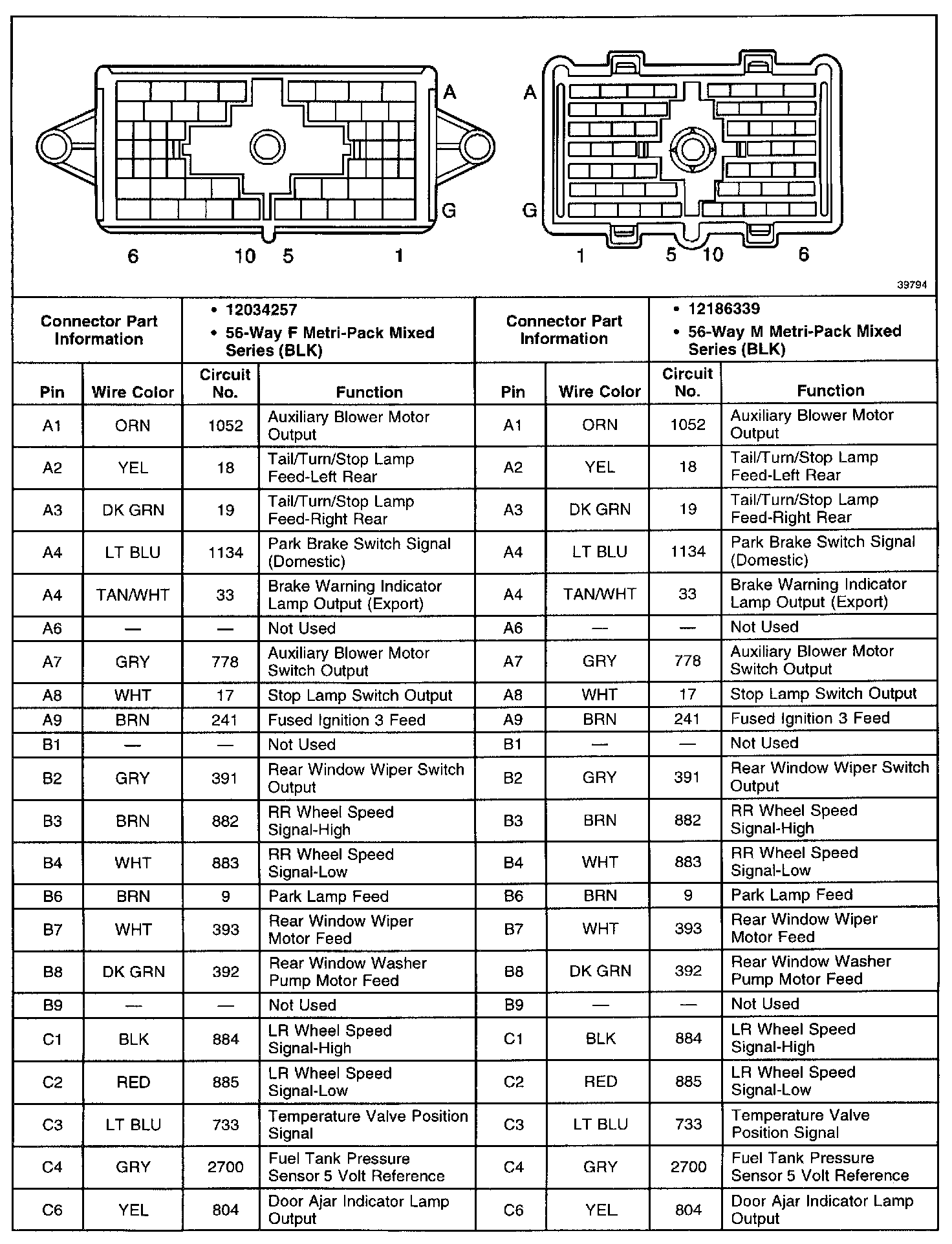

In-line Connector C203 (Part 3 Of 3):
