Home >> Chevrolet >> 2000 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> C111

C111

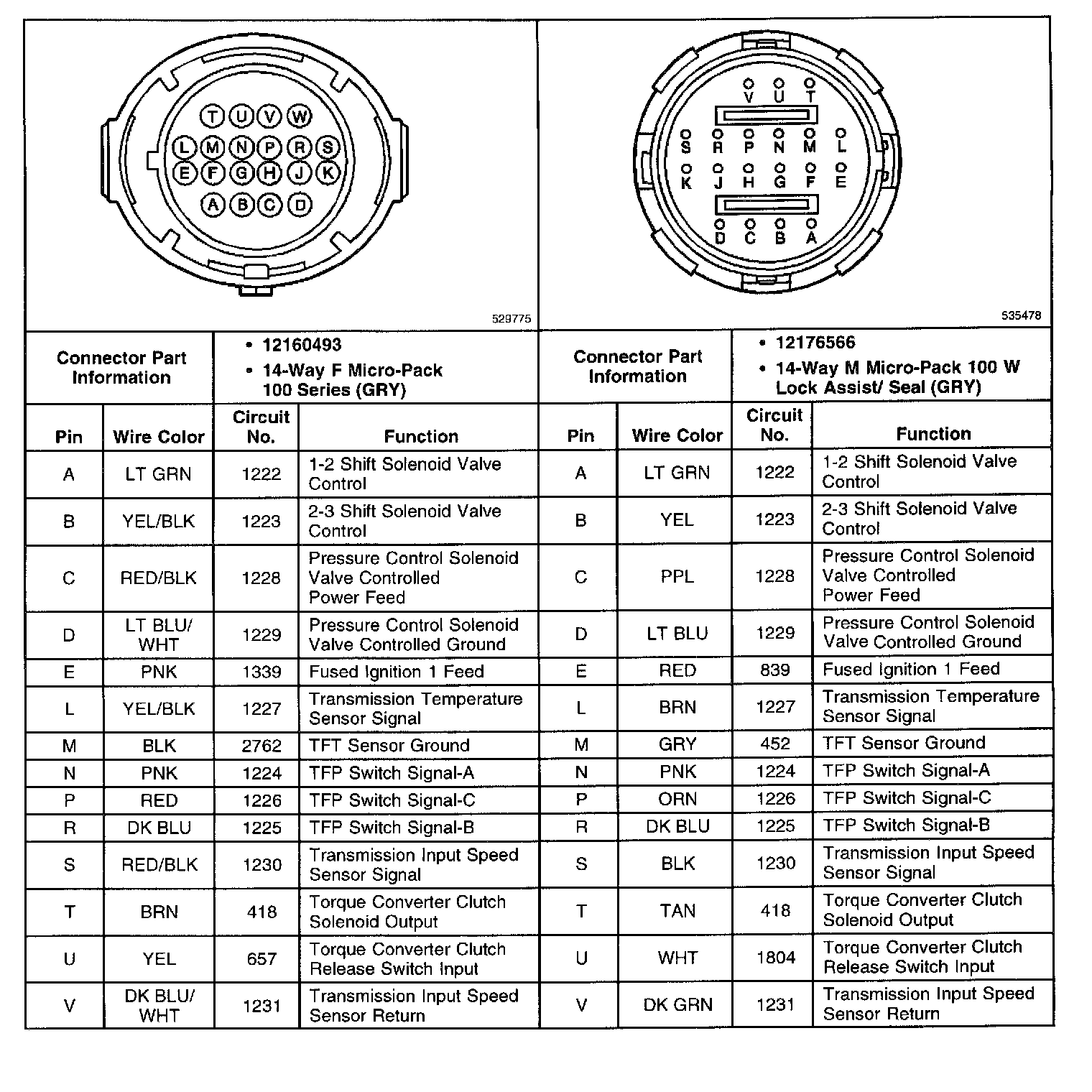

In-line Connector C111:
