Home >> Chevrolet >> 2000 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Transmission Position Sensor/Switch, A/T >> Transaxle Range Switch C1

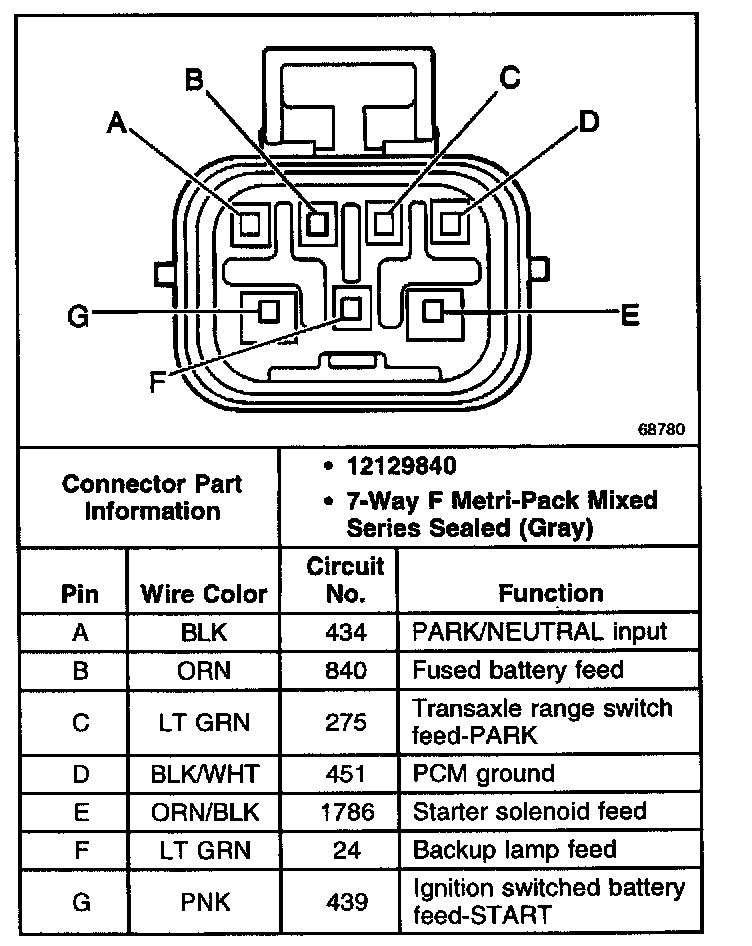

Transaxle Range Switch C1

Transaxle Range Switch C1:
