Crank Relay

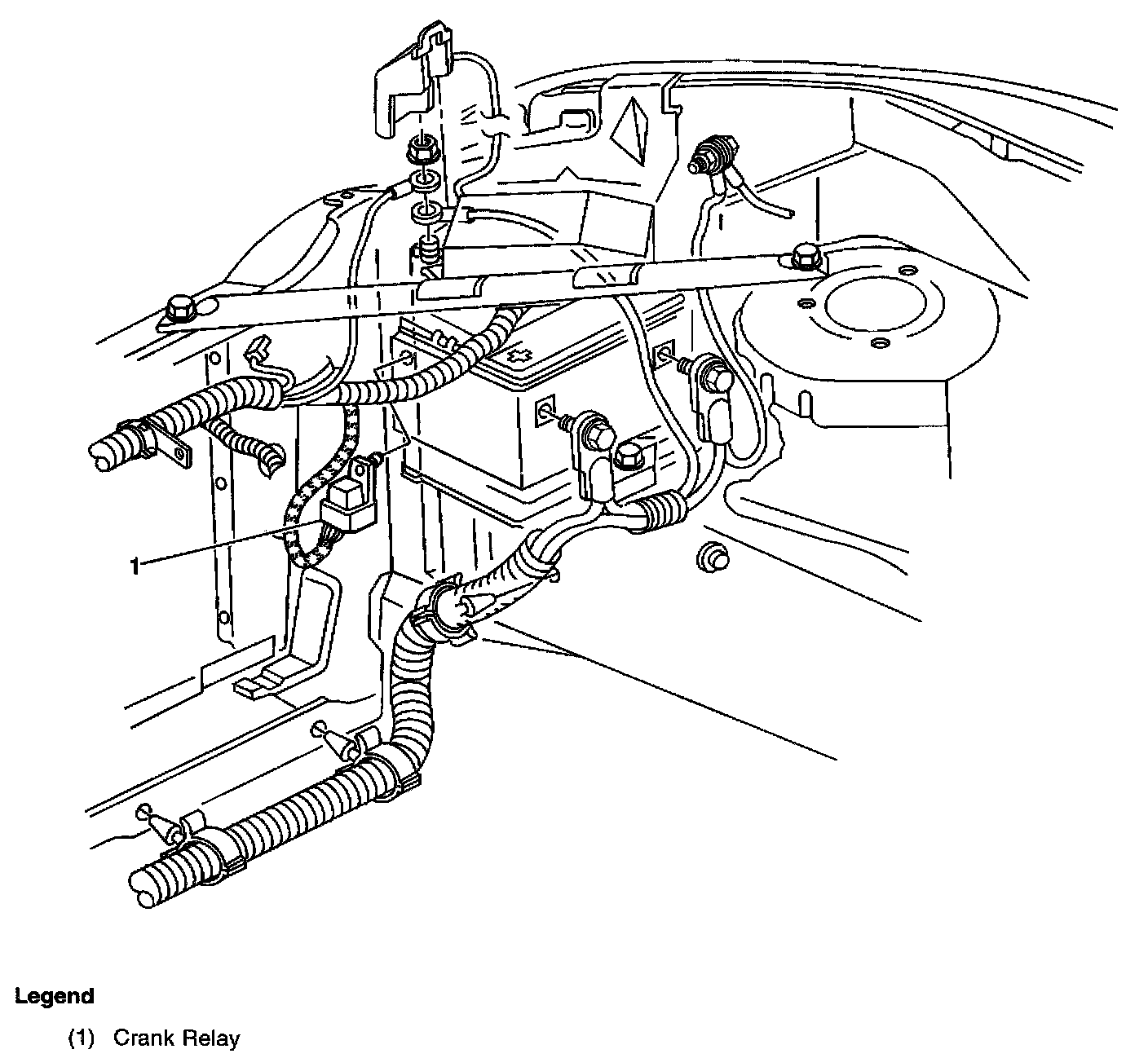

Locations View:




Right side of Engine Compartment on the radiator support, inboard of the underhood accessory wiring junction block
