Parking Brake Shoe: Service and Repair

Removal Procedure





1. Ensure that the park brake control (pedal) is in the full release (up) position.
2. Raise and support the vehicle. Refer to Vehicle Lifting.
3. Ensure that both of the park brake cable actuator levers are in the full release (up) position. If both of the park brake cable actuator levers are not in the full release (up) position, adjust the park brake cable. Refer to Park Brake Cable Service/Adjustment.
4. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation.
5. Remove the rear brake caliper bracket with the rear brake caliper. Refer to Brake Caliper Bracket Replacement - Rear (Export).
6. Remove the rear brake rotor. Refer to Brake Rotor Replacement - Rear (Export).
7. Loosen the park brake actuator adjuster nut until there is no tension against the park brake shoe.
8. Remove the wheel bearing/hub. Refer to Wheel Bearing/Hub Replacement - Rear (Domestic) or Wheel Bearing/Hub Replacement - Rear (Export).

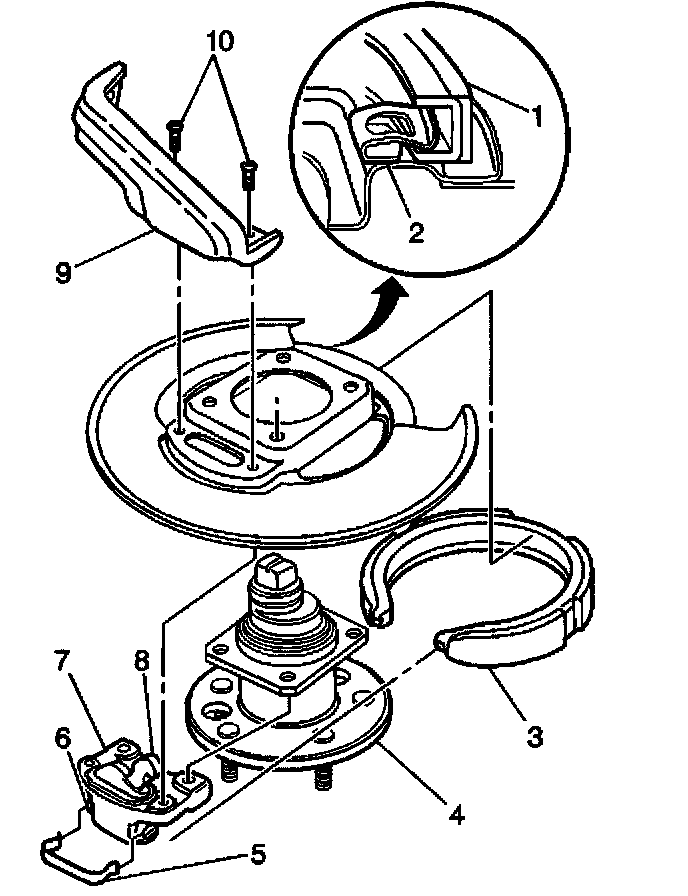

9. Remove the park brake shoe (1) from the backing plate and the park brake shoe retaining clip.
10. Install the park brake actuator retainer (2) to the park brake actuator (3).

Installation Procedure





1. Remove the park brake actuator retainer (5) from the park brake actuator.

Important: Ensure that the park brake shoe (1) engages the retainer (2).

2. Install the park brake shoe to the park brake support plate.
3. Install the wheel bearing/hub. Refer to Wheel Bearing/Hub Replacement - Rear (Domestic) or Wheel Bearing/Hub Replacement - Rear (Export).
4. Adjust the park brake shoe. Refer to Park Brake Shoe Adjustment (Export).
5. Install the rear brake rotor. Refer to Brake Rotor Replacement - Rear (Export).
6. Install the rear brake caliper bracket with the rear brake caliper. Refer to Brake Caliper Bracket Replacement - Rear (Export).
7. Adjust park brake cable. Refer to Park Brake Cable Service/Adjustment.
8. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation
9. Lower the vehicle.
