ABS Module, Relay, Modulator, Power

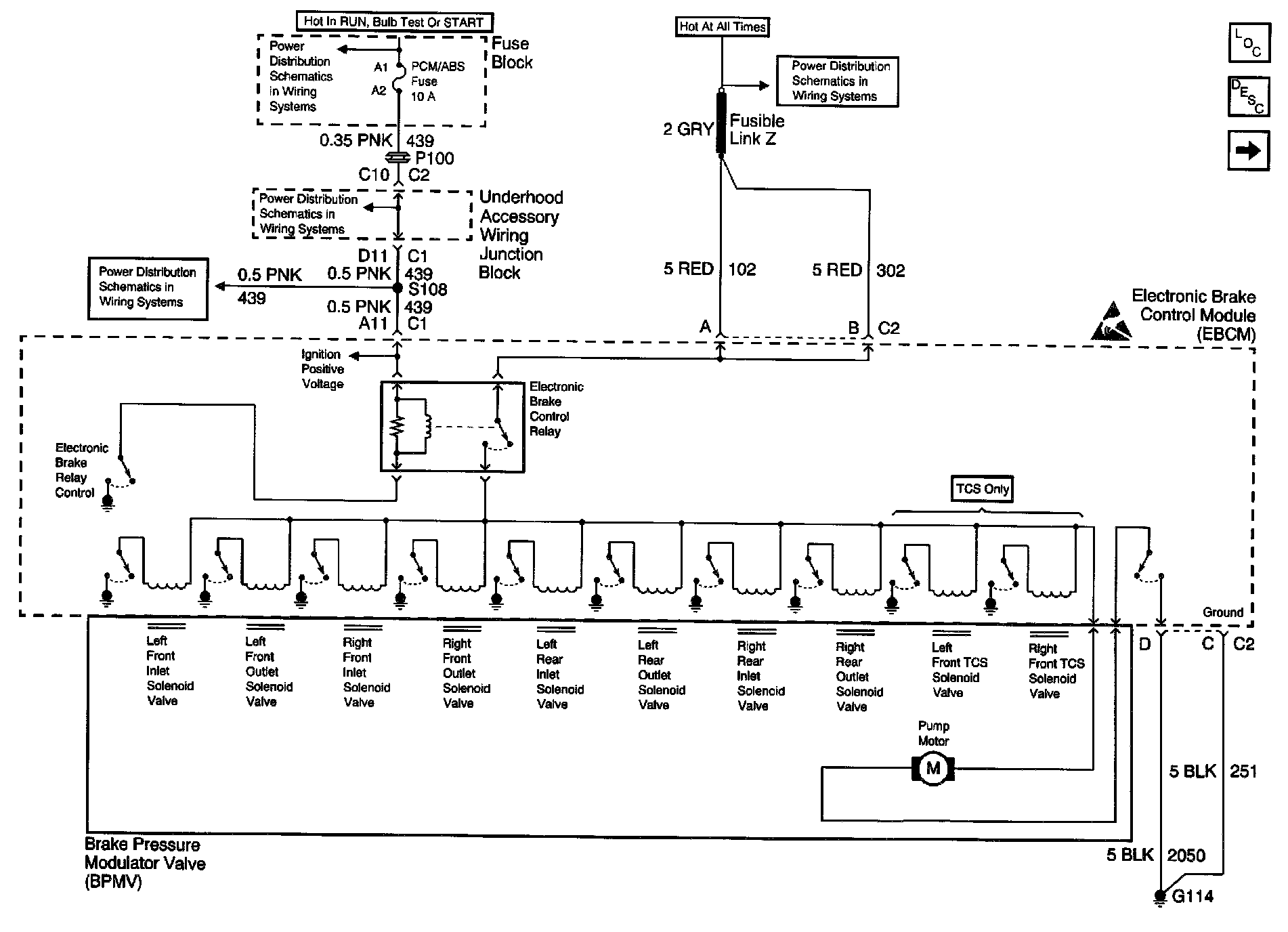

ABS Schematics (ABS/TCS Schematics): ABS Module, Relay, Modulator, Power:
