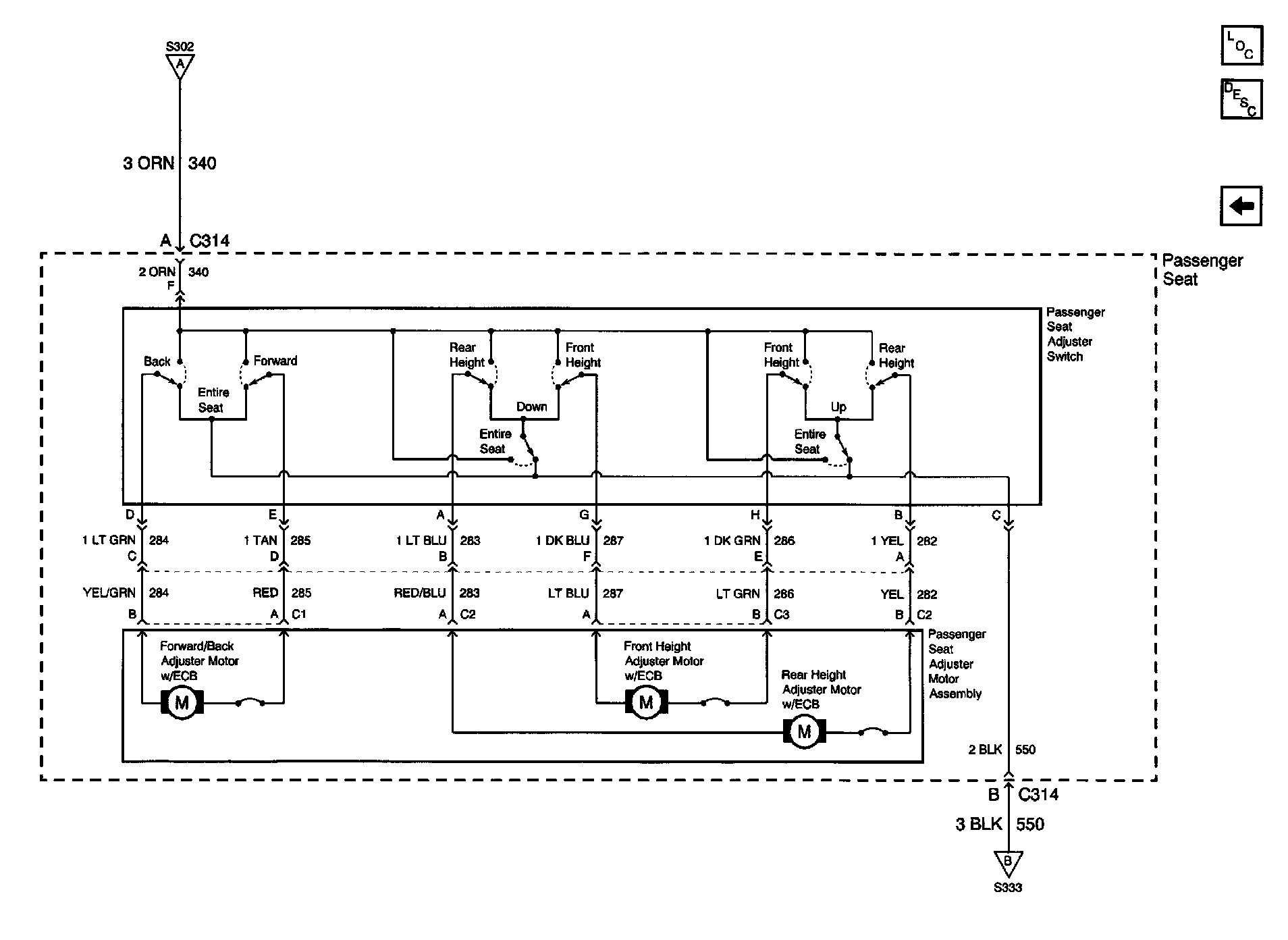

Power Seats Schematics Passenger's Side

Power Seats Schematics: Power Seats Schematics Passenger's Side:
