Bracket Replacement - Console Floor

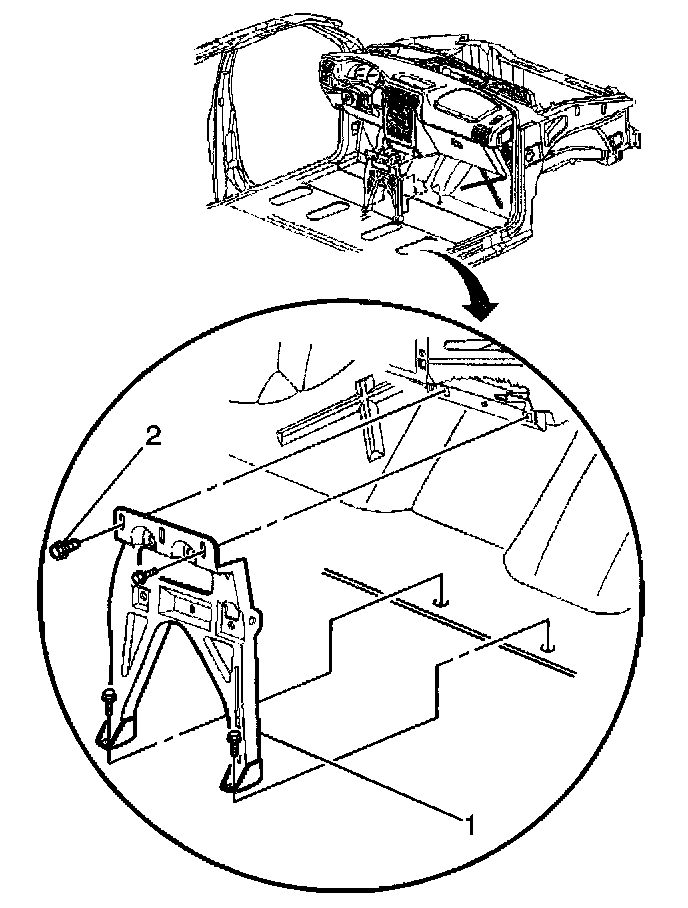

REMOVAL PROCEDURE
1. Remove the front floor console.
2. Remove the upper bolts/screws (2) from the IP.
3. Remove the lower nuts from the floor.
4. Remove the front floor console bracket (1) from the floor.

INSTALLATION PROCEDURE
1. Align the front floor console bracket (1) to the floor.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the lower nuts to the front floor console bracket.

Tighten
Tighten the nuts to 10 N.m (89 lb in).

3. Install the upper bolts/screws (2) to the IP.

Tighten
Tighten the bolts/screws to 2.5 N.m (22 lb in).

4. Install the front floor console.
