Rear Quarter Window(s) Inoperative

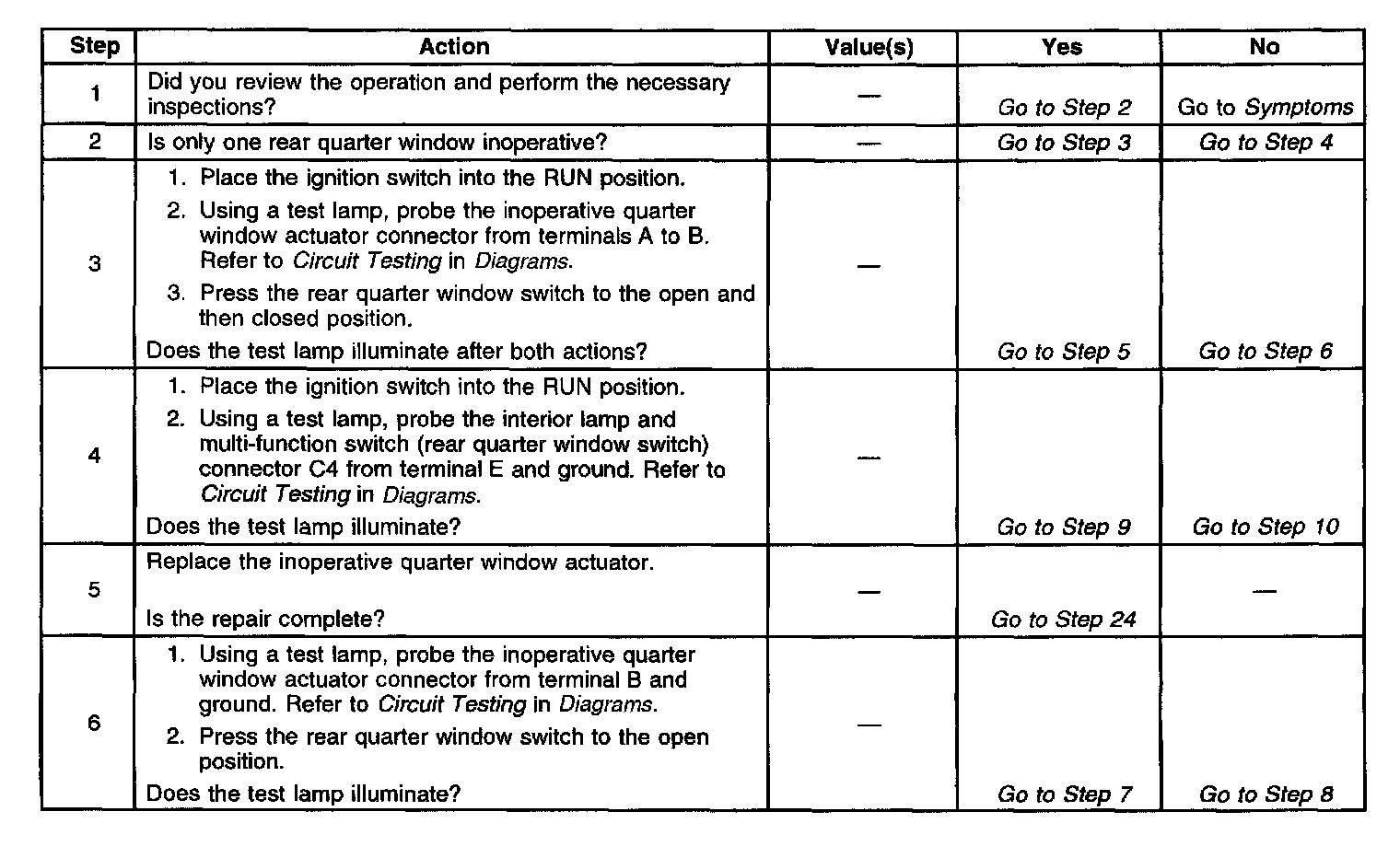

Diagnostic Chart (Part 1 Of 3):

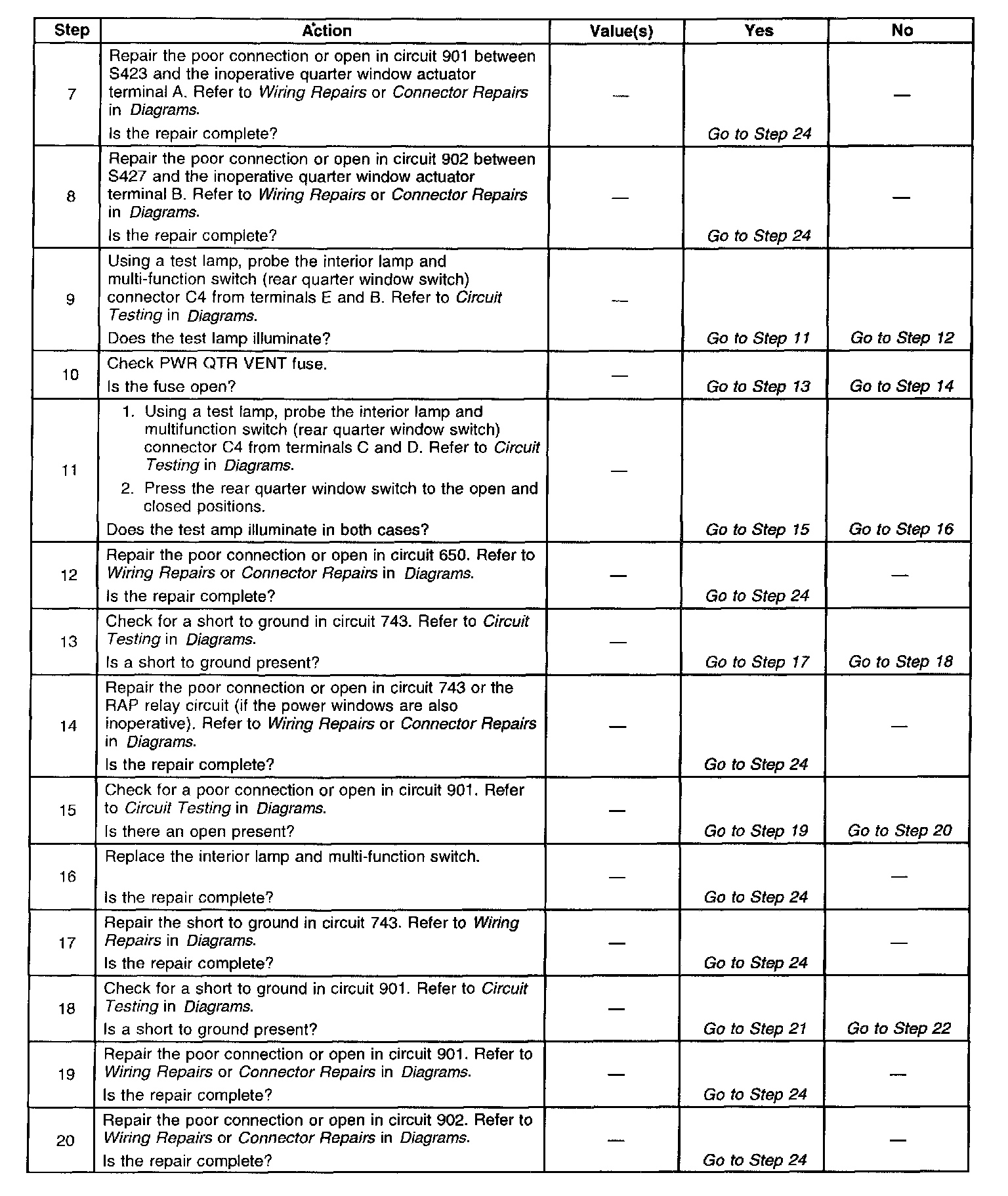

Diagnostic Chart (Part 2 Of 3):



Diagnostic Chart (Part 3 Of 3):
