Automatic Door Locks - Inoperative

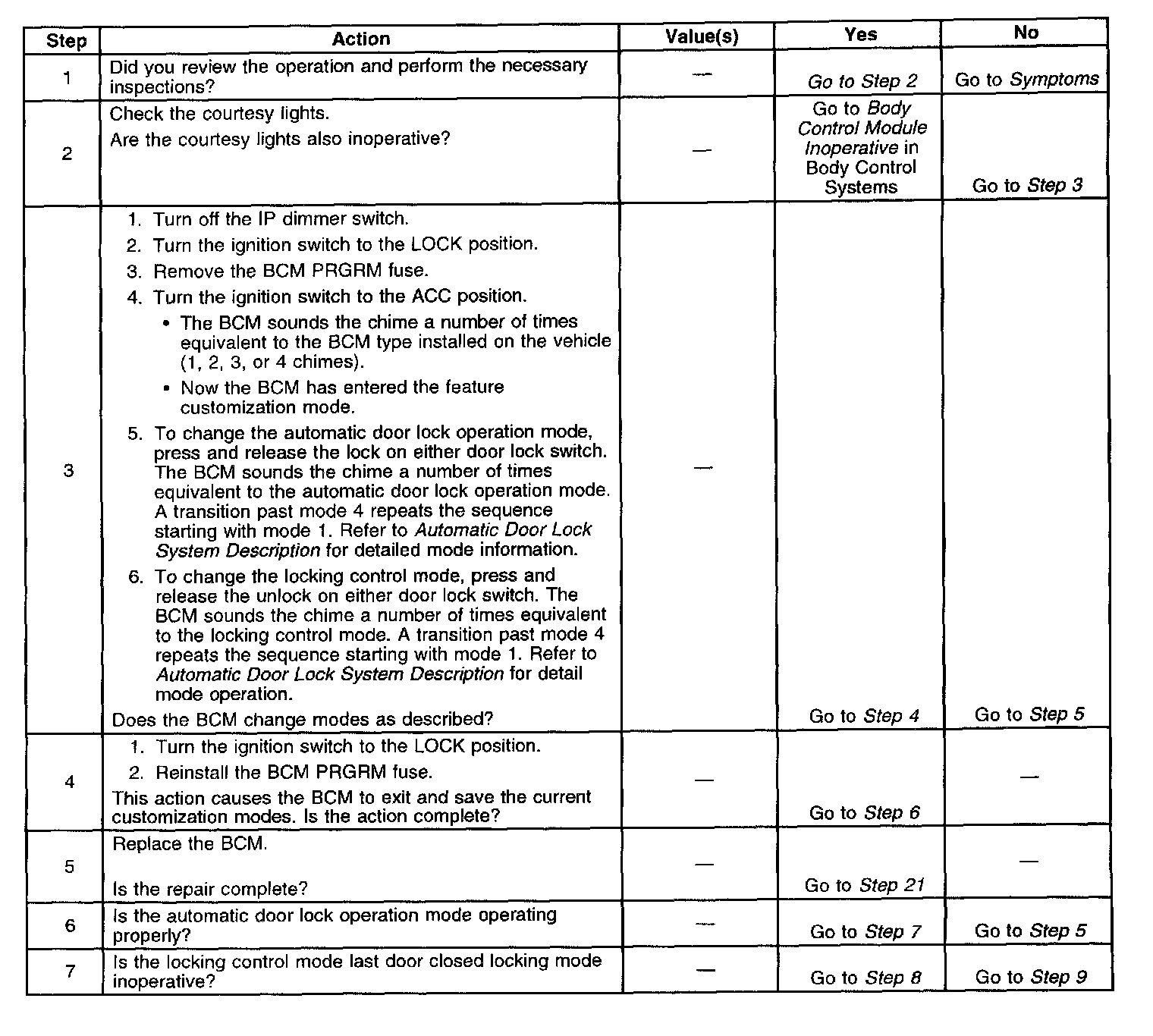

Diagnostic Chart (Part 1 Of 4):

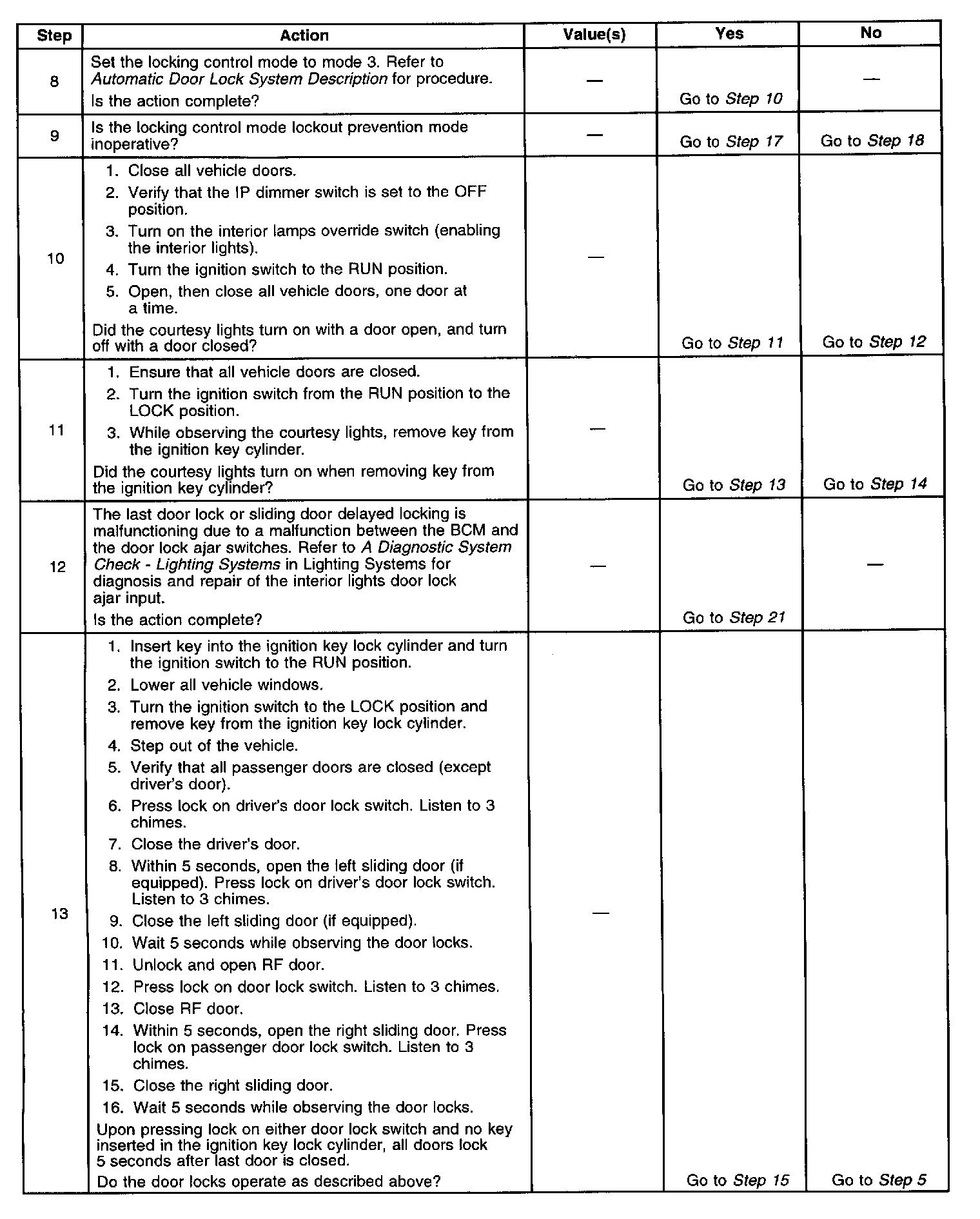

Diagnostic Chart (Part 2 Of 4):

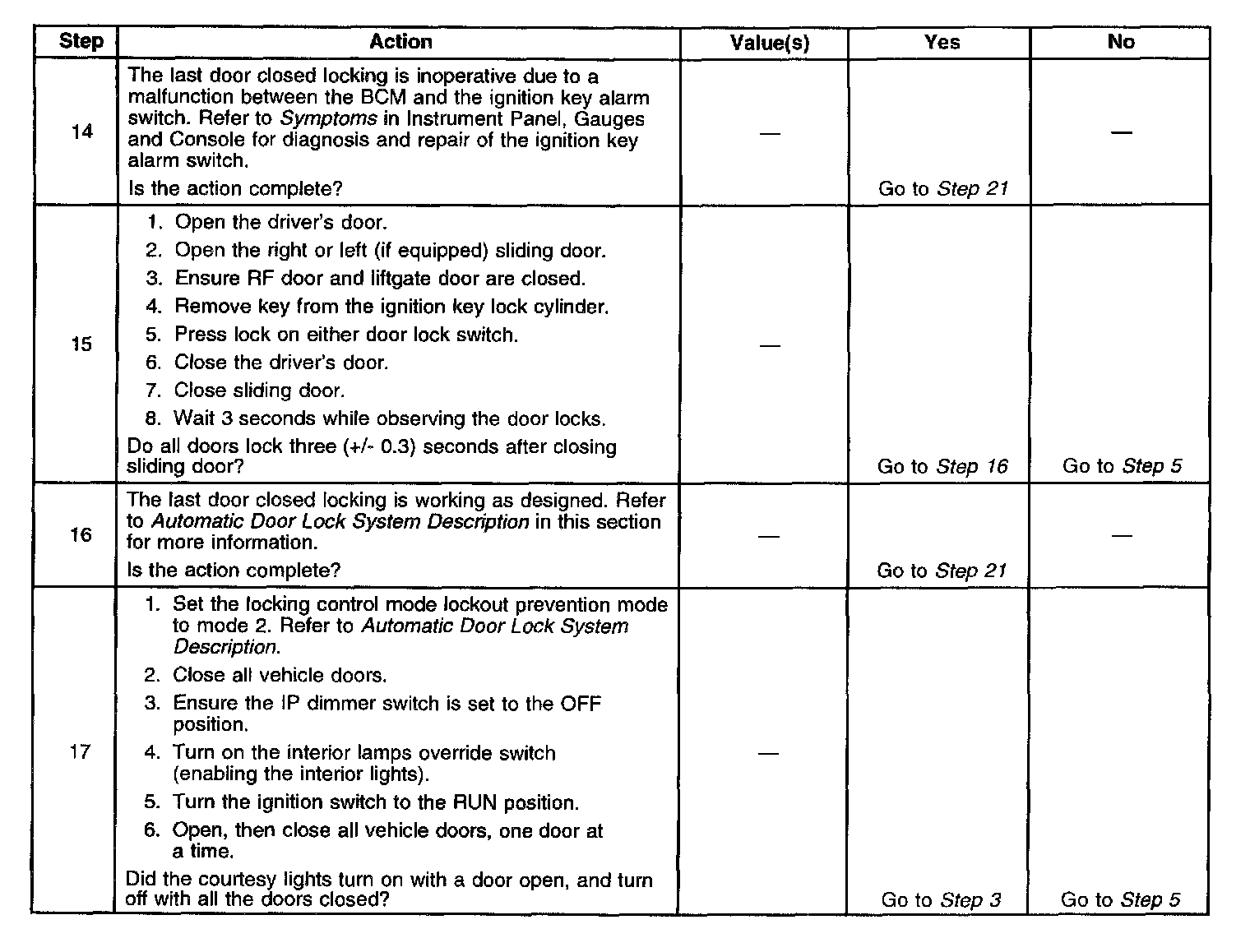

Diagnostic Chart (Part 3 Of 4):

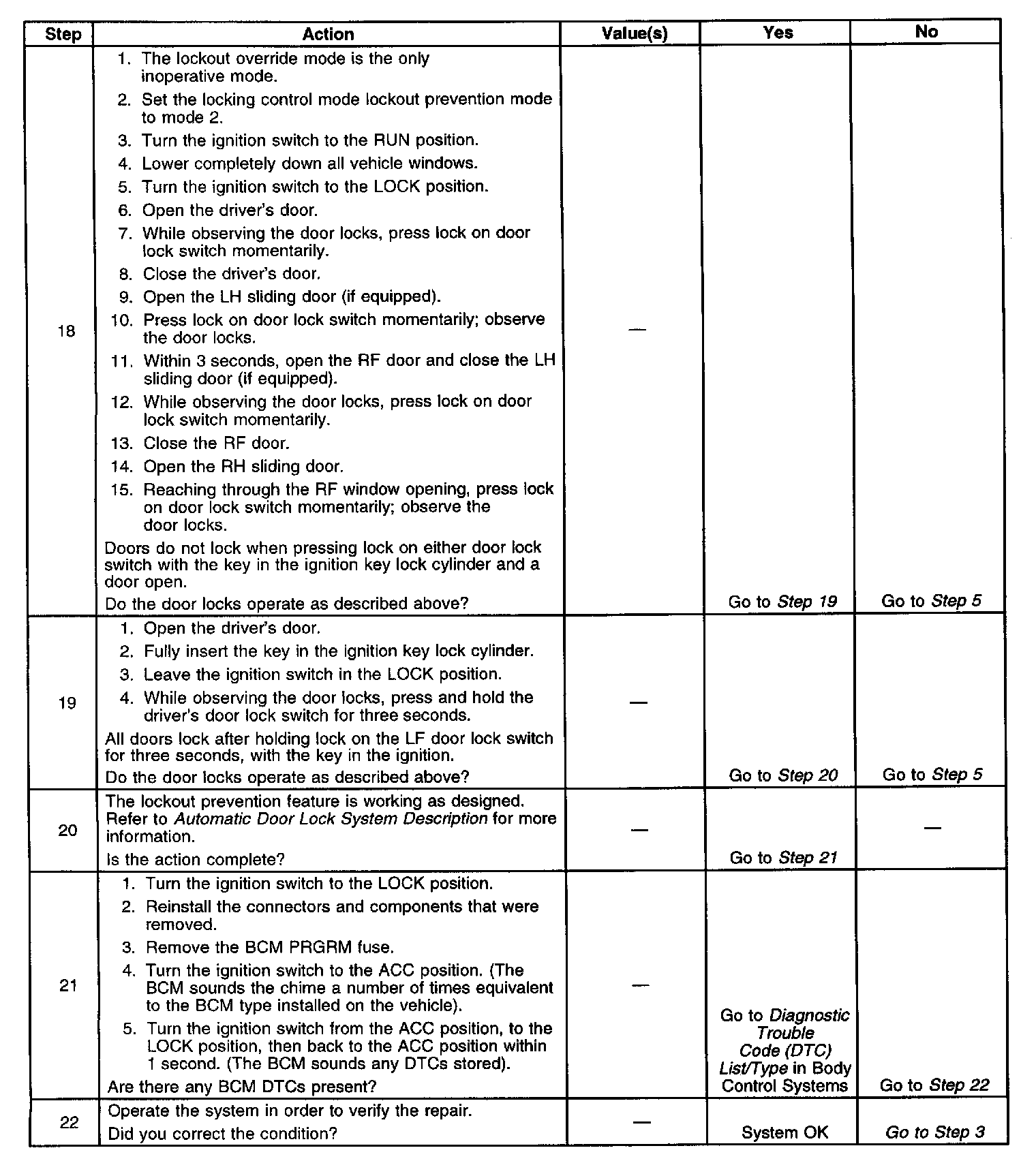

Diagnostic Chart (Part 4 Of 4):
