Home >> Chevrolet >> 2000 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Diagrams >> Electrical Diagrams >> Video System Schematics >> Video Screen Controls

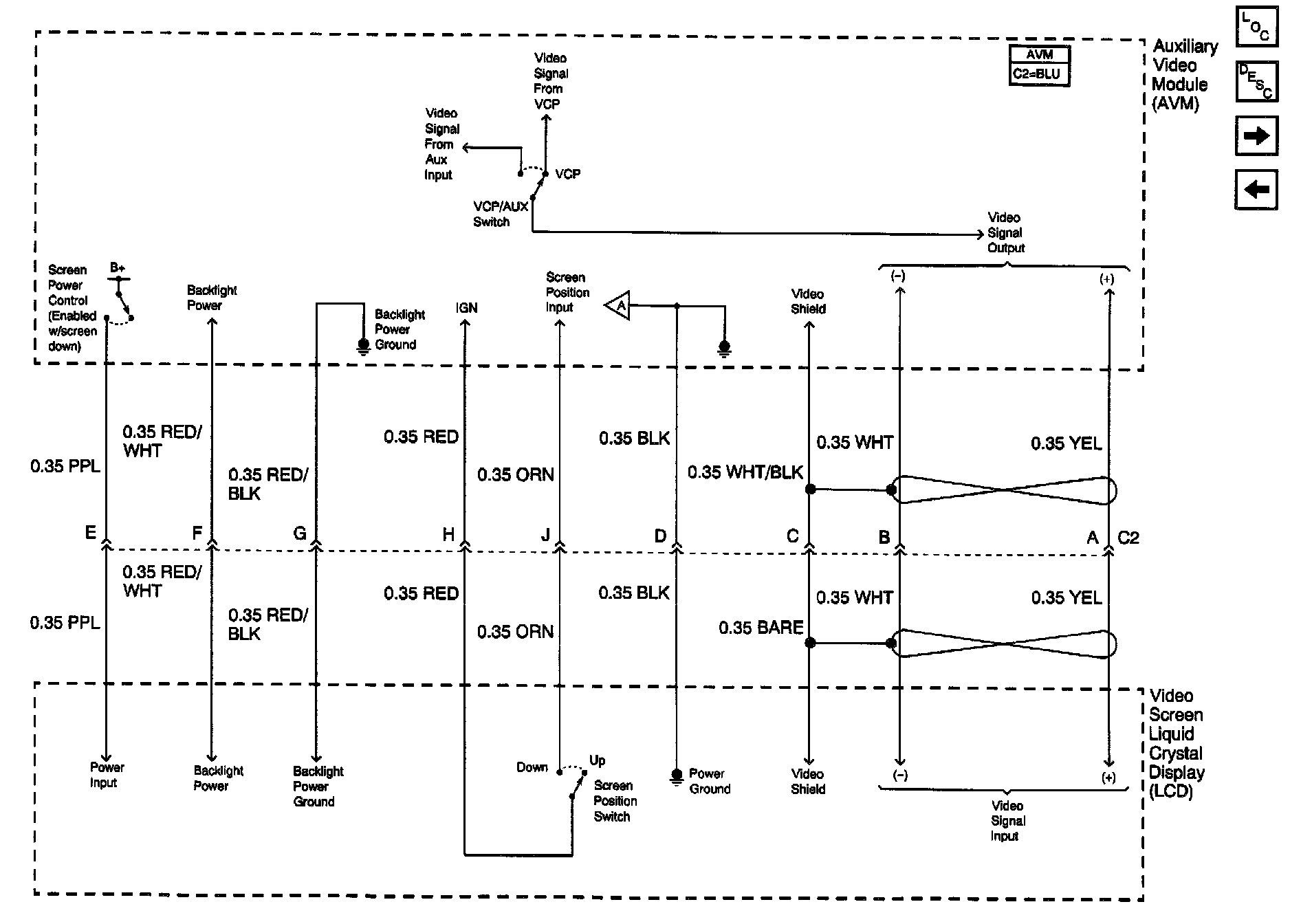

Video Screen Controls

Video System Schematics: Video Screen Controls:
