Home >> Chevrolet >> 2000 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Diagrams >> Electrical Diagrams >> Pass Key III Module

Pass Key III Module

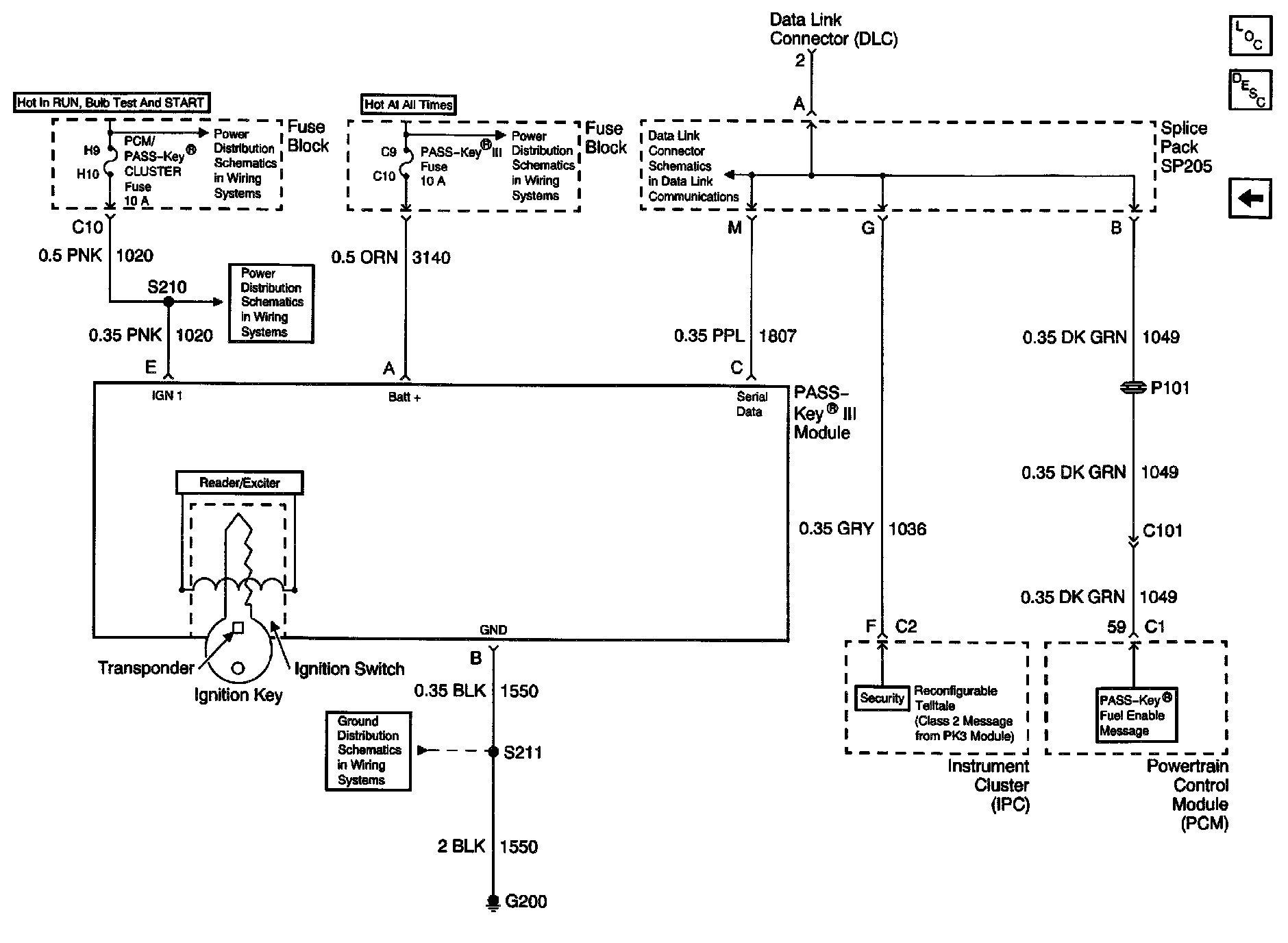

Theft Deterrent System Schematics (Pass Key III Module):
