Removal (TC Series Pump)

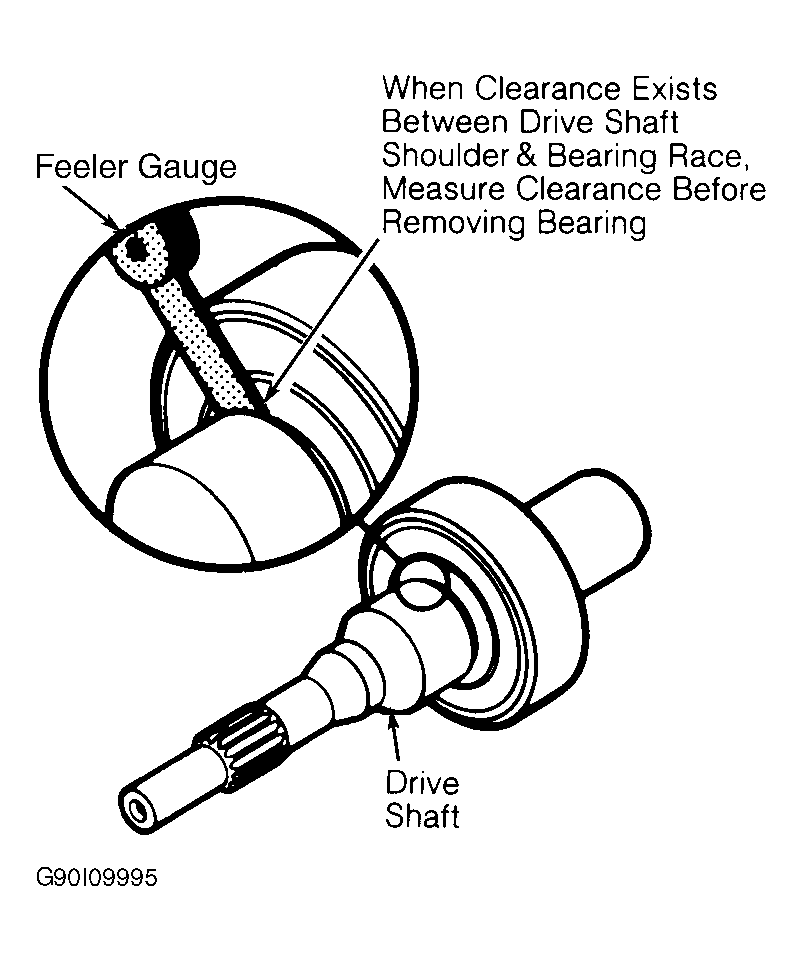

Remove power steering pump (if necessary to allow clearance for pulley removal). See POWER STEERING PUMP . Remove pump pulley. See POWER STEERING PUMP PULLEY . Remove bearing retaining ring. Removal drive shaft and bearing assembly. Use screwdriver to pry seal out of body. Remove and discard seal. If replacing bearing, measure clearance (if any) between drive shaft shoulder and bearing inner race. See Figure.
