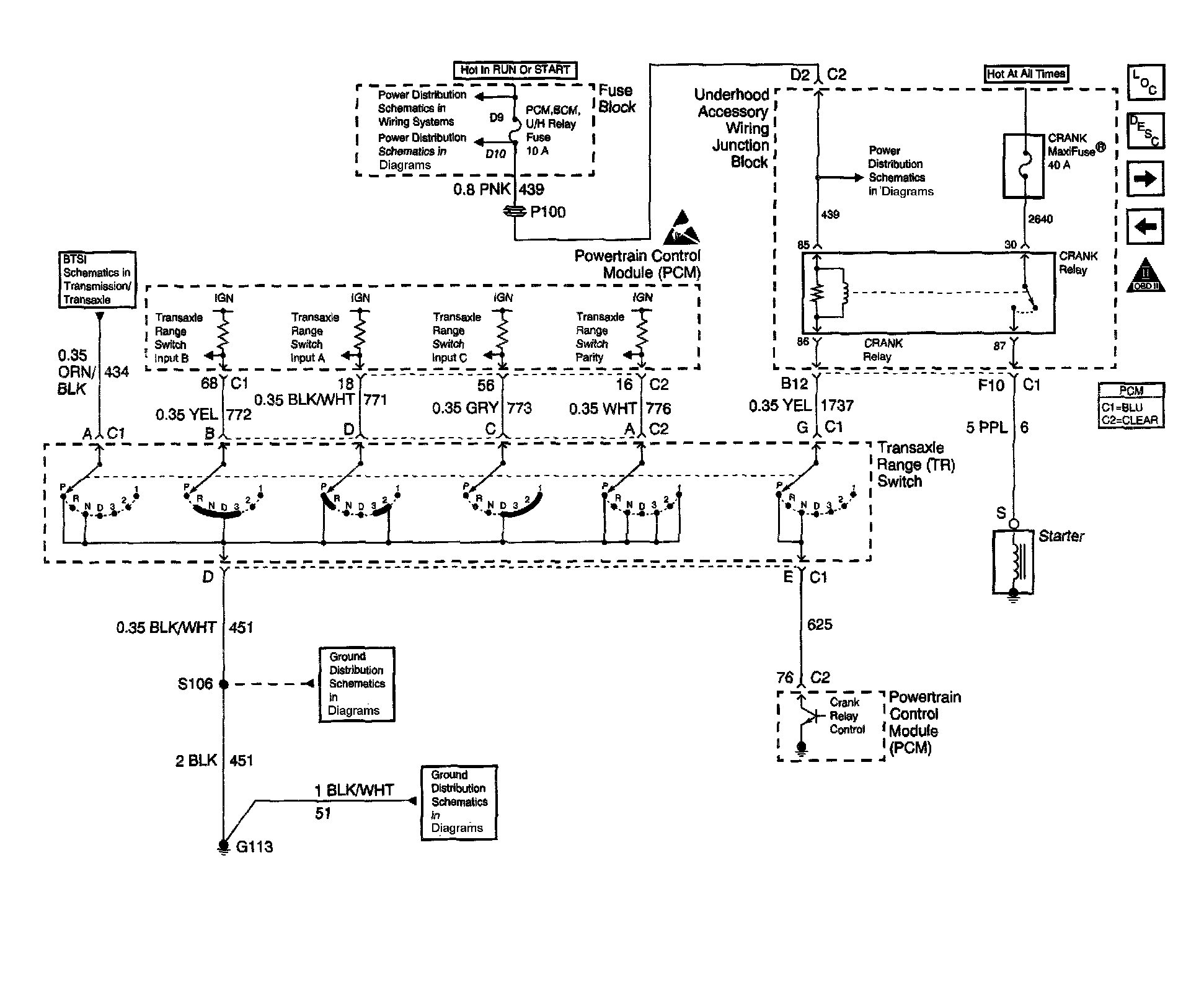

Transmission Controls Schematics (Power, Ground and Crank Relay
Transmission Controls Schematics (Power, Ground and Crank Relay
