Impala V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>

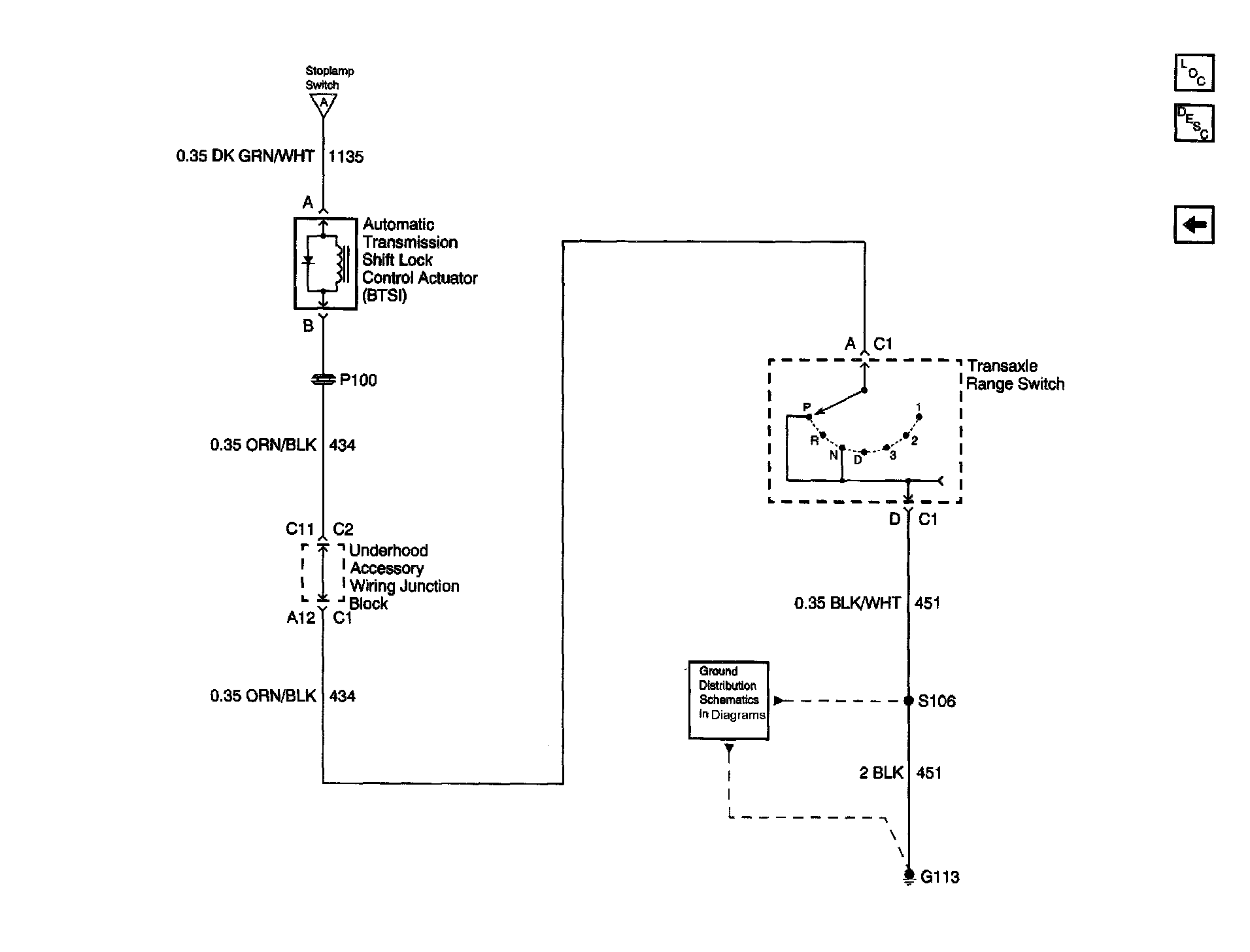

Shift Lock Control Schematics (4 Doors)
Shift Lock Control Schematics (4 Doors)
