Wheel Drive Shafts Replacement

Removal Procedure

- Tools Required
- J 2619-01 Slide Hammer
- J 28733-B Front Hub Spindle Remover
- J 29794 Extension
- J 33008 Axle Shaft Remover





Caution: To prevent personal injury and/or component damage, do not allow the weight of the vehicle to load the front wheels, or attempt to operate the vehicle, when the wheel drive shaft(s) or wheel drive shaft nut(s) are removed. To do so may cause the inner bearing race to separate, resulting in damage to brake and suspension components and loss of vehicle control.

Important: Prevent the seals (boots) from contacting the other components in order to prevent damage to the seals (boots).

1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
2. Remove the wheel and the tire. Refer to Tire and Wheel Removal and Installation in Steering and Suspension.
3. Remove the stabilizer shaft link. Refer to Stabilizer Shaft Link Replacement in Steering and Suspension.

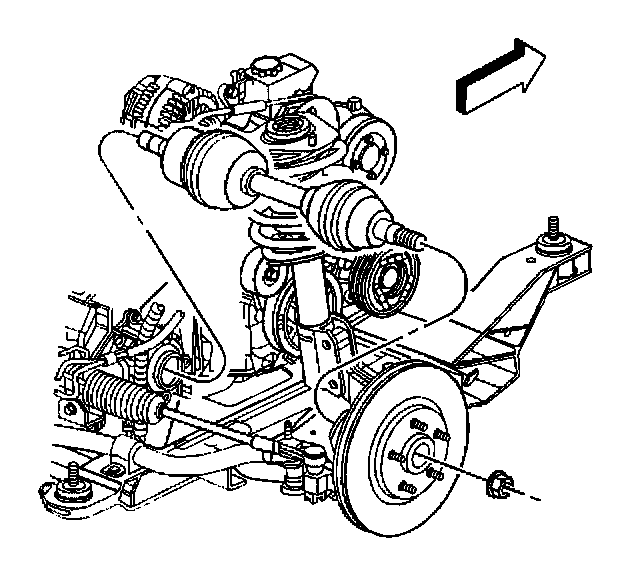

4. Remove the front wheel drive shaft nut. Insert a drift or a flat-bladed tool into the caliper and the rotor to prevent the rotor from turning.
5. Disconnect the outer tie rod assembly from the steering knuckle. Refer to Tie Rod End Replacement - Outer in Steering and Suspension.
6. Separate the ball joint from the steering knuckle. Refer to Lower Ball Joint Replacement in Steering and Suspension.

Caution: Do not attempt to move vehicle with drive axle(s) removed from wheel bearing. Wheel(s) could fall off, dropping vehicle to the ground and causing personal injury or damage to the vehicle.

7. Separate the front wheel drive axle from the front wheel drive shaft bearing using the J 28733-B. The nut can be partially reinstalled to protect the threads.





8. Remove the front wheel drive axle from the transaxle.
- Right Side:
Use the J 33003, the J29794 and the J2619-01 to separate the axle from the transaxle.
- Left Side:
- Use the frame for leverage.
- Place a flat-bladed tool in the groove on the front wheel drive shaft tripot joint (inner joint).
- Separate the front wheel drive axle from the transaxle.


Installation Procedure

Important: Prevent the boots (seals) from contacting the other components in order to prevent damage to the boots (seals).





1. Seat the front wheel drive axle into the transaxle.
2. Verify that the front wheel drive shaft retaining ring is properly seated.
Grasp the inner housing and pull the inner housing outboard. Do not pull on the front wheel drive axle shaft.
The front wheel drive axle will remain in place when the front wheel drive shaft retaining ring is properly seated.
3. Install the front wheel drive axle into the front wheel drive shaft bearing.
4. Connect the ball joint to the steering knuckle. Refer to Lower Ball Joint Replacement in Steering and Suspension.
5. Connect the outer tie rod assembly to the steering knuckle. Refer to Tie Rod End Replacement - Outer in Steering and Suspension.

Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

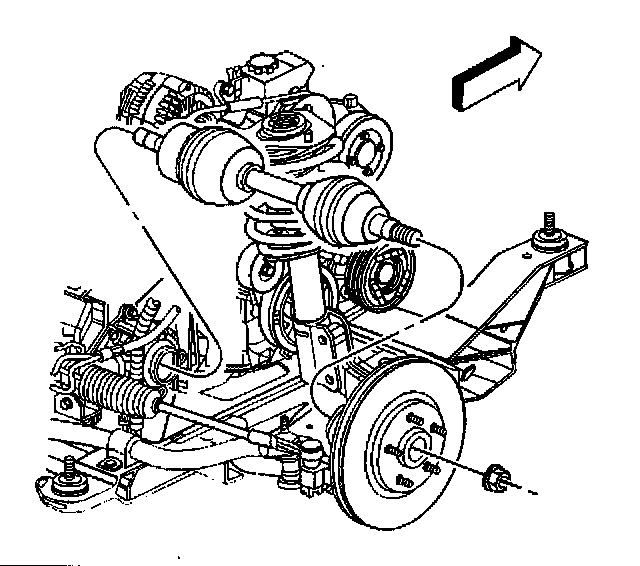

6. Install a new front wheel drive shaft nut. Insert a drift or a flat-bladed tool into the caliper and the rotor to prevent the rotor from turning.
- Tighten the front wheel drive shaft nut to 215 Nm (159 ft. lbs.).
7. Install the stabilizer shaft link. Refer to Stabilizer Shaft Link Replacement in Steering and Suspension.
8. Install the wheel and the tire. Refer to Tire and Wheel Removal and Installation in Steering and Suspension.
9. Lower the vehicle.
10. Inspect the transaxle fluid level.
11. Inspect the wheel alignment. Refer to Measuring Wheel Alignment in Steering and Suspension.
