2. Transmission Support Fixture Assemble

^ Tools Required
- J 3289-20 Holding Fixture Base
- J 28664-8 Transmission Holding Fixture

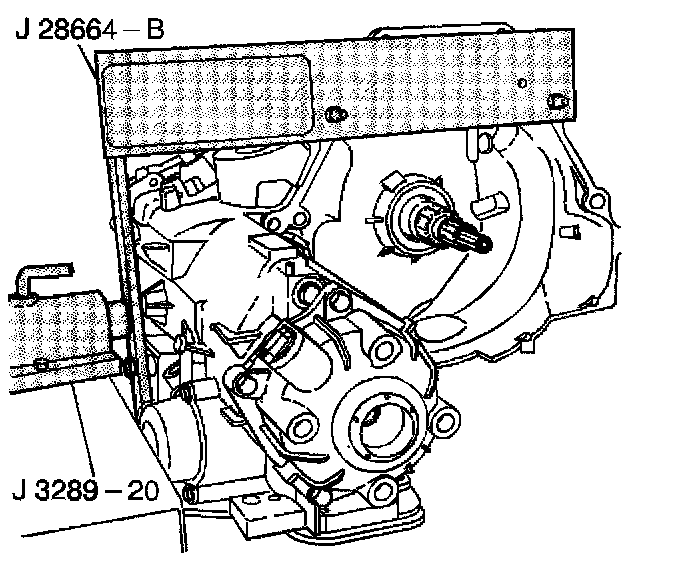

1. Install J 28664-B onto the transmission.
2. Install the transmission and holding fixture into J 3289-20.
3. Insert the pin into J 3289-20 in order to hold the transmission in the desired position.
