Front Suspension

If any of the following items require replacement during service, you are not required to check or adjust the camber and the toe:
- The strut bumper
- The strut shield
- The upper spring seat
- The strut bearing
- The spring insulators

If any of the following items require replacement during service, you must check/adjust the camber and the toe:
- The strut damper
- The knuckle
- The control arm
- The strut mount
- The spring

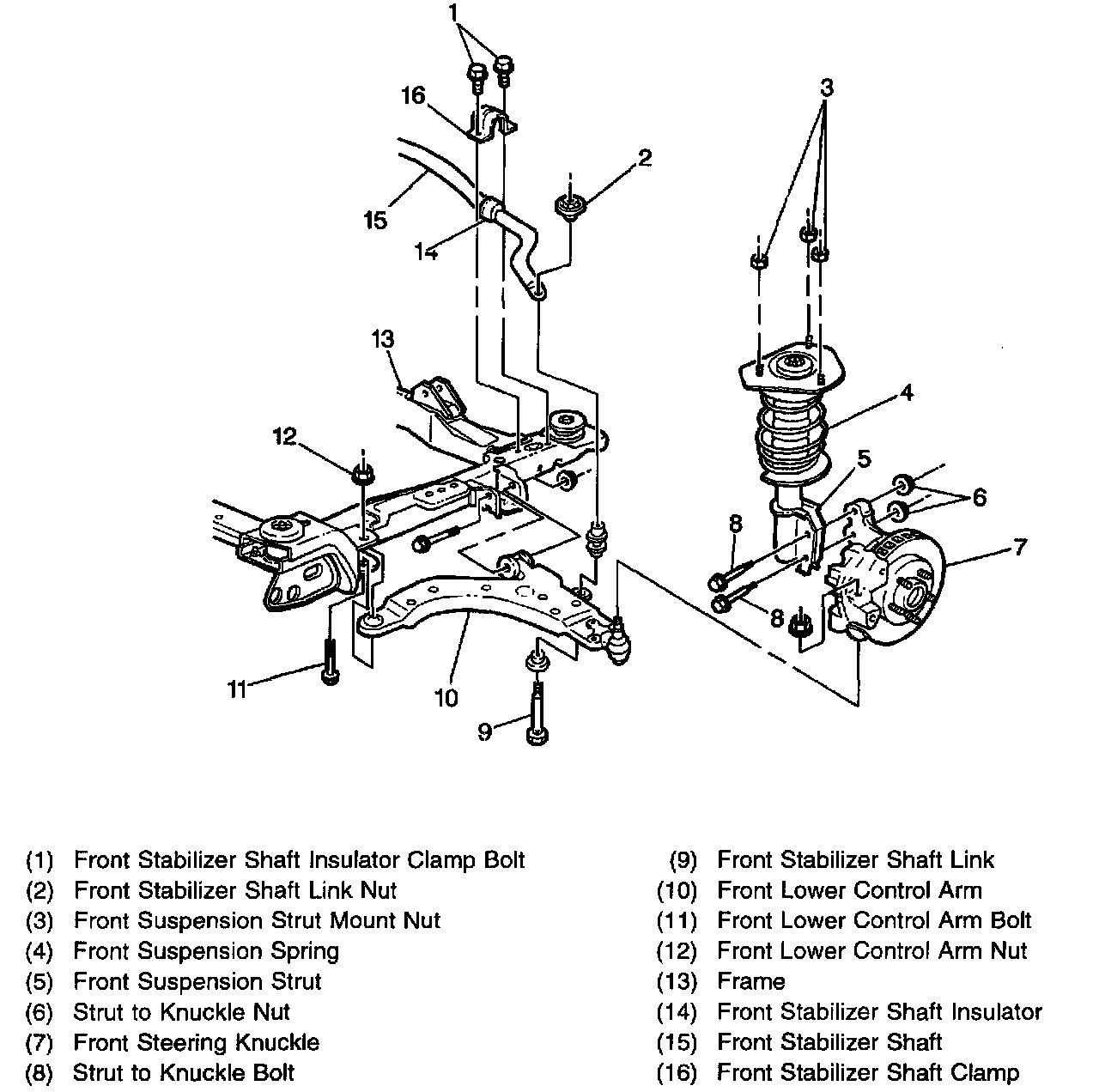

Front Suspension
