Fuses
>>
DIC/RKE
DIC/RKE

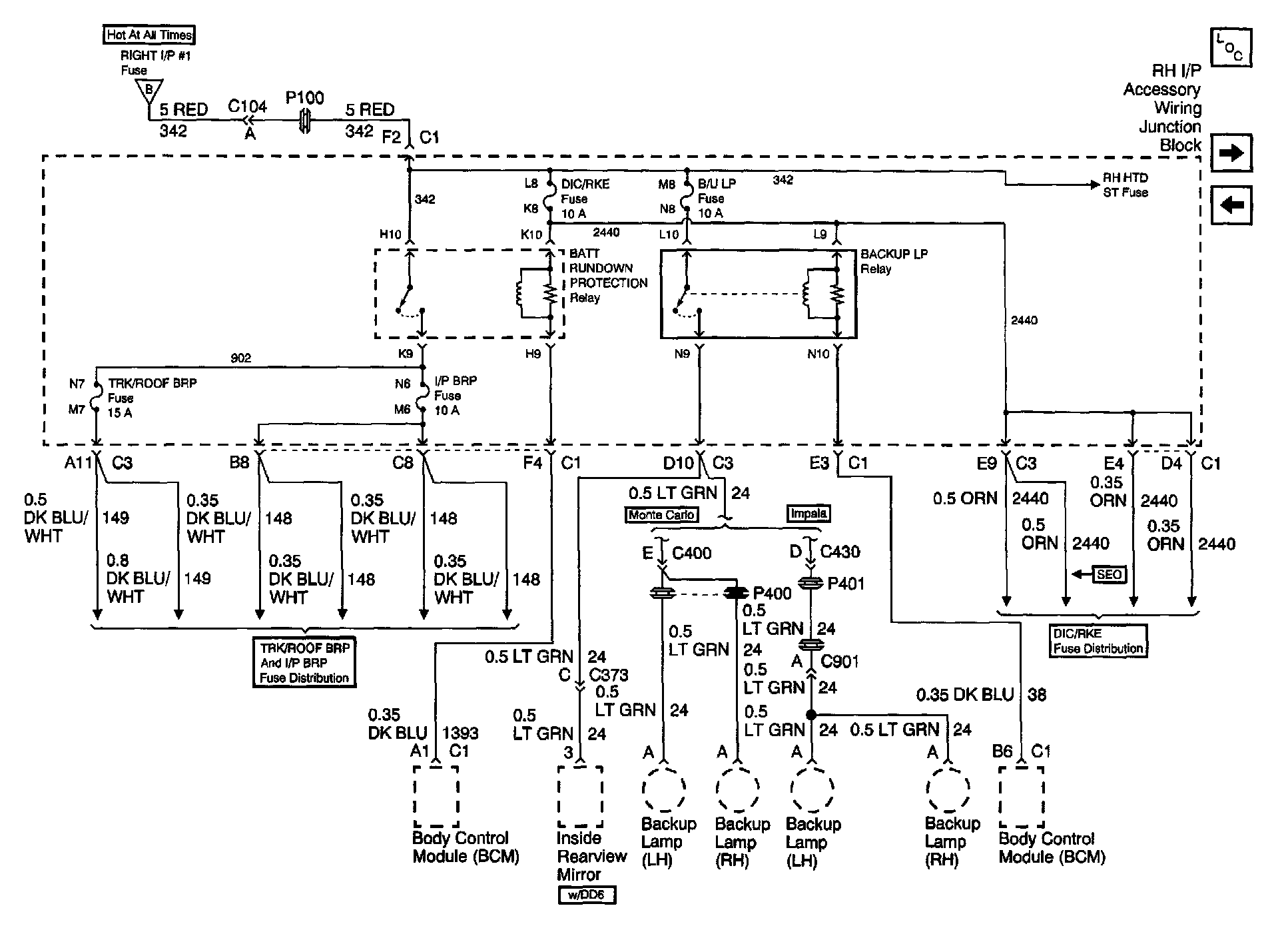

Power Distribution Schematics: DIC/RKE, B/U LP, TRK/ROOF BRP And I/P BRP Fuses, BATT RUNDOWN PROTECTION And BACKUP LP Relays:
