BATT RUN DN PRTN
BATT RUN DN PRTN

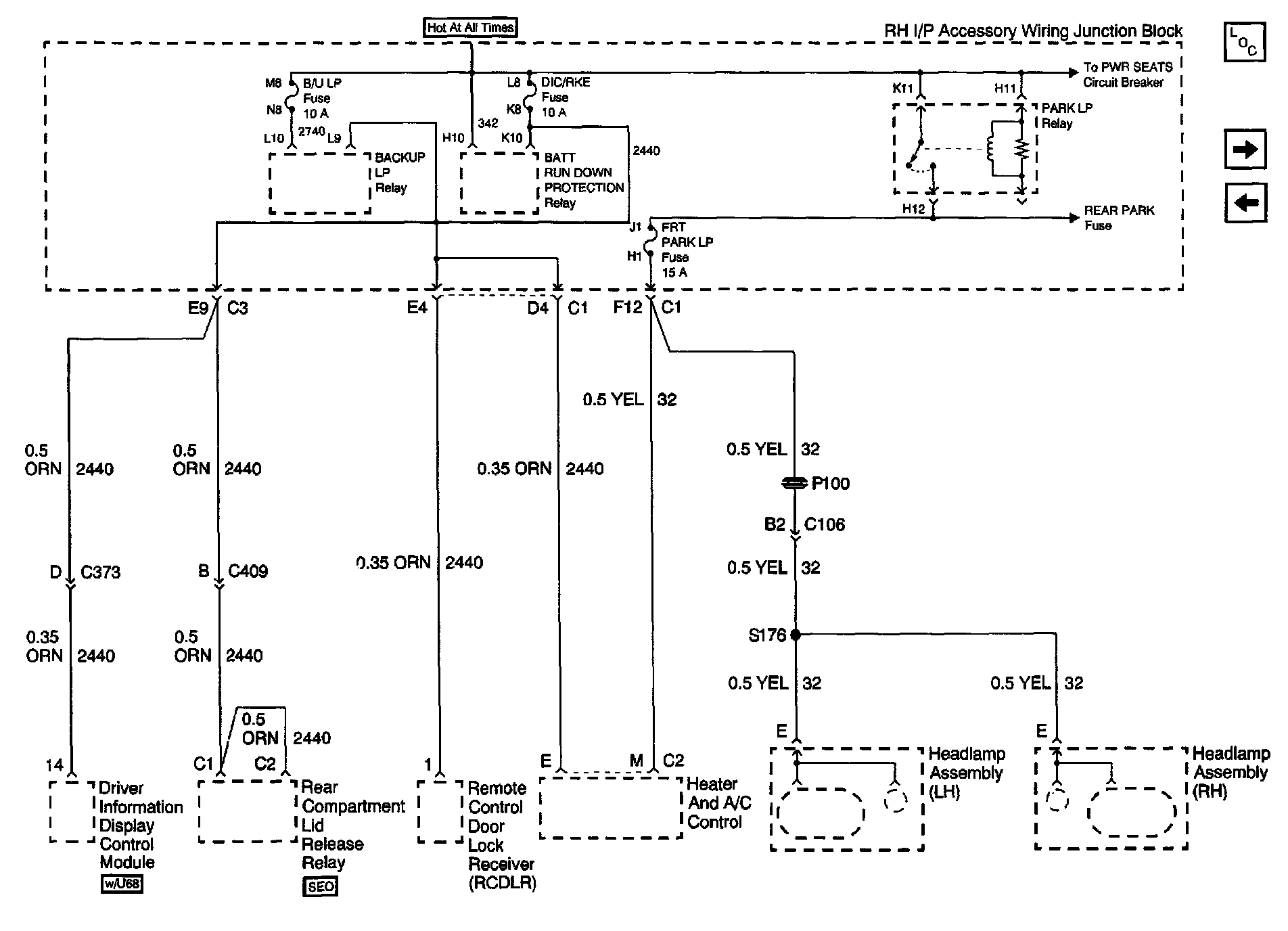

Power Distribution Schematics: B/U LP, DIC/RKE And FRT PARK LP Fuses, And BACKUP LP, BATT RUN DOWN PROTECTION And PARK LP Relays:
