Ignition Switch

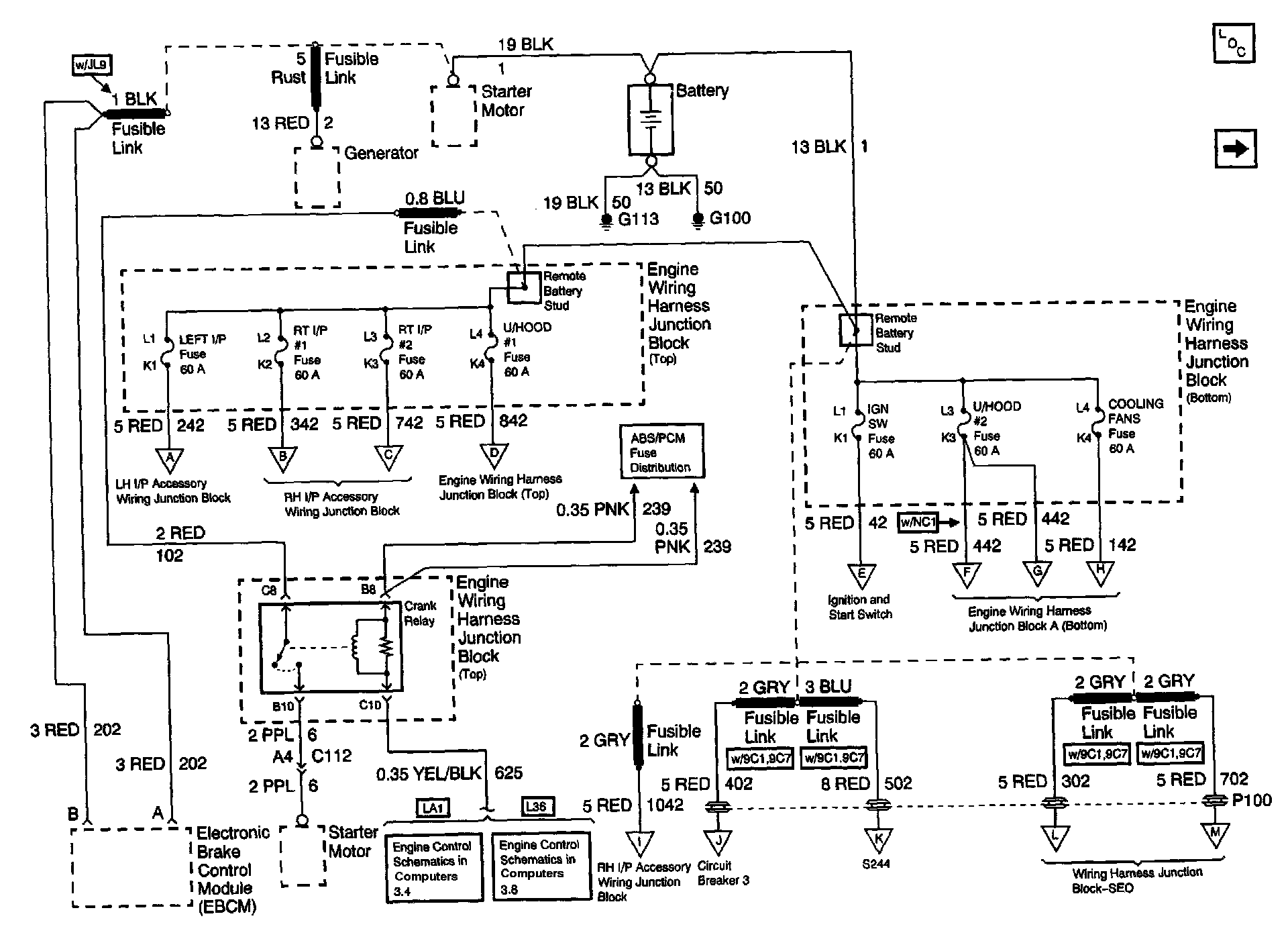

Power Distribution Schematics: Battery, EBCM, Engine Wiring Harness Junction Blocks (Bottom And Top), Fusible Links, Generator, Remote Battery Stud And Starter:

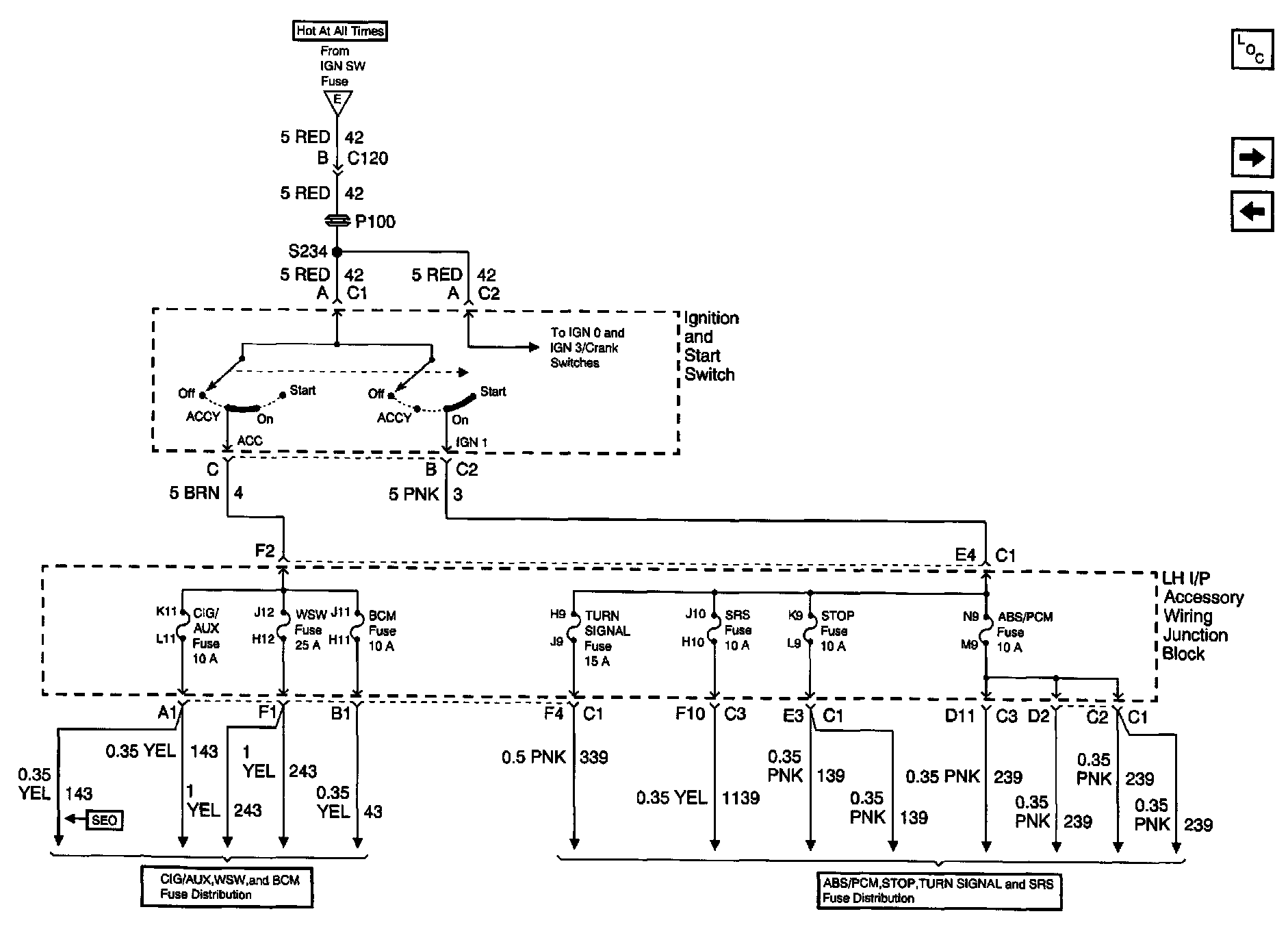

Power Distribution Schematics: Ignition And Start Switch And CIG/AUX, WSW, BCM, TURN SIGNAL, SRS, STOP And ABS/PCM Fuses:

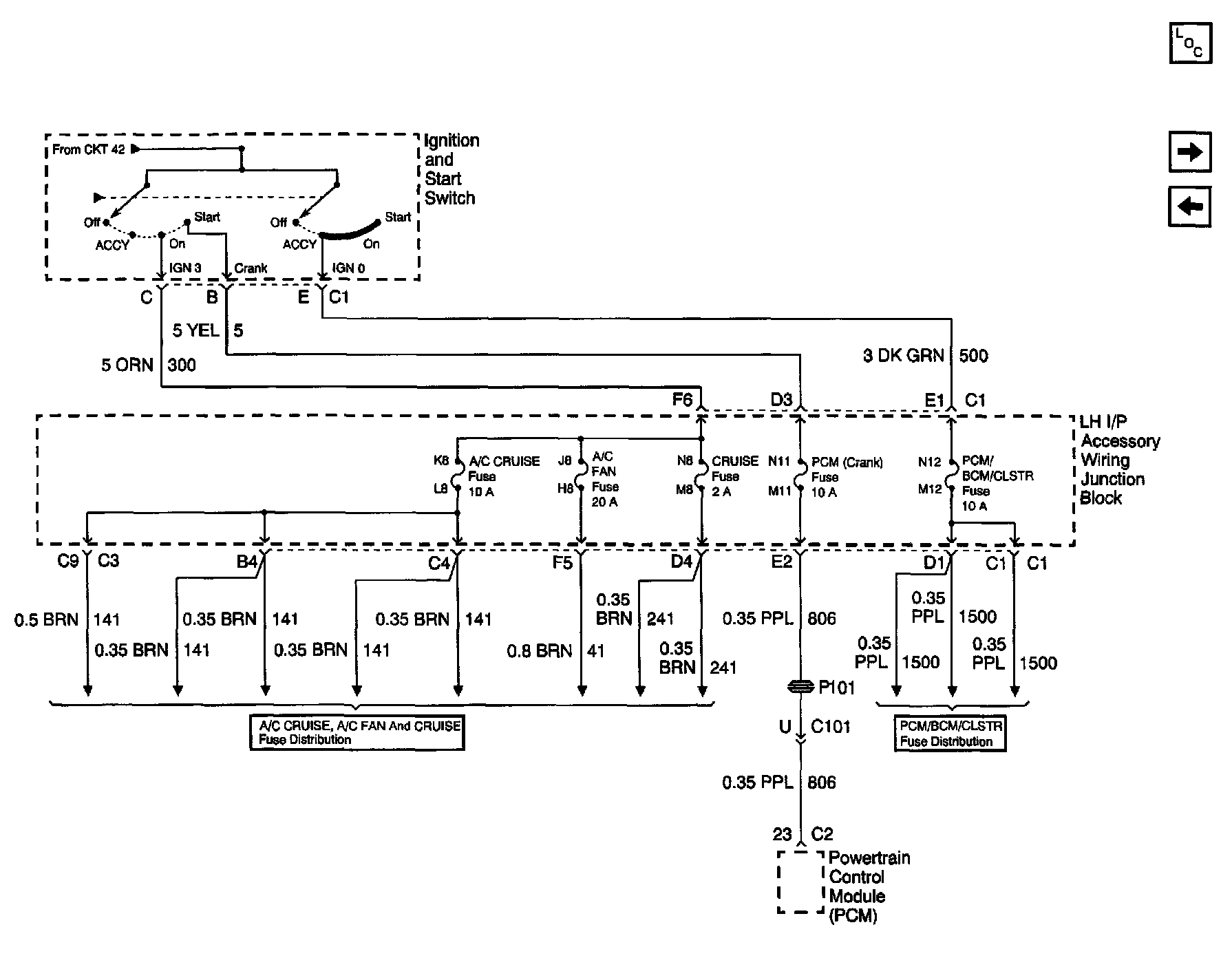

Power Distribution Schematics: Ignition And Start Switch And A/C CRUISE, A/c FAN, CRUISE, PCM (Crank) And PCM/BCM/CLSTR Fuses:
