Monte Carlo

REMOVAL PROCEDURE
1. Open the seat belt guide loop cover.






2. Remove the seat belt guide loop bolt.
3. Remove the seat belt guide loop from the inner upper quarter.
4. Remove the rear quarter lower trim panel.
5. Remove the trim cover from the rear quarter lower trim panel.






6. Remove the seat belt through the opening in the rear quarter lower trim panel.

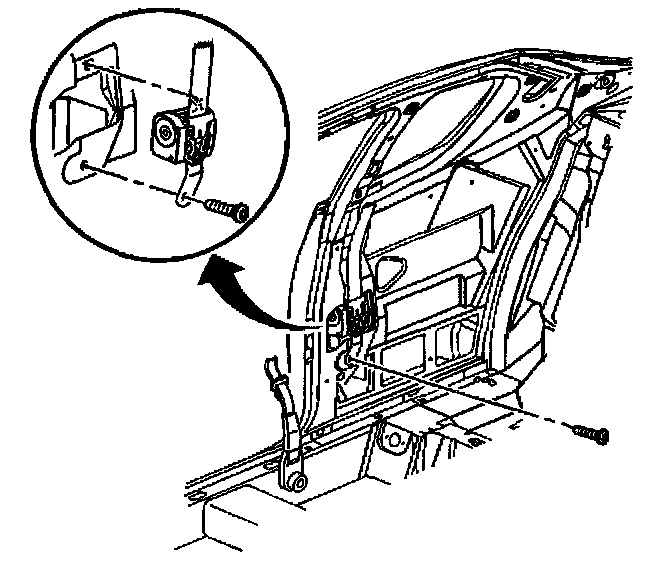

7. Remove the bolt from the seat belt retractor.
8. Remove the seat belt retractor from the rear quarter inner panel.




9. Remove the bolt from the seat belt anchor.
10. Remove the seat belt from the vehicle.

INSTALLATION PROCEDURE




1. Instal the seat belt anchor to the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the bolt to the seat belt anchor.

Tighten
Tighten the seat belt anchor bolt to 42 N.m (31 lb ft).




3. Install the seat belt retractor to the rear quarter inner panel.
4. Install the bolt to the seat belt retractor.

Tighten
Tighten the seat belt retractor bolt to 42 N.m (31 lb ft).




5. Install the seat belt through the opening in the rear quarter lower trim panel.
6. Install the trim cover to the rear quarter lower trim panel.
7. Install the rear quarter lower trim panel.
8. Position the seat belt guide loop to the rear quarter inner panel.






9. Install the guide loop bolt.

Tighten
Tighten the seat belt guide loop bolt to 42 N.m (31 lb ft).

10. Close the seat belt guide loop cover.
