Bracket Replacement - Knee Bolster (Driver)

REMOVAL PROCEDURE




1. Remove the LH instrument panel insulator.
2. Remove the steering column opening filler panel.
3. Remove the instrument panel driver knee bolster bracket screws (not shown).

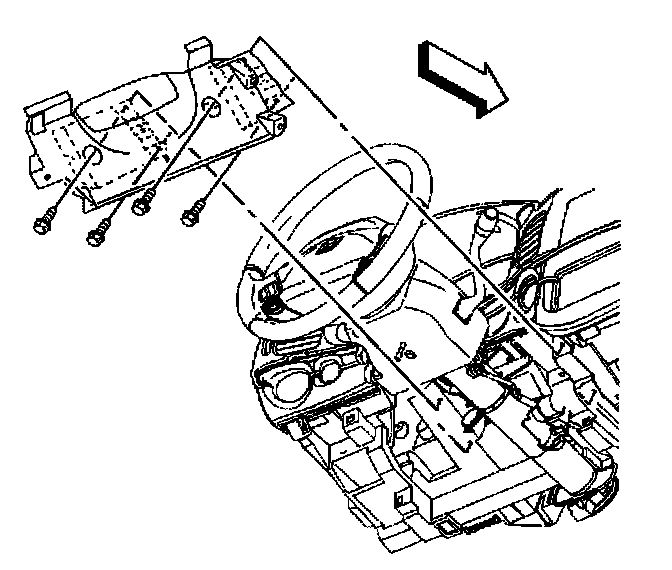

4. Remove the instrument panel knee bolster bracket bolts at the instrument carrier. Remove the instrument panel knee bolster bracket.

INSTALLATION PROCEDURE




1. Align the knee bolster bracket to the instrument panel.


IMPORTANT: Mandatory torque sequence indicated.

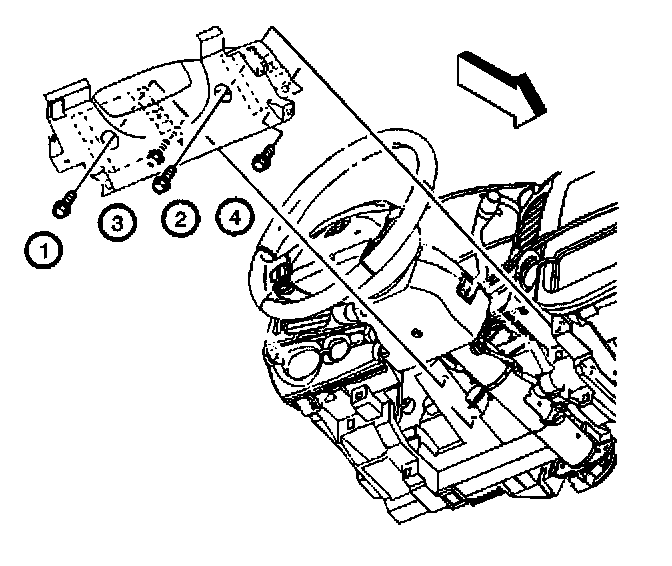

2. Install the knee bolster bracket bolts at the instrument carrier in the sequence shown.

Tighten
Tighten the driver knee bolster bracket-to-instrument carrier bolts to 10 N.m (89 lb in).

3. Install the instrument panel driver knee bolster bracket screws (not shown).

Tighten
Tighten the instrument panel driver knee bolster bracket screws to 10 N.m (89 lb in).

4. Install the steering column opening filler panel.
5. Install the LH instrument panel insulator.
