Power, Ground, Side Impact Sensor and Frontal Air bags)
Power, Ground, Side Impact Sensor and Frontal Air bags)

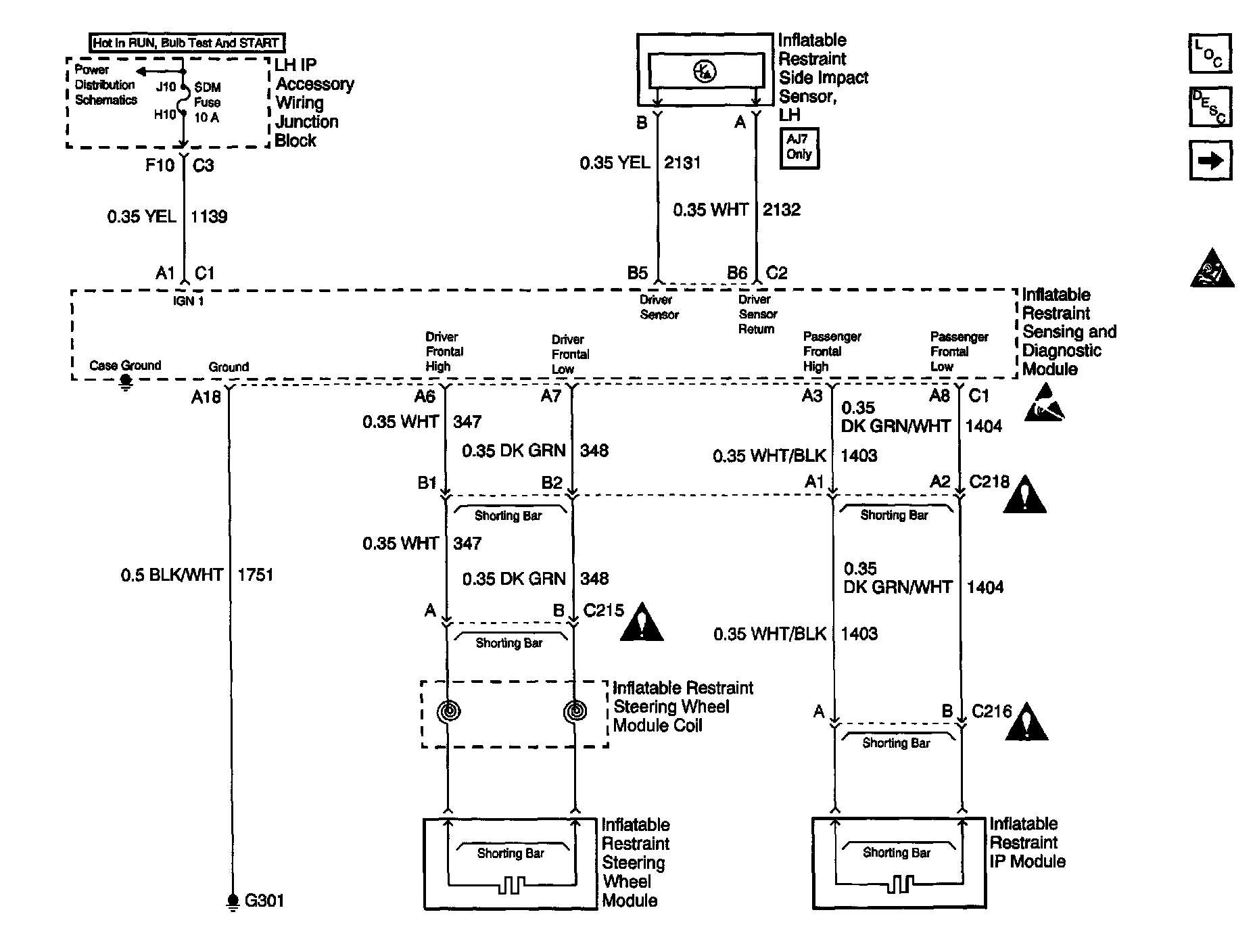

SIR Schematics: Power, Ground, Side Impact Sensor, and Frontal Air Bags:
