Horn Relay Fog LP Relay and Fog Lamp Switch
Horn Relay Fog LP Relay and Fog Lamp Switch

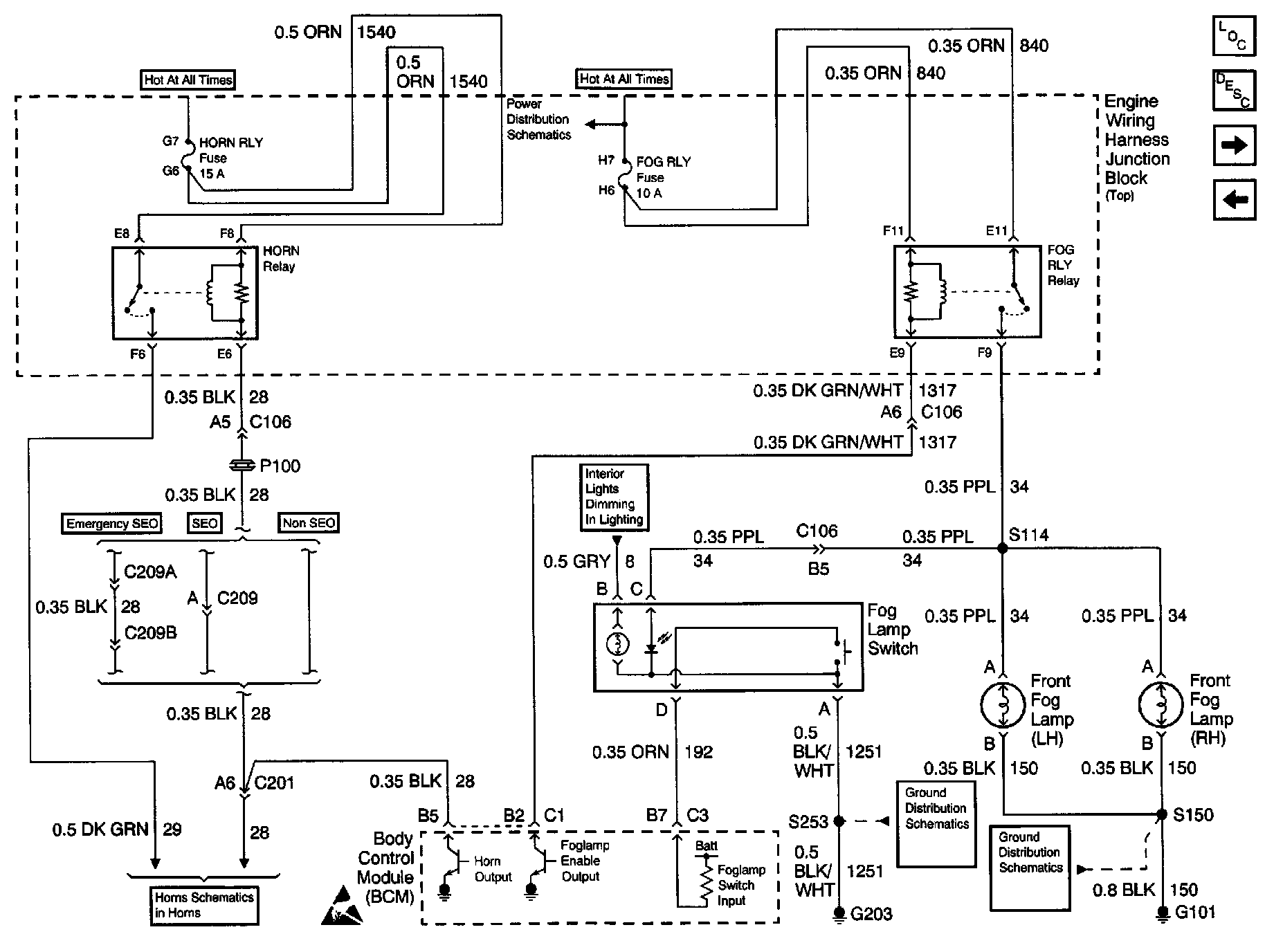

Body Control Module Schematics: HORN Relay FOG LP Relay And Fog Lamp Switch:
