Vacuum and Vapor Hose Diagrams

Emission Hose Routing:

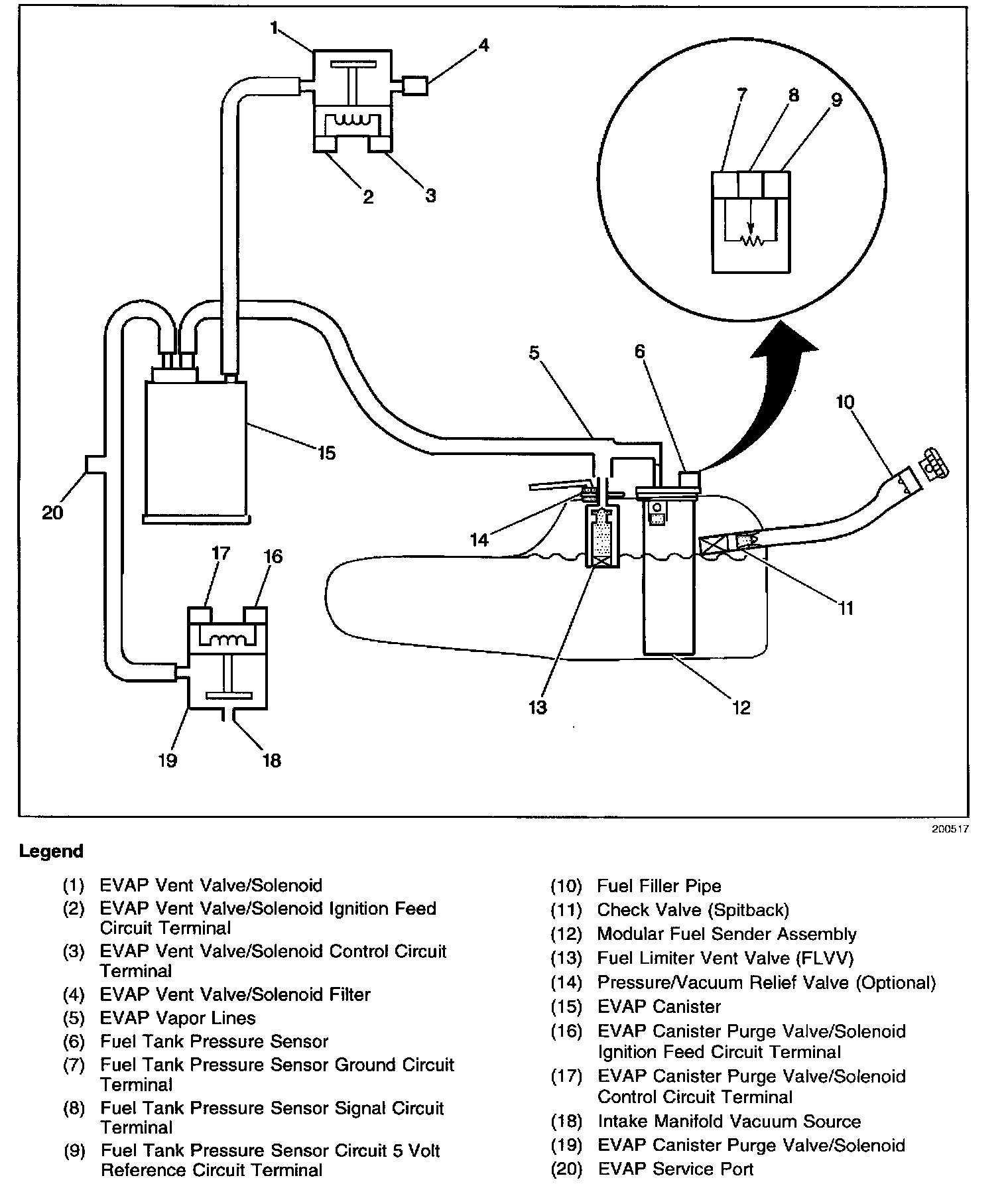

Emission Hose Routing Diagram (EVAP Control System Overview):
