Home >> Chevrolet >> 2000 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls >> VSS and Cruise Control

VSS and Cruise Control

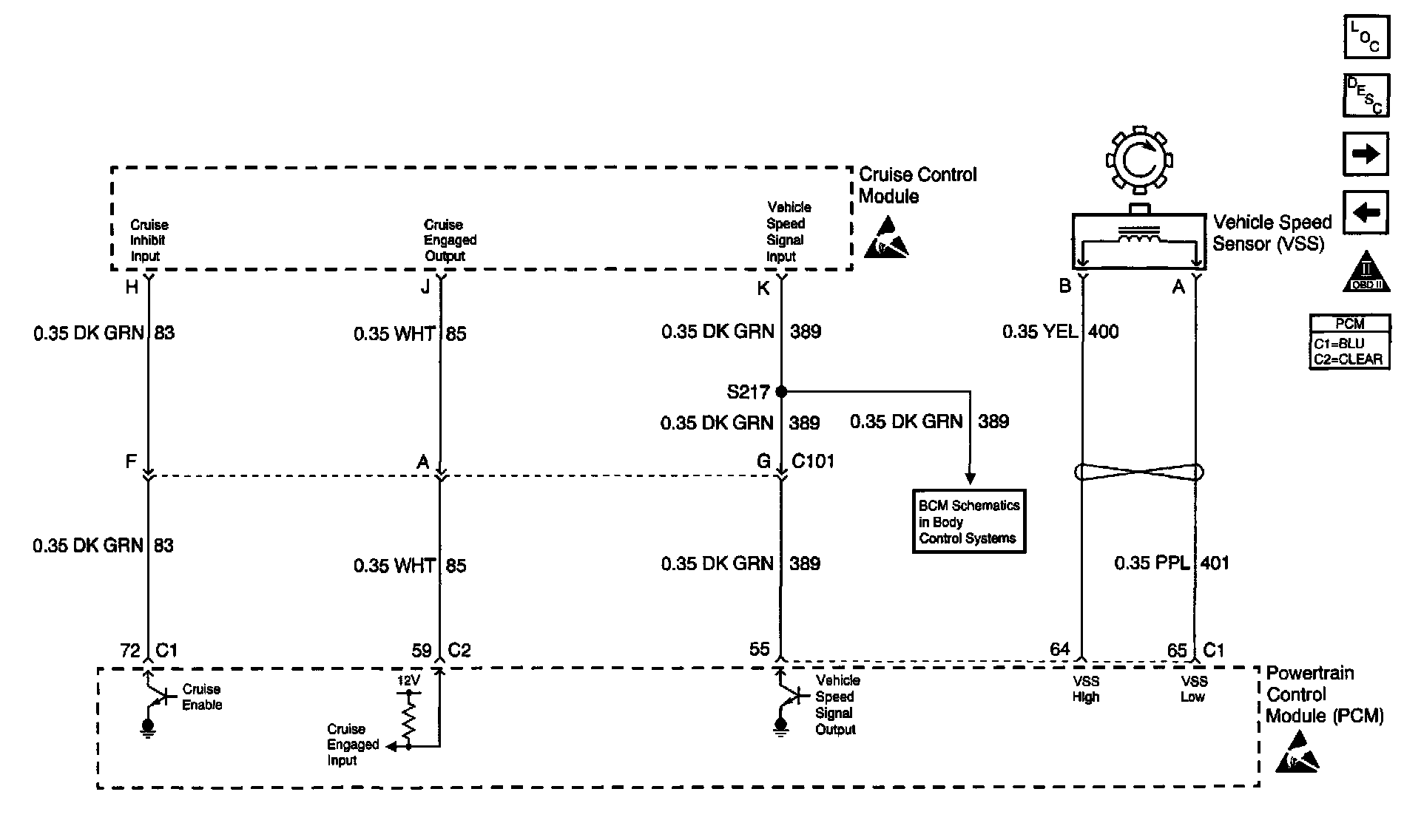

Engine Controls Schematics: VSS, Cruise:
