Impala V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Controls
>>

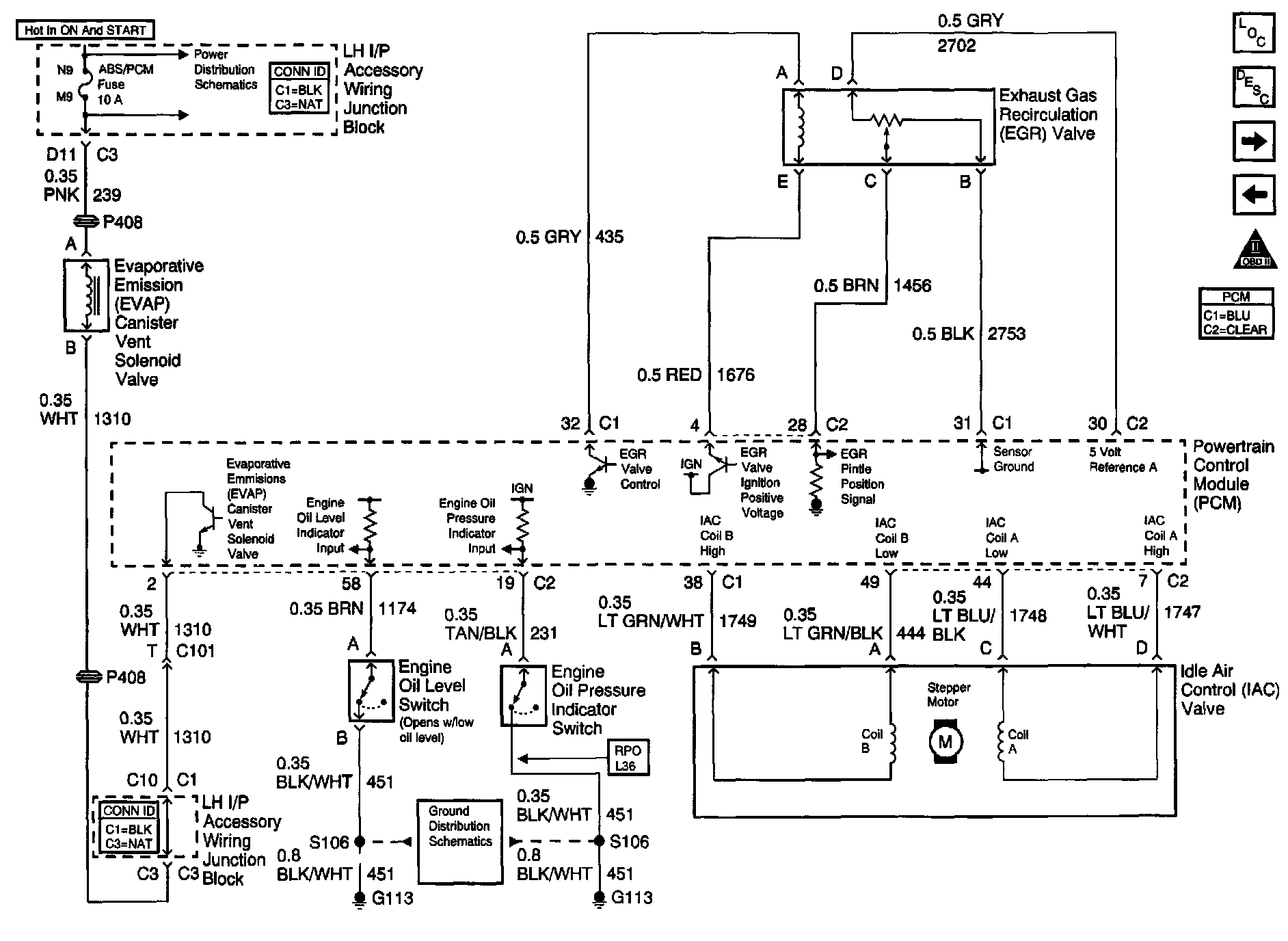

IAC, Engine Oil Level, Engine Oil Pressure, EGR, EVAP Vent
IAC, Engine Oil Level, Engine Oil Pressure, EGR, EVAP Vent
IAC, Engine Oil Level, Engine Oil Pressure, EGR, EVAP Vent:
