Impala V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Electric Cooling Fan Diagnosis
>>
Electric Cooling Fan Table #3
Electric Cooling Fan Table #3

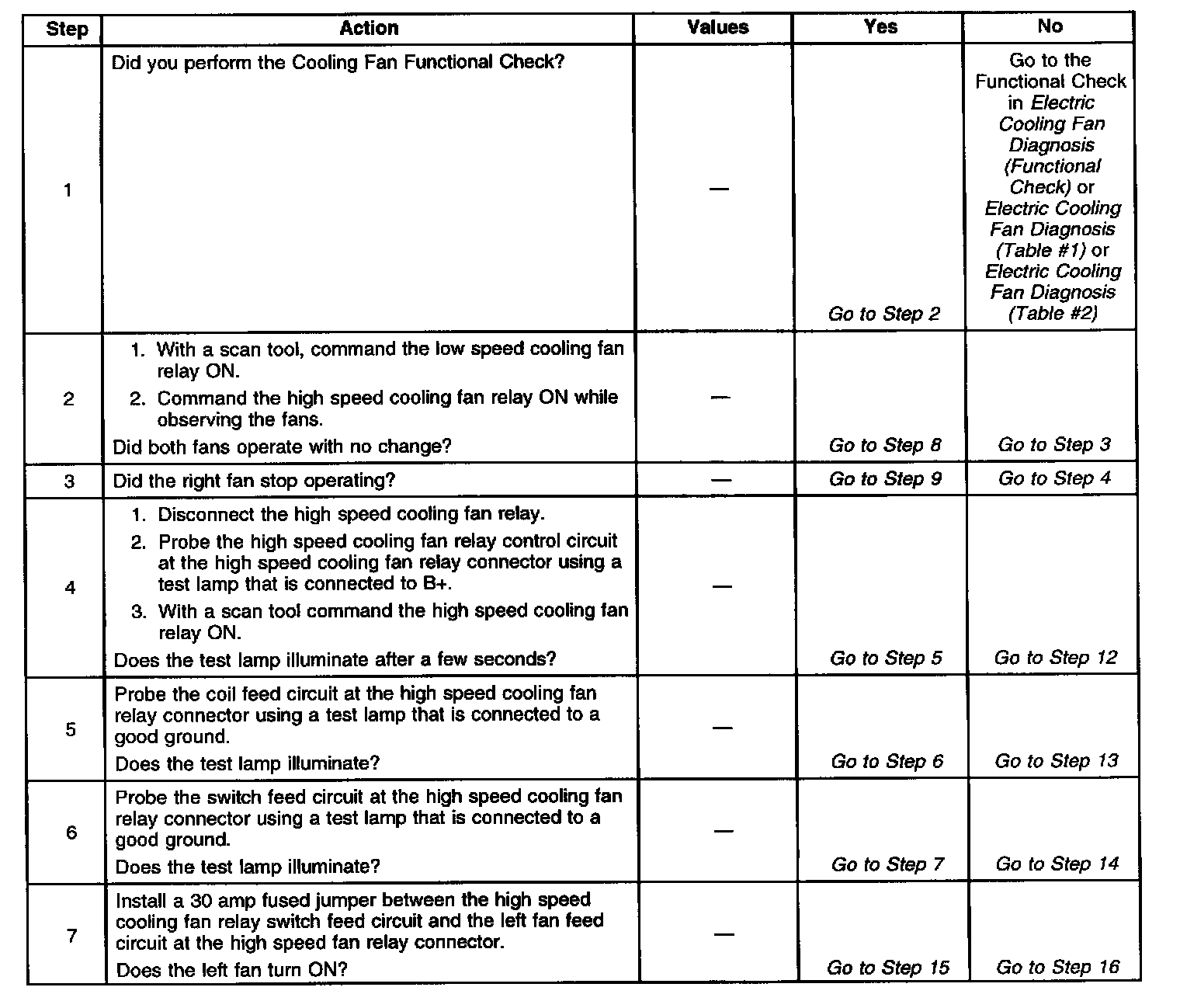

Diagnostic Chart (Part 1 Of 5):

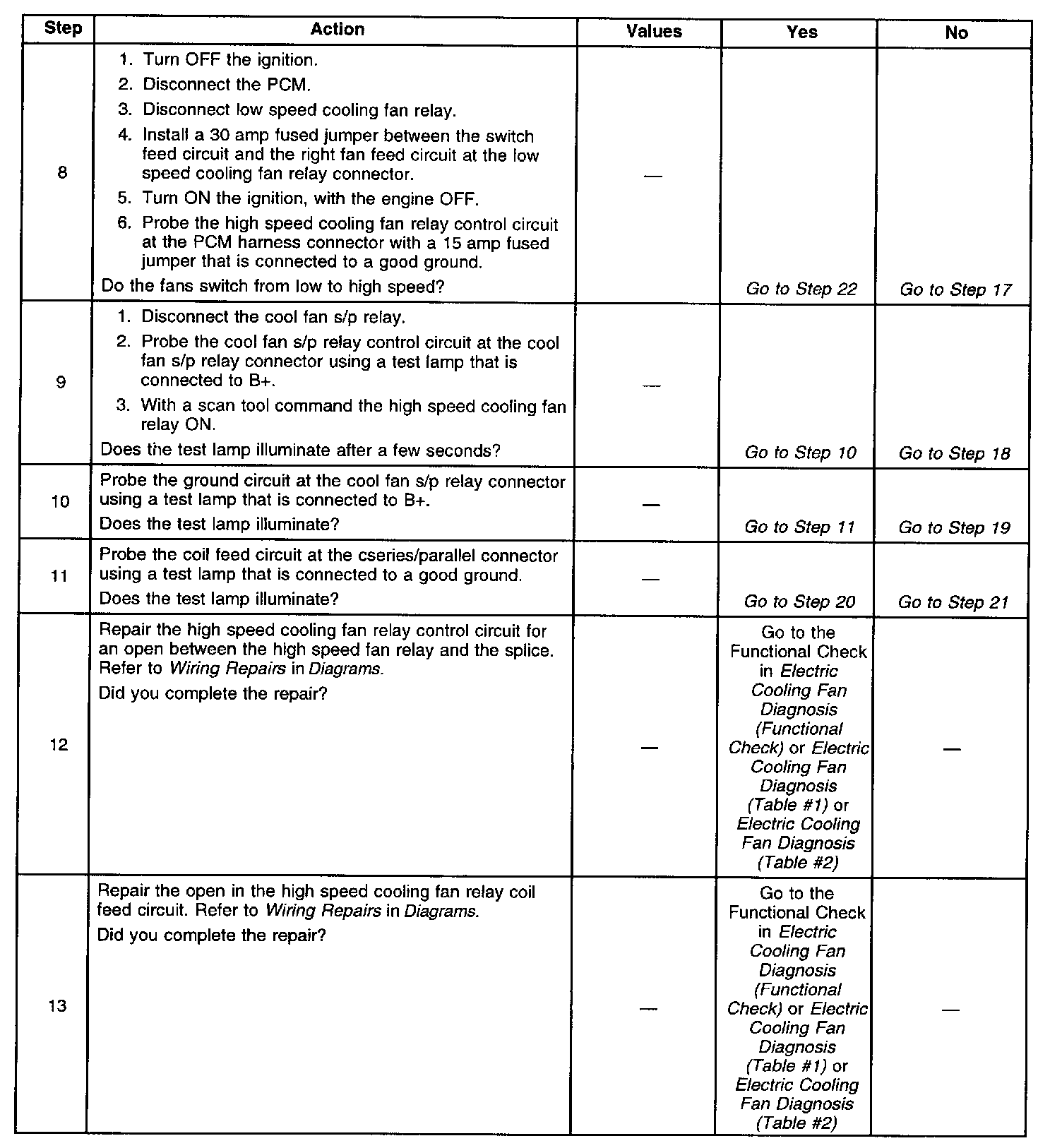

Diagnostic Chart (Part 2 Of 5):

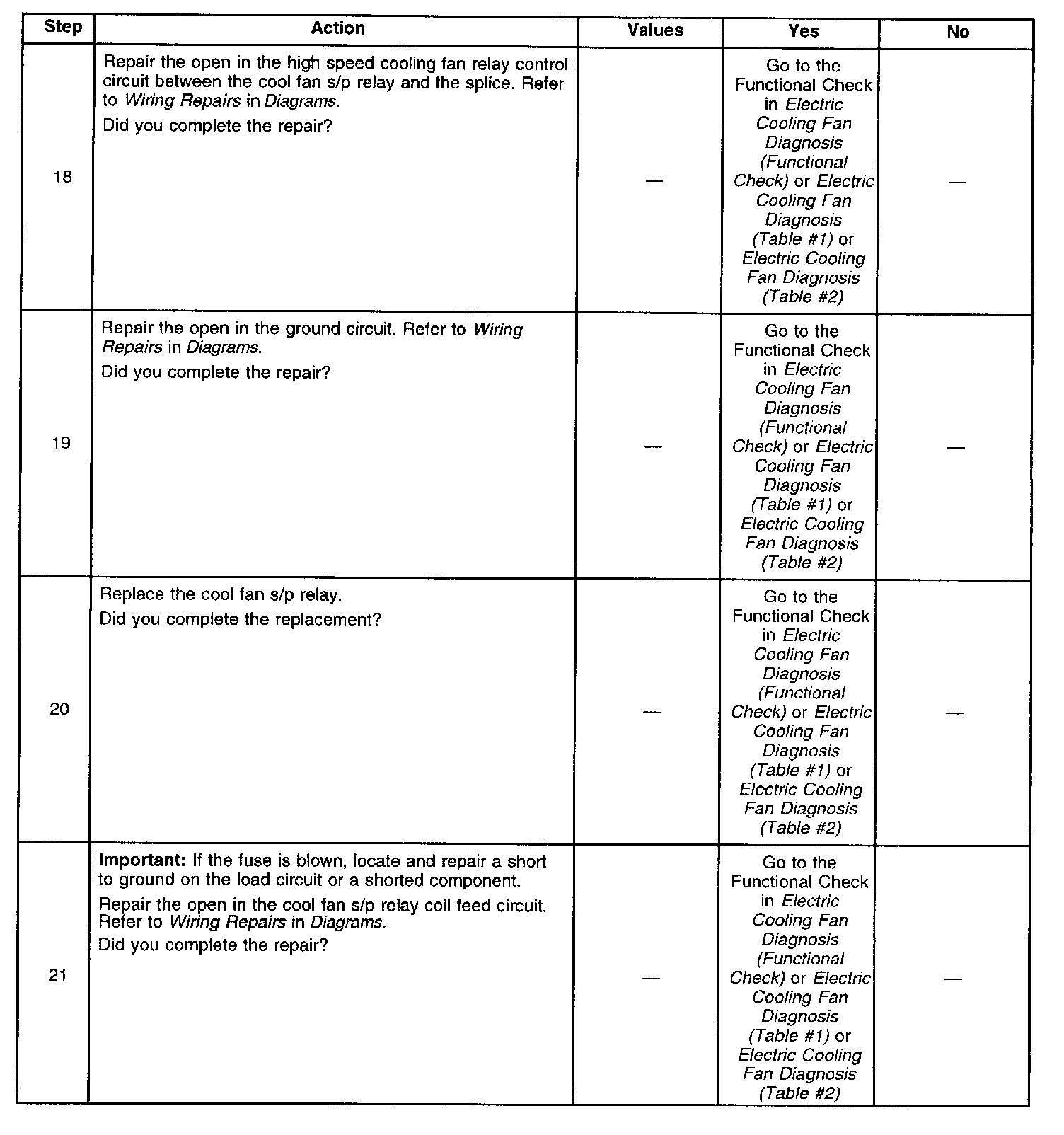

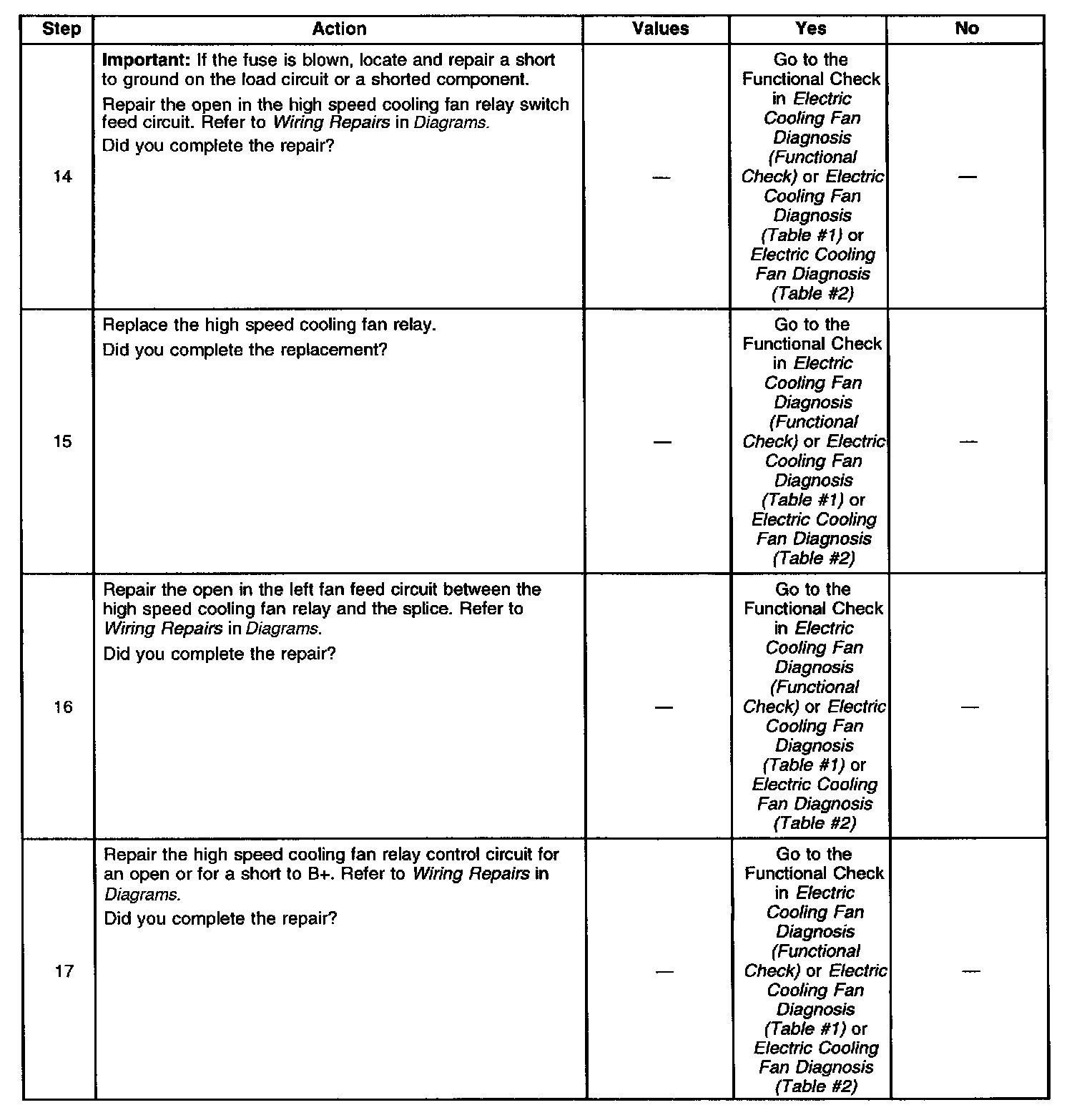

Diagnostic Chart (Part 3 Of 5):
Diagnostic Chart (Part 4 Of 5):

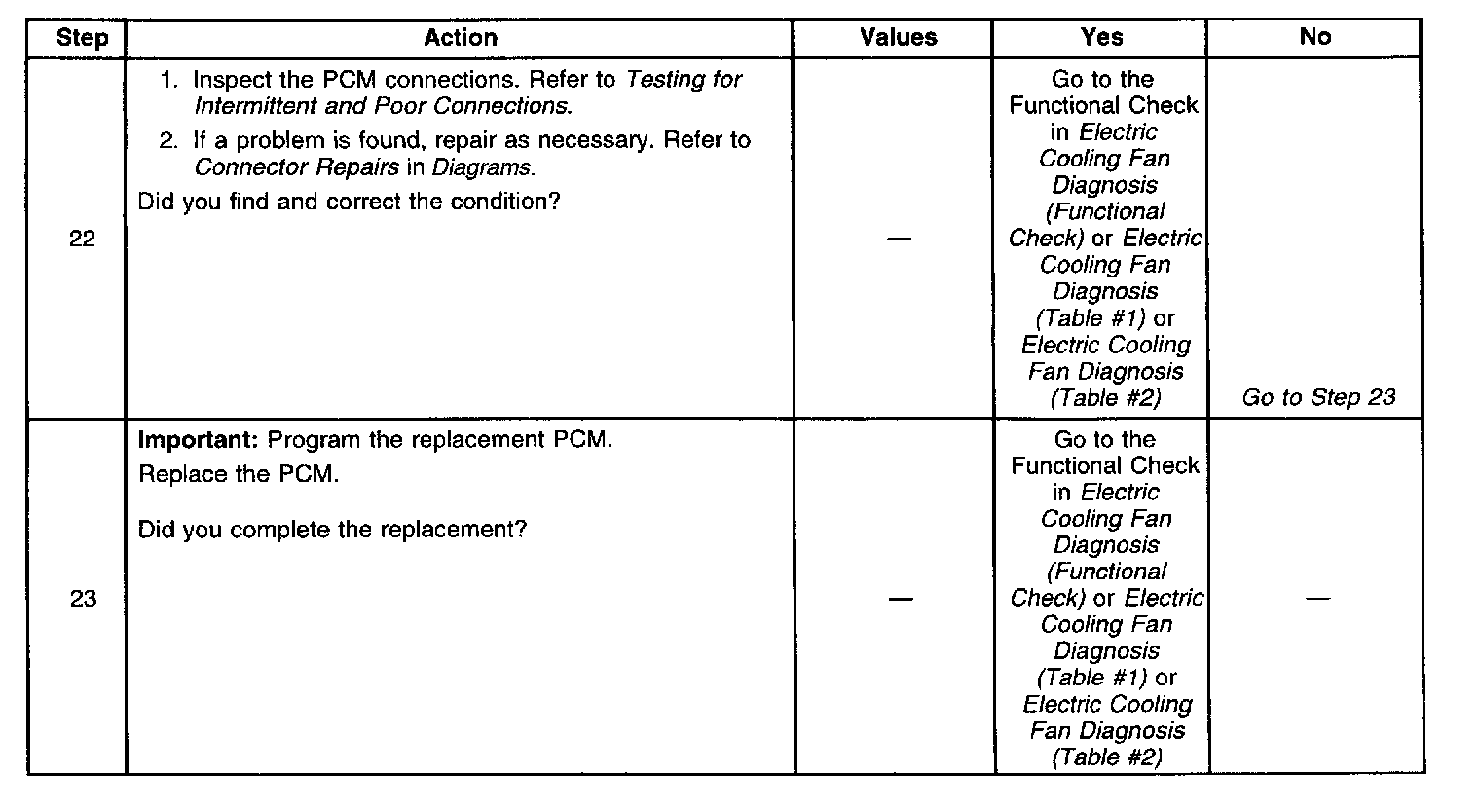

Diagnostic Chart (Part 5 Of 5):
