Electric Cooling Fan Diagnosis
>>
Electric Cooling Fan Table #1
Electric Cooling Fan Table #1

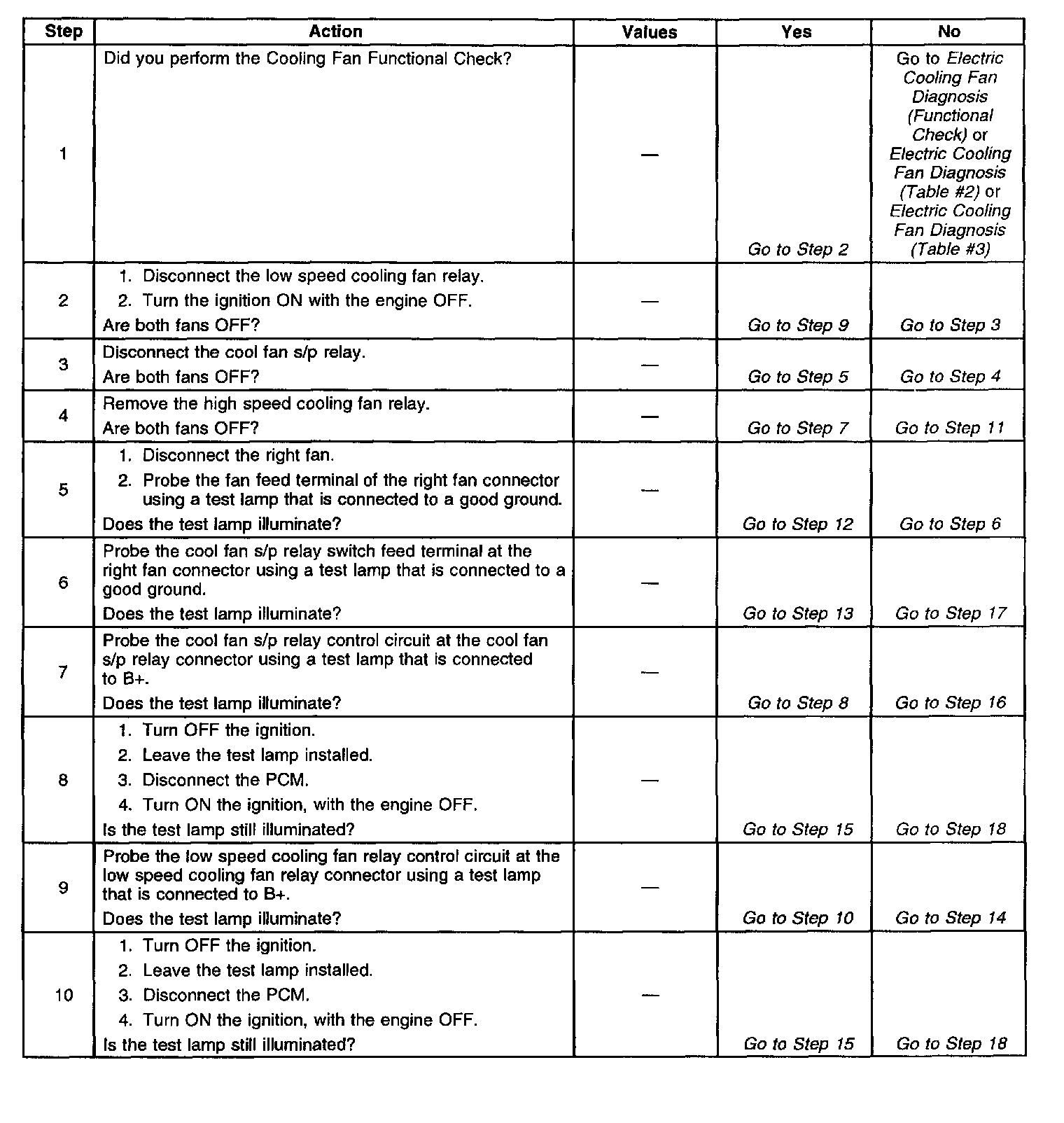

Diagnostic Chart (Part 1 Of 3):

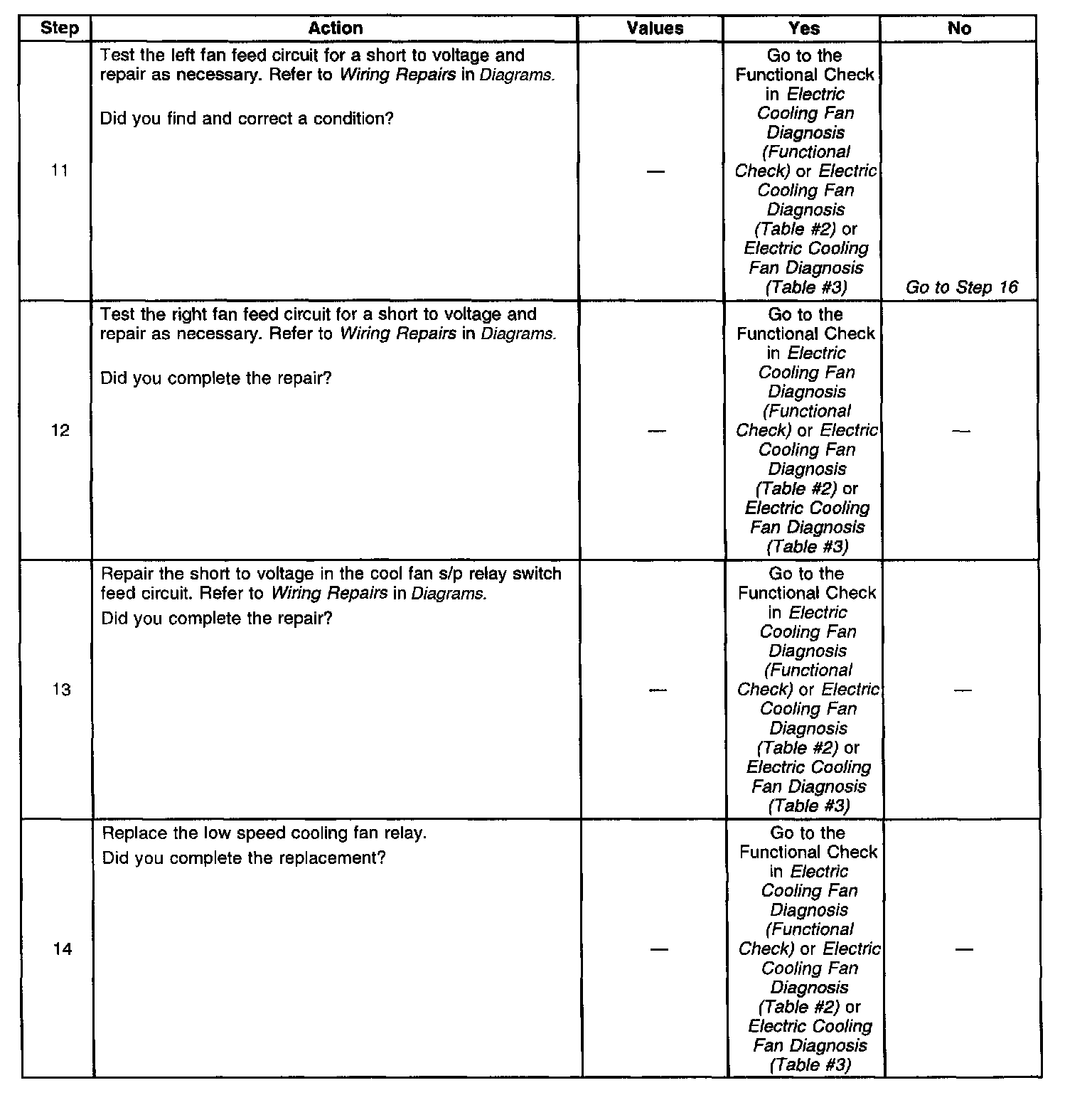

Diagnostic Chart (Part 2 Of 3):

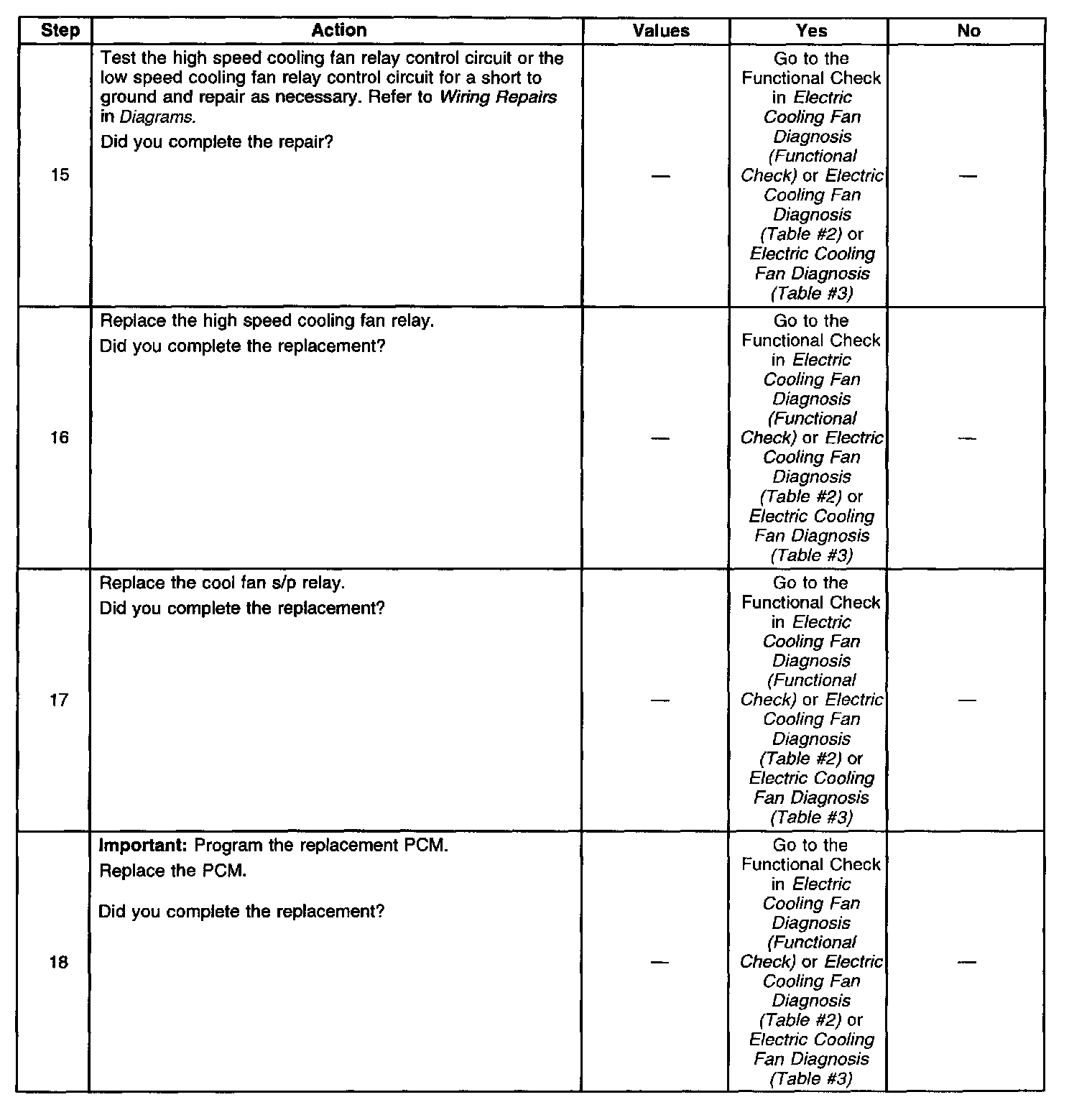

Diagnostic Chart (Part 3 Of 3):
