C301 (4-Door)
C301 (4-Door)

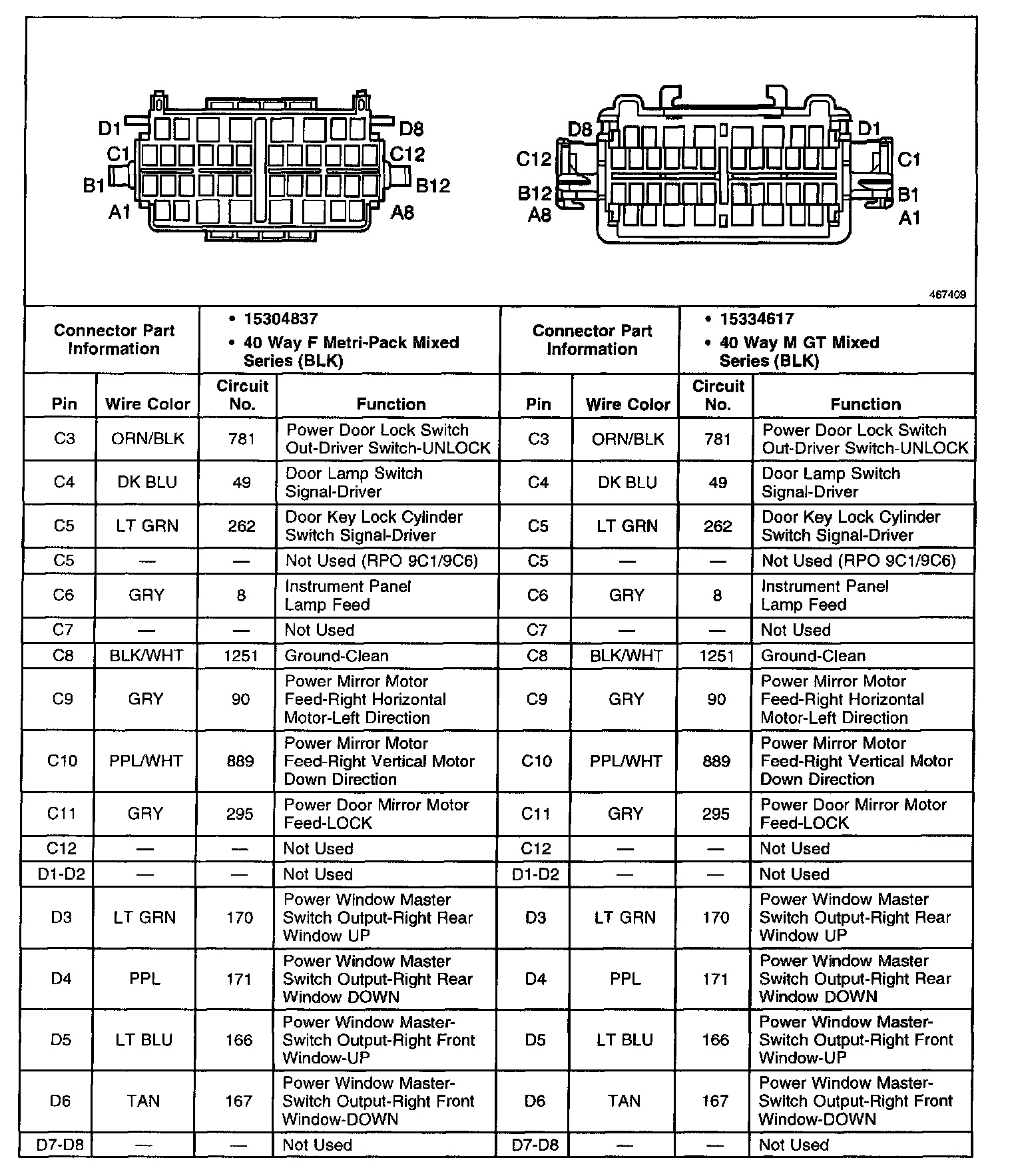

Inline Connector C301 (4-Door) (Part 1 Of 2):

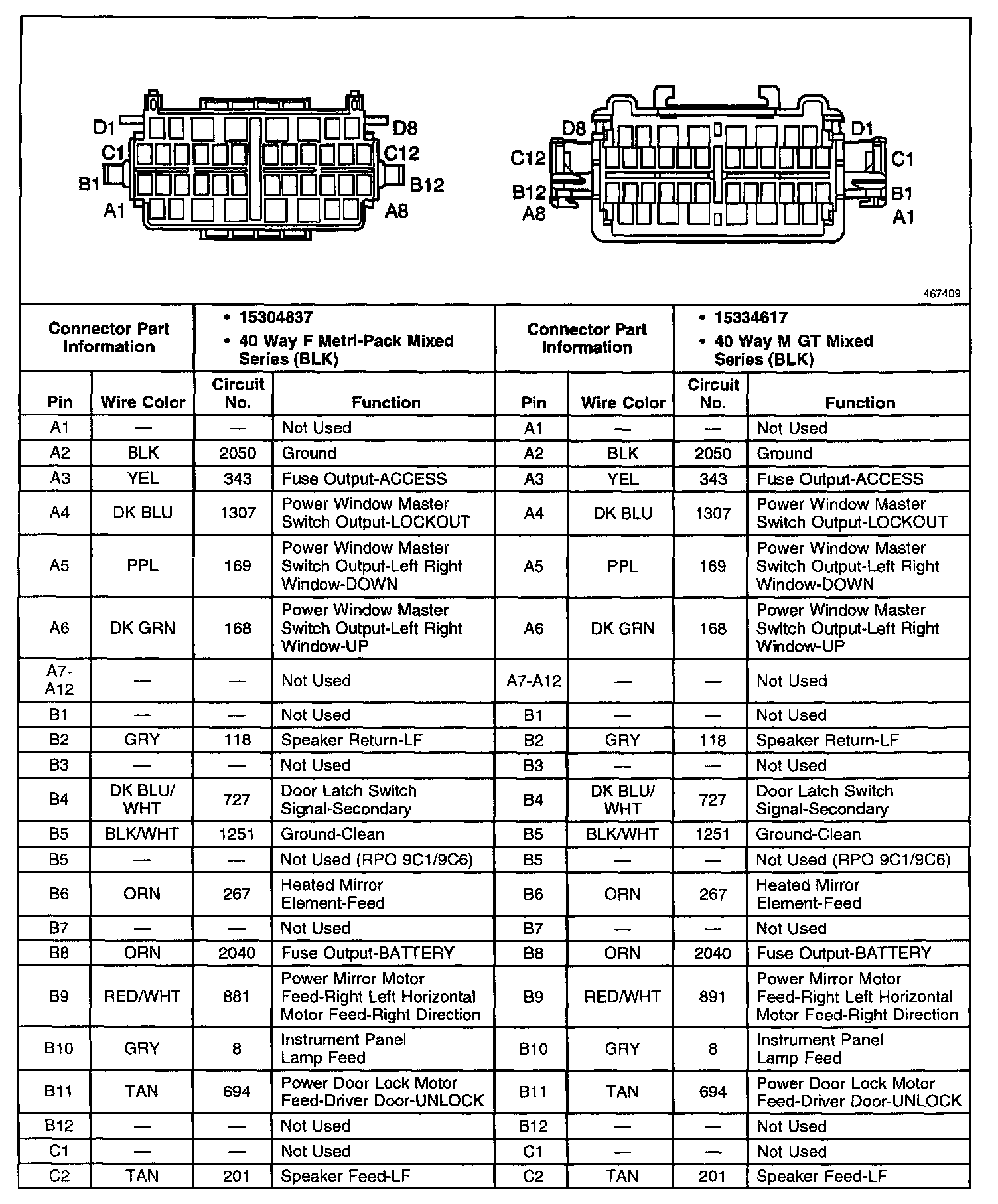

Inline Connector C301 (4-Door) (Part 2 Of 2):
