C101 (W/ RPO L36)

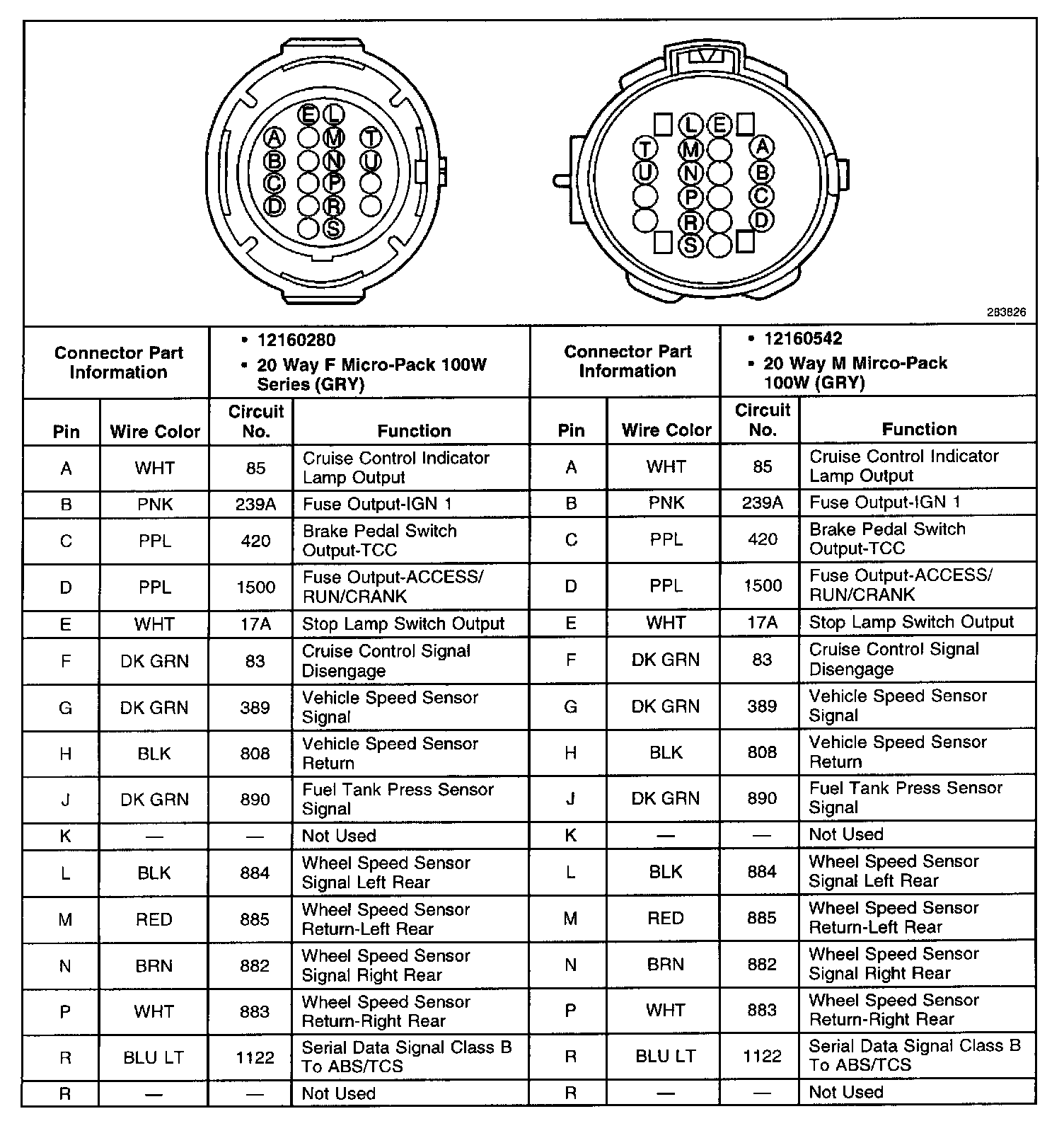

Inline Connector C101 (Part 1 Of 2):

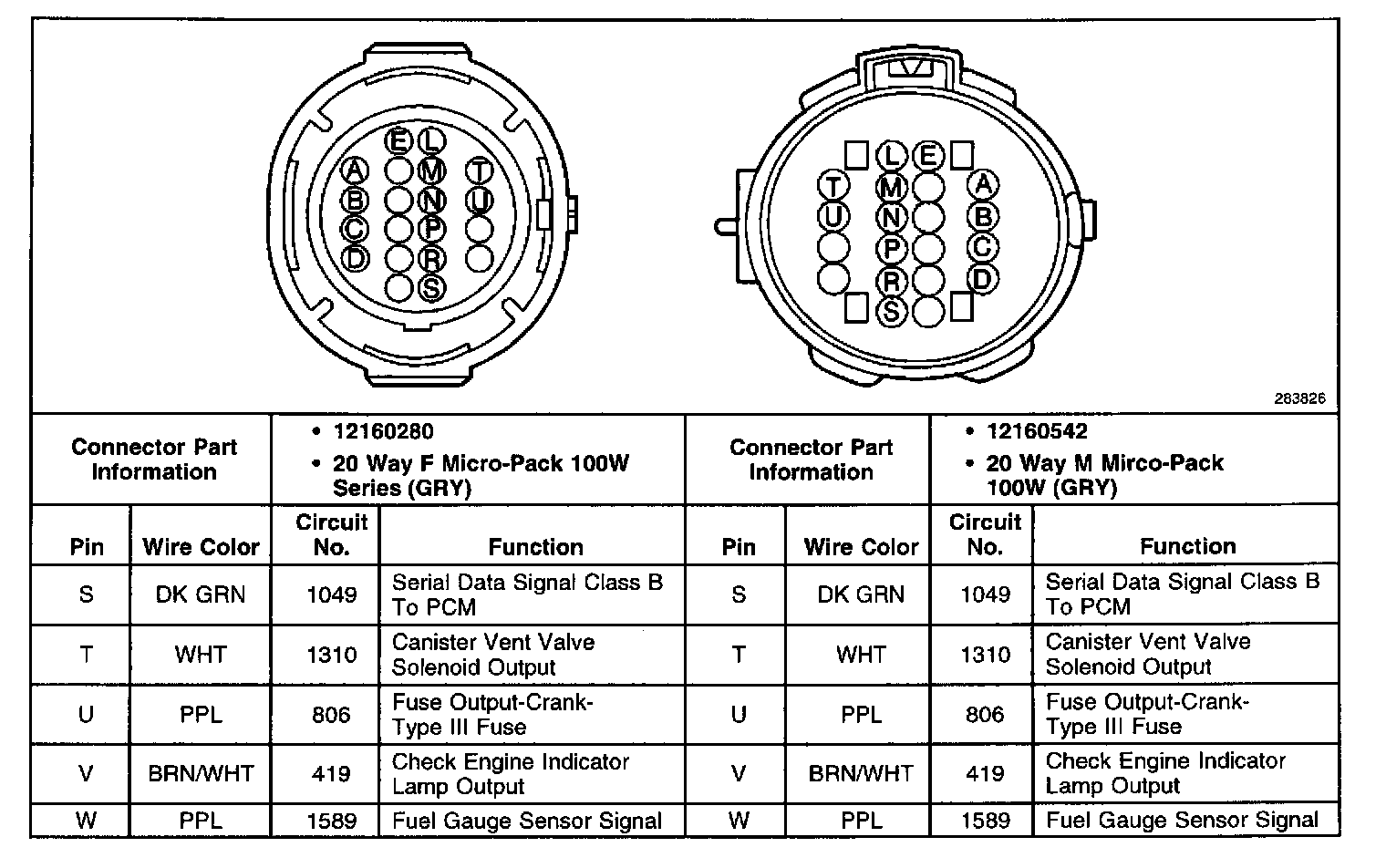

Inline Connector C101 (Part 2 Of 2):





RPO L36: For a Description of RPO Code(s) shown in this article refer to the RPO Code List found at Vehicle/Application and ID RPO Codes
