PARK LAMP
PARK LAMP

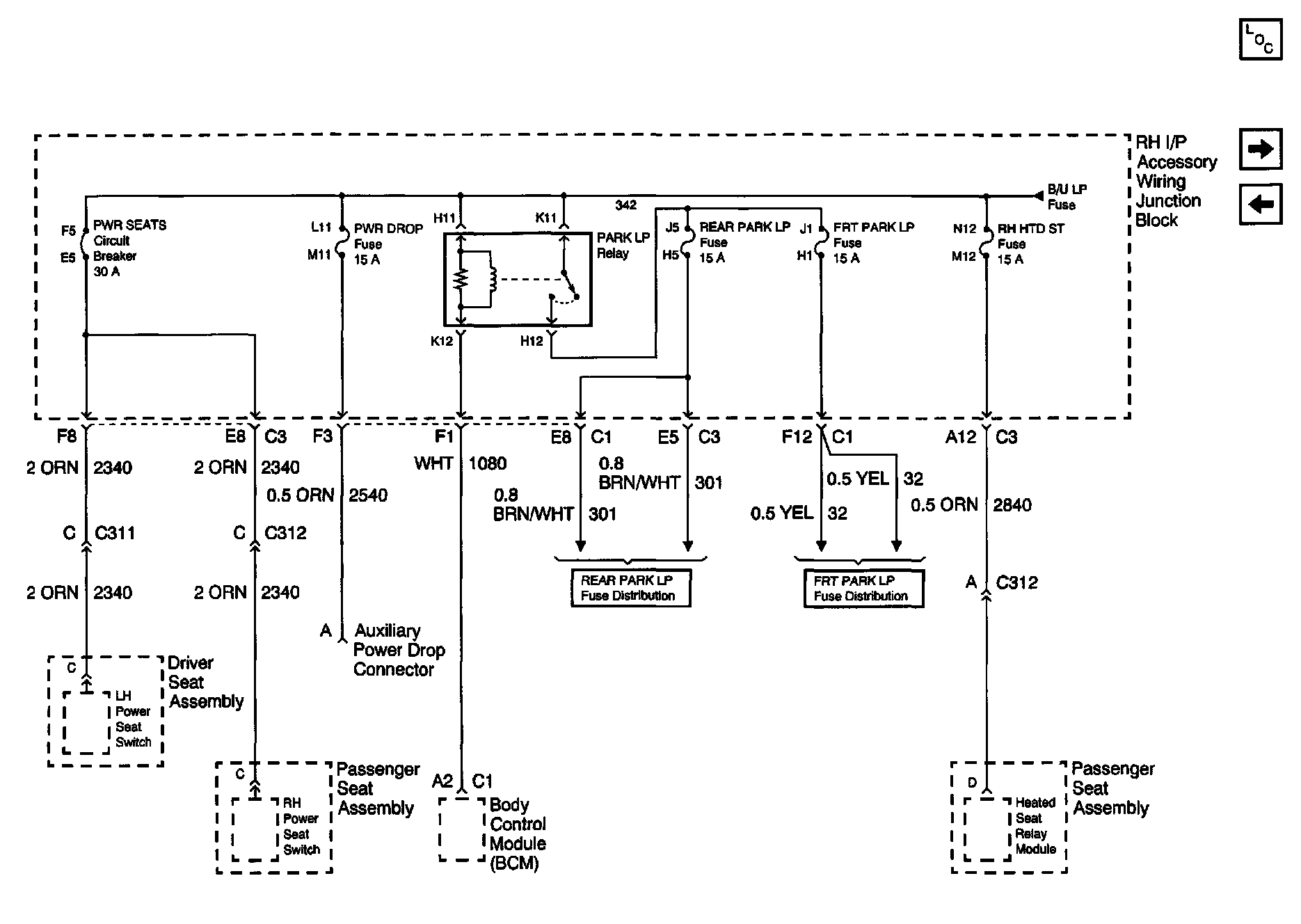

Power Distribution Schematics: PWR DROP, REAR PARK, FRT PARK LP And HTD ST Fuses, PWR SEATS Circuit Breaker, And PARK LP Relay:
