"I" Continuation

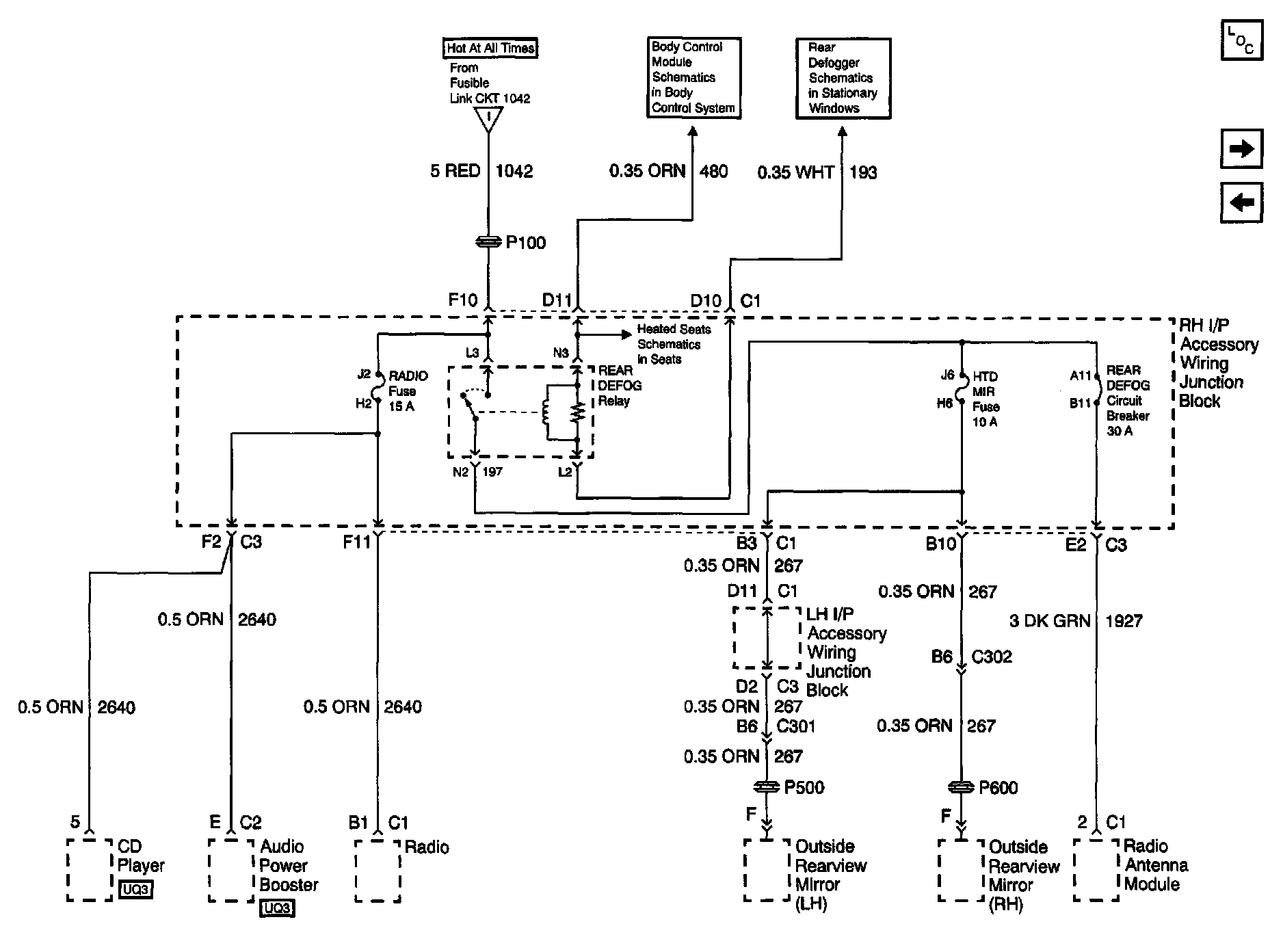

Power Distribution Schematics: RADIO And HTD MIR Fuses, REAR DEFOG Circuit Breaker And REAR DEFOG Relay:
